Replacing LED rear light
The LED rear light can be re-
placed only as a complete unit.
Consult a specialist workshop,
preferably an authorised
BMW Motorrad dealer.
Starting aid
ATTENTION
Excessive current flowing
when the motorcycle is
jump-started
Wiring smoulders/ignites or dam-
age to the on-board electronics
If the motorcycle has to be
jump-started connect the leads
to the battery terminals; never
attempt to jump-start the en-
gine by connecting leads to the
on-board socket.
ATTENTION
Contact between crocodile
clips of jump leads and
vehicle
Risk of short-circuit
Use jump leads fitted with fully
insulated crocodile clips at both
ends.
ATTENTION
Jump-starting with a voltage
greater than 12 V
Damage to the on-board elec-
tronics
Make sure that the battery of
the donor vehicle has a voltage
rating of 12 V.
Place the motorcycle on its
stand on firm, even ground.
Removing rear seat ( 52).
Removing front seat ( 52).

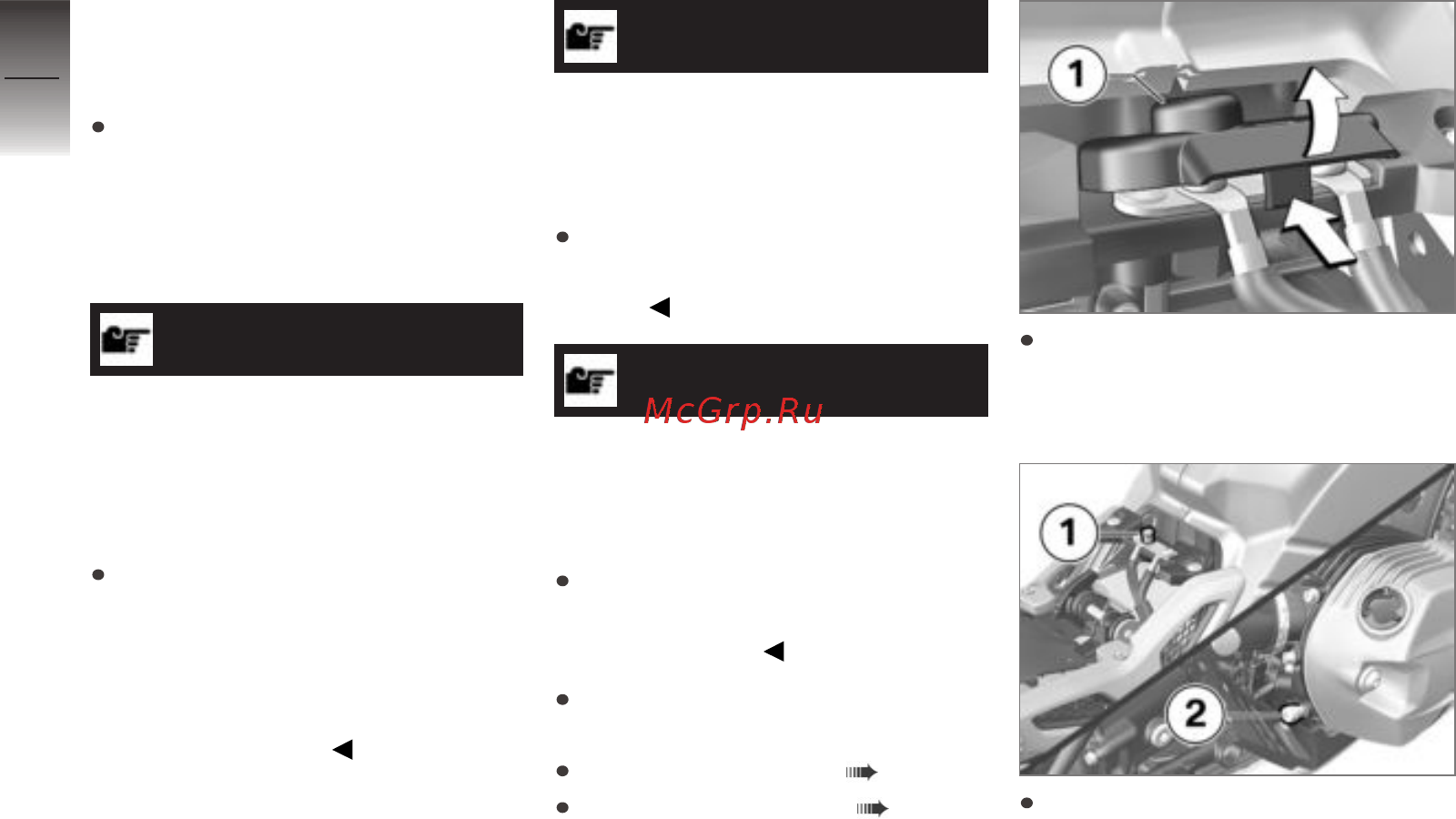

Unclip the cover 1 at the bot-
tom (arrow) and remove to-
wards the top.
In a first step, connect the pos-
itive battery connection point 1
to the positive terminal of the
8
112
z
Maintenance
