BMW R Nine T [110/186] Light source

WARNING

Deformation of the clamp

due to heavy impact on the

light housing

Risk of accidents due to inad-

equately secured reflector

Avoid all heavy impacts.

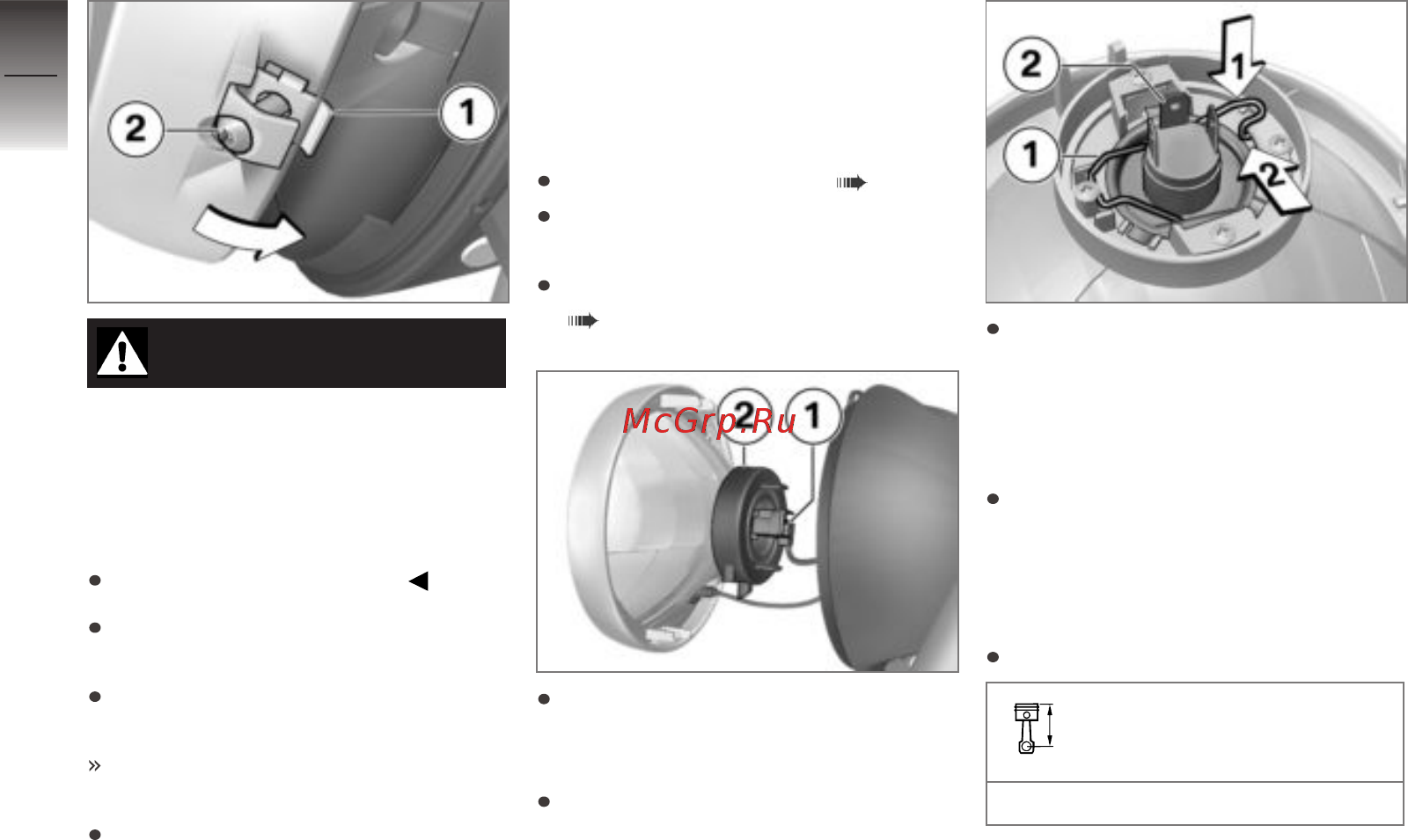

Push the screw 2 upwards us-

ing the screwdriver.

Swivel the light housing to-

wards the rear.

The clamp 1 engages with the

light housing.

Tighten screw 2.

Light source

Replacing bulbs for low-

beam and high-beam

headlight

Switching off ignition ( 35).

Place the motorcycle on its

stand on firm, even ground.

Removing the light housing

( 107).

Disconnect the connector 1 for

low-beam headlight and high

beam.

Pull off the rubber seal 2 from

the light housing.

Press the wire spring clip 1

towards the bottom, swivel it

away from the stop towards

the side and then fold the wire

spring clip towards the top.

Remove the light source 2 for

the low-beam headlight and

high beam from the light hous-

ing carefully.

Replace the defective bulb.

Bulb for low-beam and

high-beam headlight

H4 / 12 V / 60/55 W
