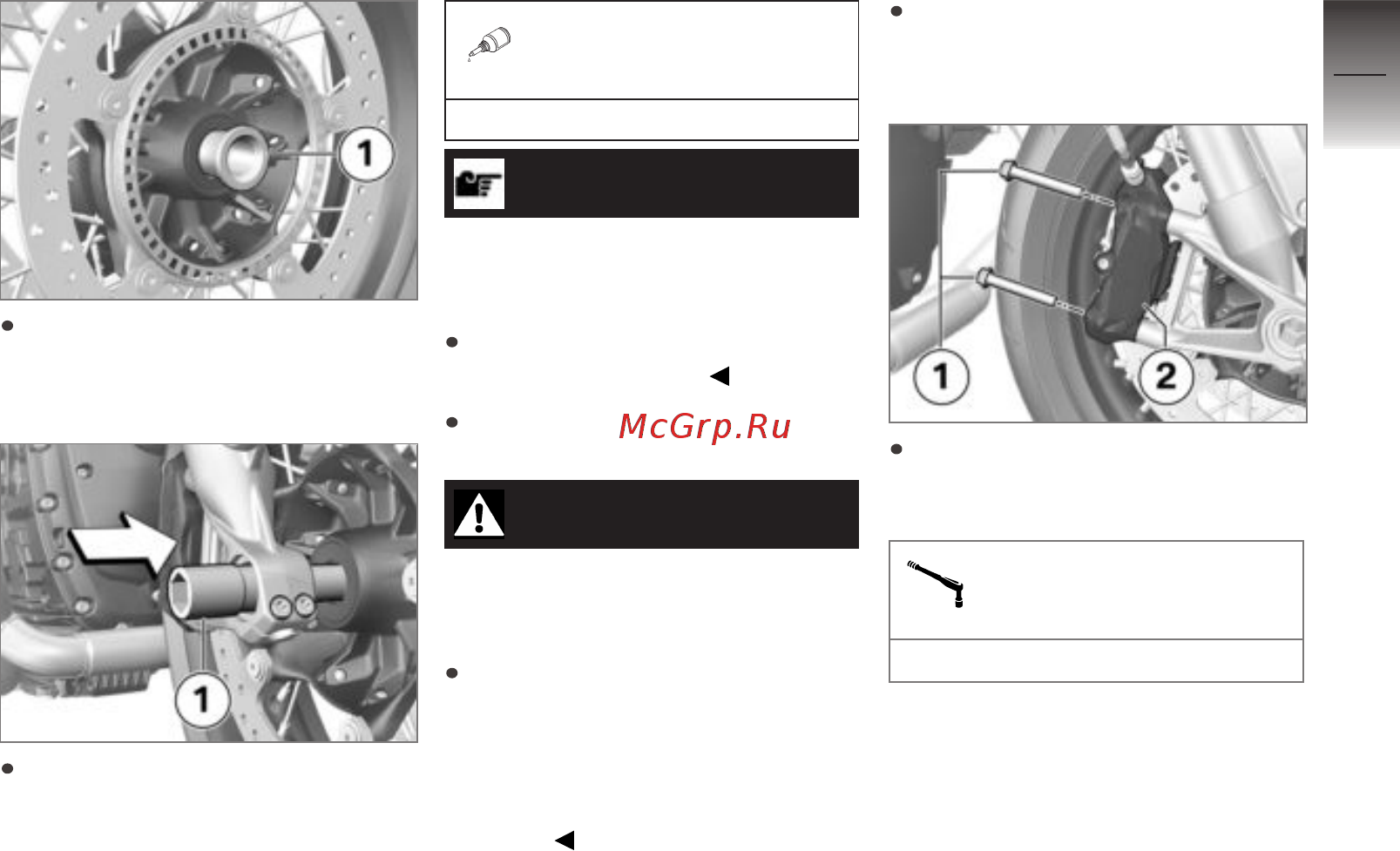

Slip spacing bushing 1 into
the wheel hub on the left-hand
side.
Lubricate the quick-release
axle 1.
Lubricant
Optimoly TA
ATTENTION
Front wheel installed wrong
way round
Risk of accident
Note direction-of-rotation ar-
rows on tyre or rim.
Roll the front wheel into posi-
tion between the front forks.
WARNING
Improper installation of the
quick-release axle
Loosening of the front wheel
After securing the brake cal-
ipers and relieving the front
forks, tighten the quick-re-
lease axle and the axle clamp-
ing to the specified tightening
torque.
Lift the front wheel, insert
the quick-release axle 1 and
loosely secure it.
Position the brake caliper 2
on the right and install the
screws 1.
Brake caliper on tele-
scopic fork
38 Nm
8
103
z
Maintenance
