Product Overview

Linksys EA-Series

EA2700/EA3500

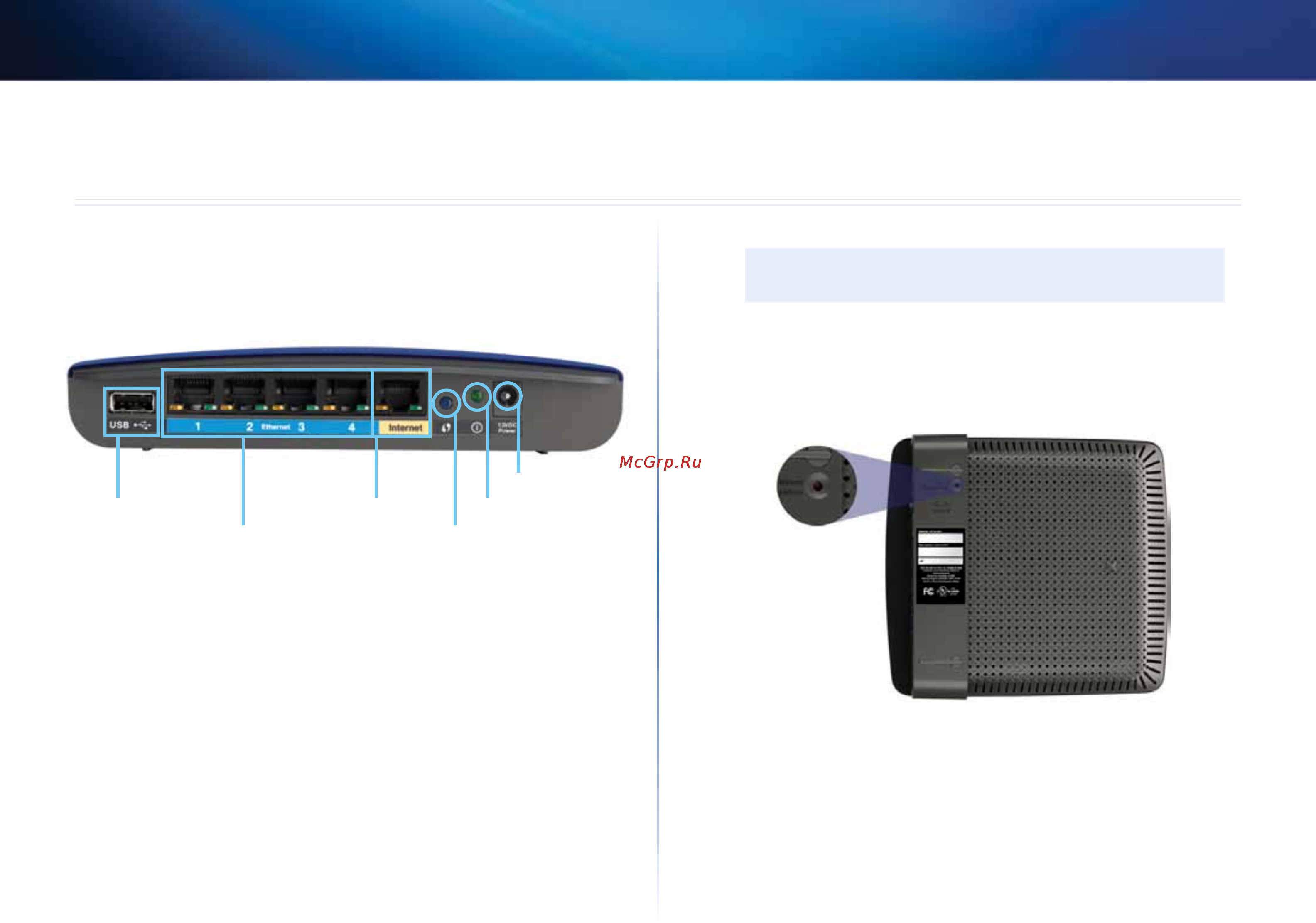

Back view

Ethernet ports Wi-Fi Protected Setup button

Internet port

Power port

Power indicatorUSB port (EA3500 only)

Your router’s appearance may vary

• USB port (EA3500 only)—To easily share disk storage with other users

on your network or on the Internet, connect a USB drive to this port.

• Ethernet ports—Connect Ethernet cables (also called network cables)

to these Gigabit (10/100/1000) ports, color coded blue, and to other

wired Ethernet network devices on your network.

• Internet port—Connect an Ethernet cable (also called a network or

Internet cable) to this port, color coded yellow, and to your modem.

• Wi-Fi Protected Setup™ button—Press this button to easily configure

wireless security on Wi-Fi Protected Setup-enabled network devices.

• Power indicator—Stays on steadily while power is connected and

following a successful Wi-Fi Protected Setup connection. Flashes slowly

during bootup, during firmware upgrades, and during a Wi-Fi Protected

Setup connection. Flashes quickly when there is a Wi-Fi Protected Setup

error.

• Power port—Connect the included AC power adapter to this port.

CAUTION

Use only the adapter that came with your router.

• Power button—Press | (on) to turn on the router.

Bottom view

Your router’s appearance may vary

• Reset button—Press and hold this button for 5-15 seconds (until the

port lights flash at the same time) to reset the router to its factory

defaults. You can also restore the defaults using Cisco Connect Cloud.
