1. Skid Shoes
2. Clean-Out Tool
3. Remote Discharge Chute Deflector
4. Belt Cover
5. Headlight
6. Auger
7. Auger Gearcase
8. Scraper Blade
9. Discharge Chute
10. Impeller
11. Chute Rod
12. Handlebar Hardware
13. Heated Handles
14. Drift Cutters
15. Differential Lock Knob (926056)
16. Height Adjuster Trigger (926056)

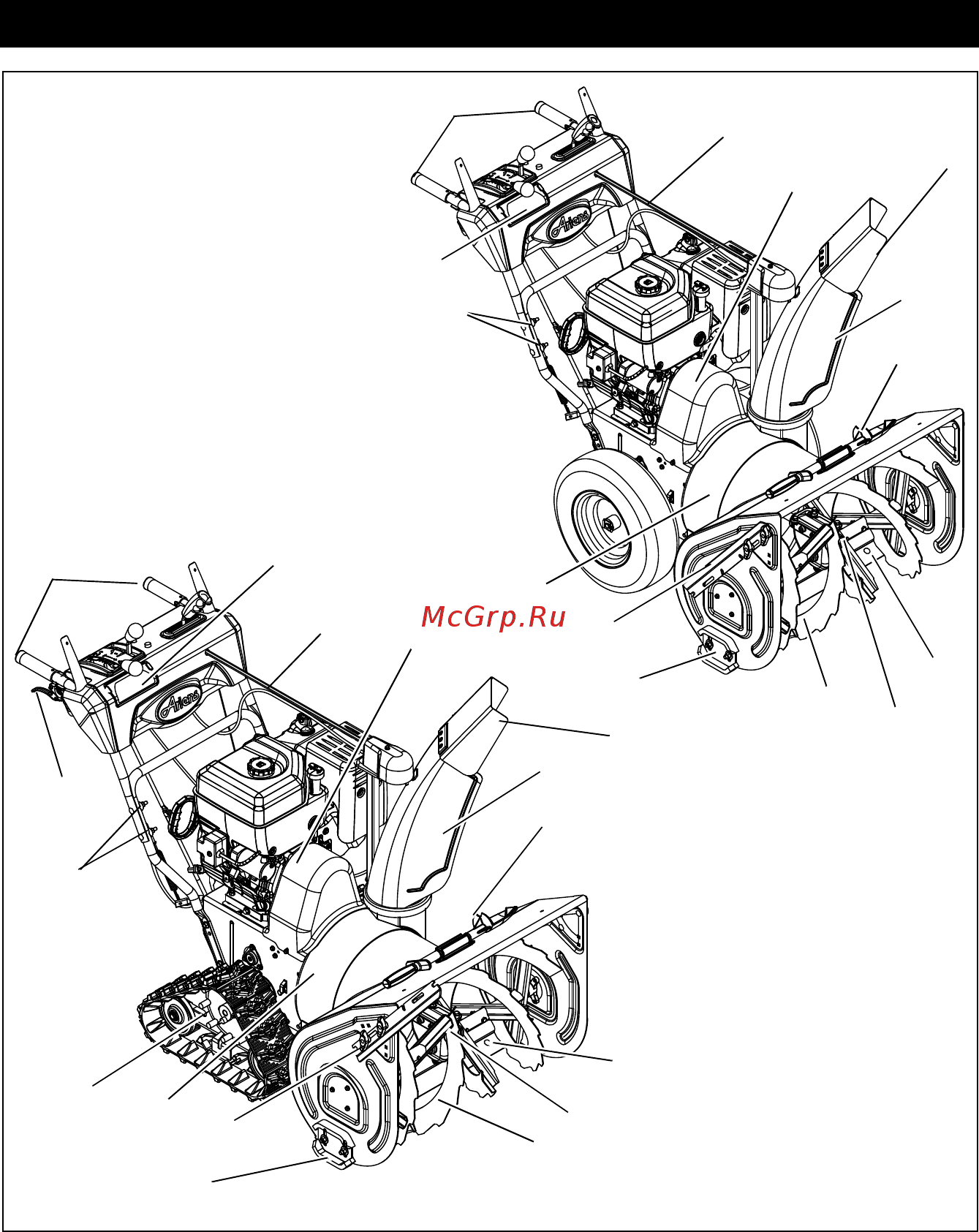

CONTROLS AND FEATURES
Figure 8
1
2
4
7
6
8
9
10
3
5
5
3
11
1
4
7
6
8
9
10
11
2
14
14
12
13
13
15
16
12
