Check Attachment Brake
(Figure 28)
1. With the clutch lever disengaged, brake
pad must contact attachment belts. With
clutch lever engaged, brake pad must be
more than 1/16" (1.6 mm) from belts. If
there is more than 1/16" (1.6 mm) gap,
go to Check Belt Finger Clearance on
page 27. If there is less than 1/16"
(1.6 mm) gap, go to step 2.
2. If there is less than 1/16" (1.6 mm) gap
between brake pad and belt, loosen idler
adjustment nut, and move idler away
from belt.
3. Position idler to achieve a 1/16"
(1.6 mm) minimum brake pad gap and a
1/2 – 7/8" (12.7 – 22.2 mm) gap
between the plastic roller and the frame.
IMPORTANT: If adjustments cannot be
brought into specified ranges see your Dealer
for repairs.
Check Belt Finger Clearance
(Figure 29)
1. With clutch lever engaged, the belt
finger located opposite the belt idler
must be less than 1/8" (3 mm) from
belts, but not touching the belts.
To adjust belt finger, loosen the bolts and
move the finger to the proper position.
Tighten the bolts and recheck the belt
finger clearance.
2. Replace the belt cover and tighten
hardware.
TRACTION DRIVE CLUTCH
ADJUSTMENT
1. Loosen jam nut on traction cable
adjustment barrel. Turn adjustment
barrel down to shorten cable and
remove all cable slack.
ATTACHMENT DRIVE BELTS
REPLACEMENT
(Figure 30)
Remove old attachment drive belts
1. Shut off engine, remove key, disconnect
spark plug wire and allow unit to cool
completely.
2. Loosen hardware securing belt cover to
unit (Figure 30).
NOTE: Do NOT completely remove the
hardware from unit.
3. Remove belt cover.
4. Remove chute gear cover.
5. Remove hair pin in front of chute gear
assembly and slide the discharge chute
rod rearward.
IMPORTANT: Disconnect chute lock cable
and deflector cable.
6. Remove belt finger (Figure 29).
IMPORTANT: Use care when rotating the belt
fingers. DO NOT bend belt fingers out of
shape.

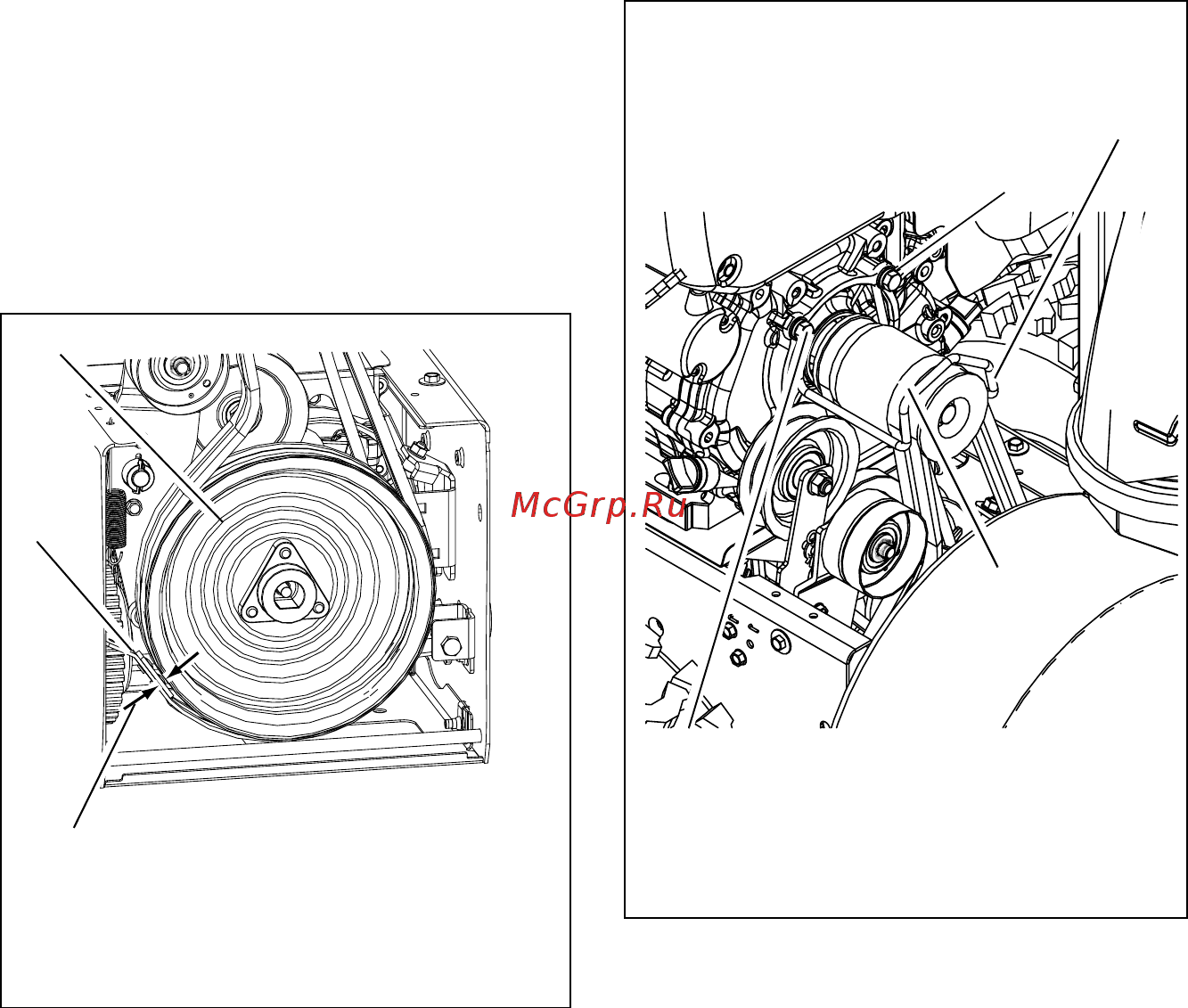

Figure 28
OS7201
Minimum of 1/16" (1.6 mm).
1. Brake Shoe and Pad
2. Attachment Pulley
1
2
Figure 29
Check belt finger clearance here. With the
attachment clutch engaged, there should
be less than 1/8" (3 mm) clearance
between the belts and the belt finger. The
belt finger should not touch the belts.
1. Mounting Hardware
2. Belt Finger
1
1
2
