EN - 16
IMPORTANT: Before starting or operating
ensure that the bypass rod is pushed fully
into the machine. Failure to close the bypass
rod may result in damage to the transmission.
Heated Handles
Turn the heated handles
switch to the ON (1)
position to activate. Turn
the switch to the OFF (2)
position to deactivate.
Scraper Blade
The scraper blade allows better contact with
the surface being cleared. It also prevents
damage to the housing from normal usage.
IMPORTANT: DO NOT allow scraper blade to
wear too far or auger/impeller housing will
become damaged.
Skid Shoes
The skid shoes control the distance between
the scraper blade and the ground. Adjust skid
shoes equally to keep blade level with the
ground. Refer to Pre-Start on page 18 for
recommended settings.
Drift Cutters
(Figure 14)
Drift cutters break up snow drifts that are
taller than the auger housing and direct the
snow into the auger. Store the drift cutters on
the auger housing when not in use. Install
them as shown below so they are taller than
the snow to be cleared.
Track Angle
(926056)
(Figure 15)
The track angle can be adjusted to position
the auger housing for level clearing, deep
cutting or transport.
Squeeze the handlebar trigger and press
down on the handlebars to move the auger
housing into an up position. Release the
trigger to hold the position.
Lift up on the handlebars and squeeze and
release the handlebar trigger to move the
auger housing into a down position.

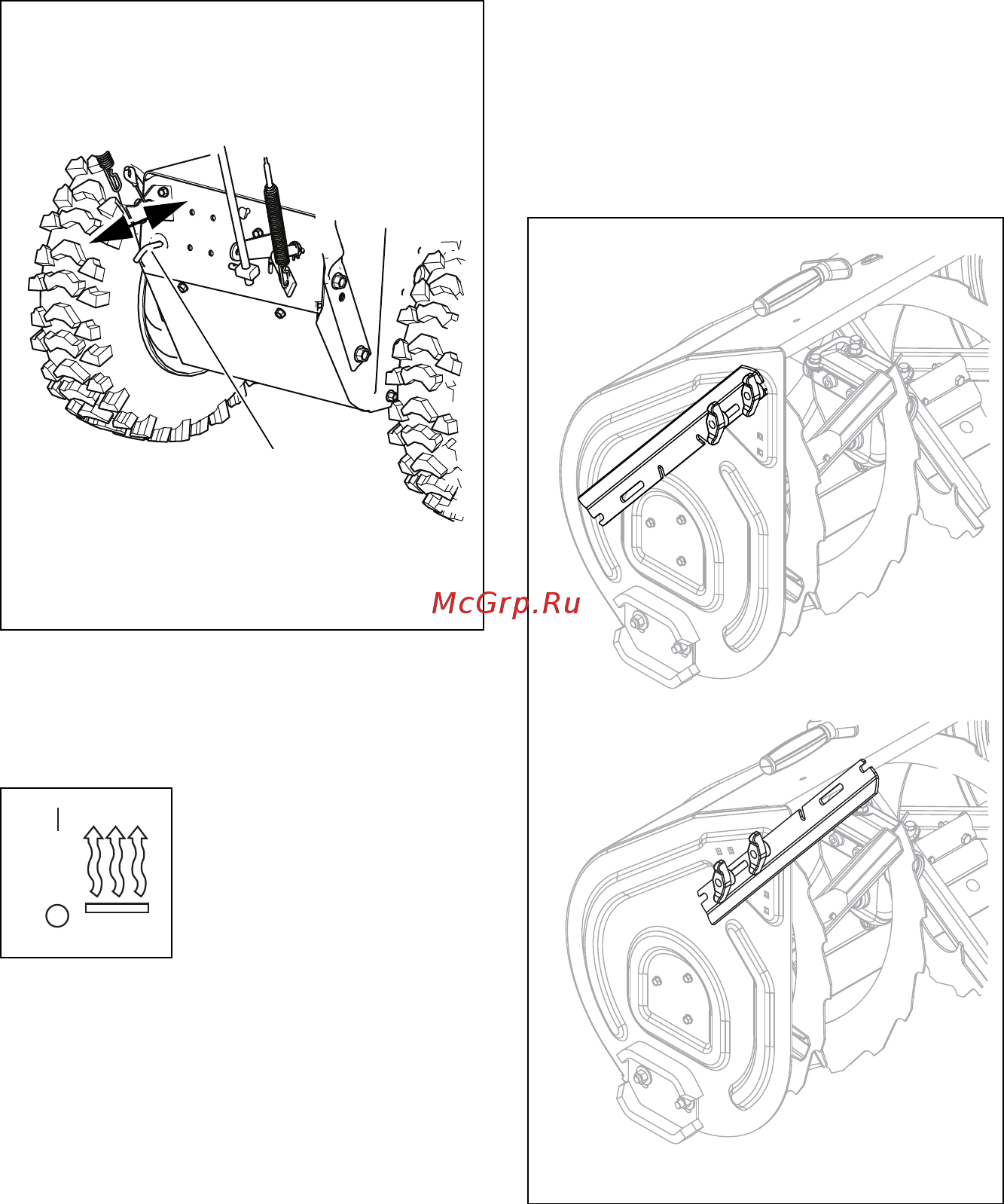

Figure 13
1. Transmission Bypass Rod
Pull bypass rod out to move unit short
distances with engine stopped. Push
bypass rod in before starting or operating
engine.
1
OS1950
1
2
Figure 14
OS7110
Stored Position
Operating Position
