GB-4
DIGITAL SATELLITE RECEIVER
GB-5
GB
CONNECTING YOUR “STB”
7. INSERTING SMARTCARDS FOR VIACCESS SERVICES
In order to view a scrambled service, you need to have a valid Smartcard.
This STB has the Viaccess embedded to view Viaccess programmes.
NNoottee
:
Insert the Smartcard with the gold coloured chip facing downwards.
You can set the various media settings you want.
Place the cursor on this sub menu (System Setup ➔ media setting menu) and press OK.
● Press the
/
keys to move the sub items and press the
/
keys to select the option.
● Press the OK key to confirm.
● Press the MENU/EXIT keys to exit the menu.
● Select the TV system : PAL, SECAM, NTSC, PAL ➔ (auto) NTSC, SECAM ➔
(auto) NTSC, NTSC ➔ (auto) PAL, NTSC ➔ (auto) SECAM
● Select the TV type according to your TV: STANDARD 4: 3 ratio or WIDE SCREEN 16 : 9 ratio type.
● Select the aspect ratio conversion : Letter Box, Pan & Scan, Mixed or Full.
● Select the Video Signal Type : Composite, Composite + RGB or Composite + YUV.
● Select the RF Channel : Ch 21~Ch 69
● Select Broadcasting System : B/G, I or D/K
1. LOCATION OF THE RECEIVER
Your
STB
should be placed under proper ventilation.
Don’t put in completely enclosed cabinet that will restrict the flow of air,
resulting in overheating.
The location should be safeguarded from direct sunlight, excess moisture,
rough handling or household pets.
Avoid stacking other electronic components on the top of the receiver.
The location should be safely accessible by the cable from your antenna system.
2. CONNECTING THE RECEIVER WITH DISH SYSTEM
After installing your antenna system, connect the coaxial cable from the LNB
of your antenna to “DISH INPUT” terminal marked at the rear of the
STB
.
All cable connectors should be finger tightened; do not use any kind of wrench
while tightening connectors. The cable should be 75ohm impedance coaxial
twisted at the end with an “F” type connector.
3. CONNECTING THE RECEIVER TO TV
To connect the receiver with your television, you can use Scart Cable.
In the case of connecting your TV through SCART cable, connect the SCART
connector marked TV to the respective SCART port on the TV.
4. CONNECTING YOUR ANALOG RECEIVER
To facilitate the user using analog receiver to view analog channels,
STB
has
been provided with a loop through terminal marked as “
LOOP
”.
Connect the coaxial cable from this terminal to the IF input terminal of your analog
receiver. Now by keeping the
STB
in standby, you will be able to tune and view
analog channels from your analog receiver.
5. CONNECTING YOUR VCR
To connect a VCR or DVD player, the STB has been provided with SCART at the
rear marked “AV2 (EXT)”.
Using a SCART connector, the VCR or DVD player can be connected to the receiver.
NNoottee :
This is supported by standby.
6. CONNECTING DIGITAL AUDIO SYSTEM
Connect a fiber optic cable between DIGITAL AUDIO OUT on the receiver and
Optical SPDIF on the Digital Audio System.

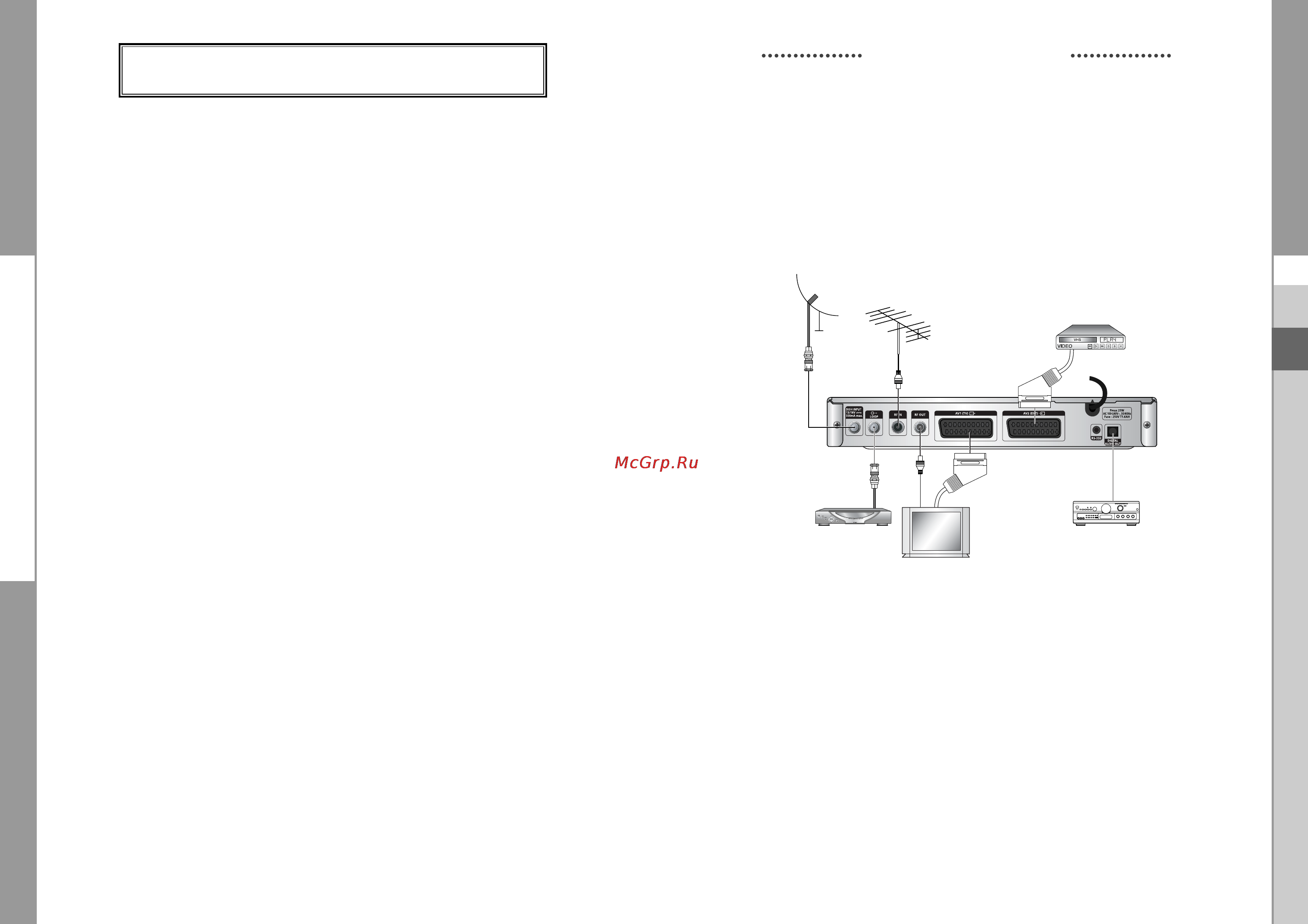

Connecting Figure
CONNECTING YOUR "STB"
MF68-00331A_GB 6/16/04 1:11 PM Page 4
