Set the door into place in its open position rst from the upper

end and hold the door against the upper hinge plate.

Press the lower edge hinge plate downwards by its free end

while positioning the door’s lower hinge bolt in the hinge plate’s

hole. Place the slide washer back between the hinge plate and

the door’s lower edge next to the door’s axis.

Put the hinge plate into its place and fasten the attachment

screw you took o at the start (picture 2.7./3.). Do not close

the door.

Reversing the handle on a KO-20 door

Detach attachment screw (2) on the edge of the door.1.

Pull o the handle (1).2.

Turn handle by 180 degrees and set it back into its place.3.

Tighten attachment screw.4.

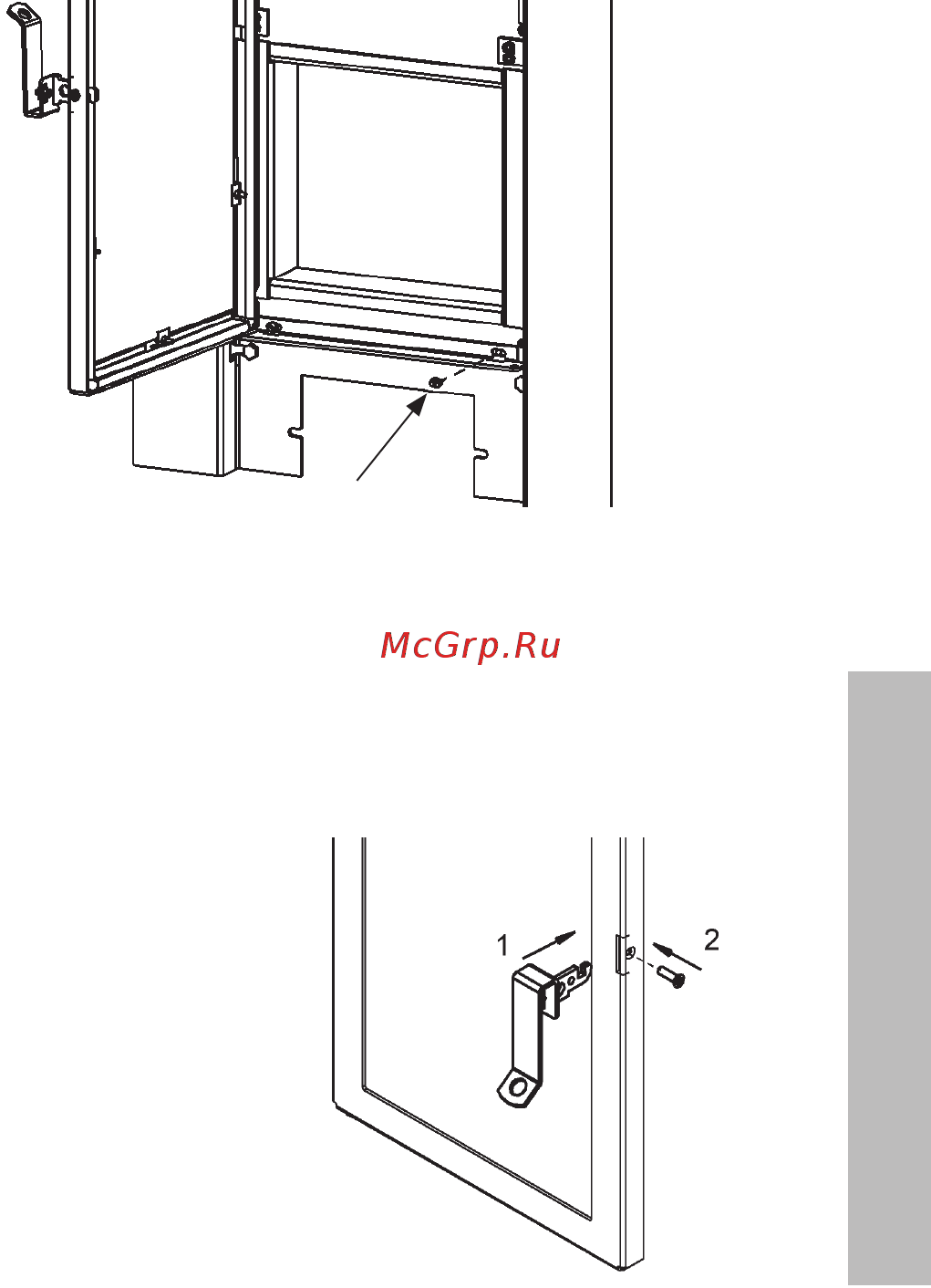

Picture 2.7./3. Changing the door’s opening direction on the KO-20.

Picture 2.7./4. Reversing the handle.

1. Handle

2. Attachment screw
