Before making connections, make sure that the amplifier is switched off.

■ Connections

Connect one speaker to the left (marked L) terminals of your amplifier or receiver, and another speaker to the right

(marked R) terminals. Please refer to the owner’s manual that came with your amplifier or receiver.

• Make sure you connect the speakers with the correct polarity—positive (+) terminals to positive (+) terminals,

and negative (–) terminals to negative (–) terminals. If you get them crossed over, the sound will be unnatural and

lack bass.

• In your AV receiver’s speaker size settings, specify small (or “S”) for all of the speakers.

• The speaker may be damaged if certain sounds are continuously output at high volume level. For example, if sine

waves from a test disc, bass sounds from electronic instruments, etc., are continuously output, or when the stylus

of a turntable touches the surface of a disc, reduce the volume level to prevent the speaker from being damaged.

• Once you have connected all of the speakers, plug the amplifier and other AV components into suitable AC wall

outlets.

• When using an amplifier with a rated output power higher than the nominal input power of the speaker, care

should be taken never to exceed the speaker’s maximum input.

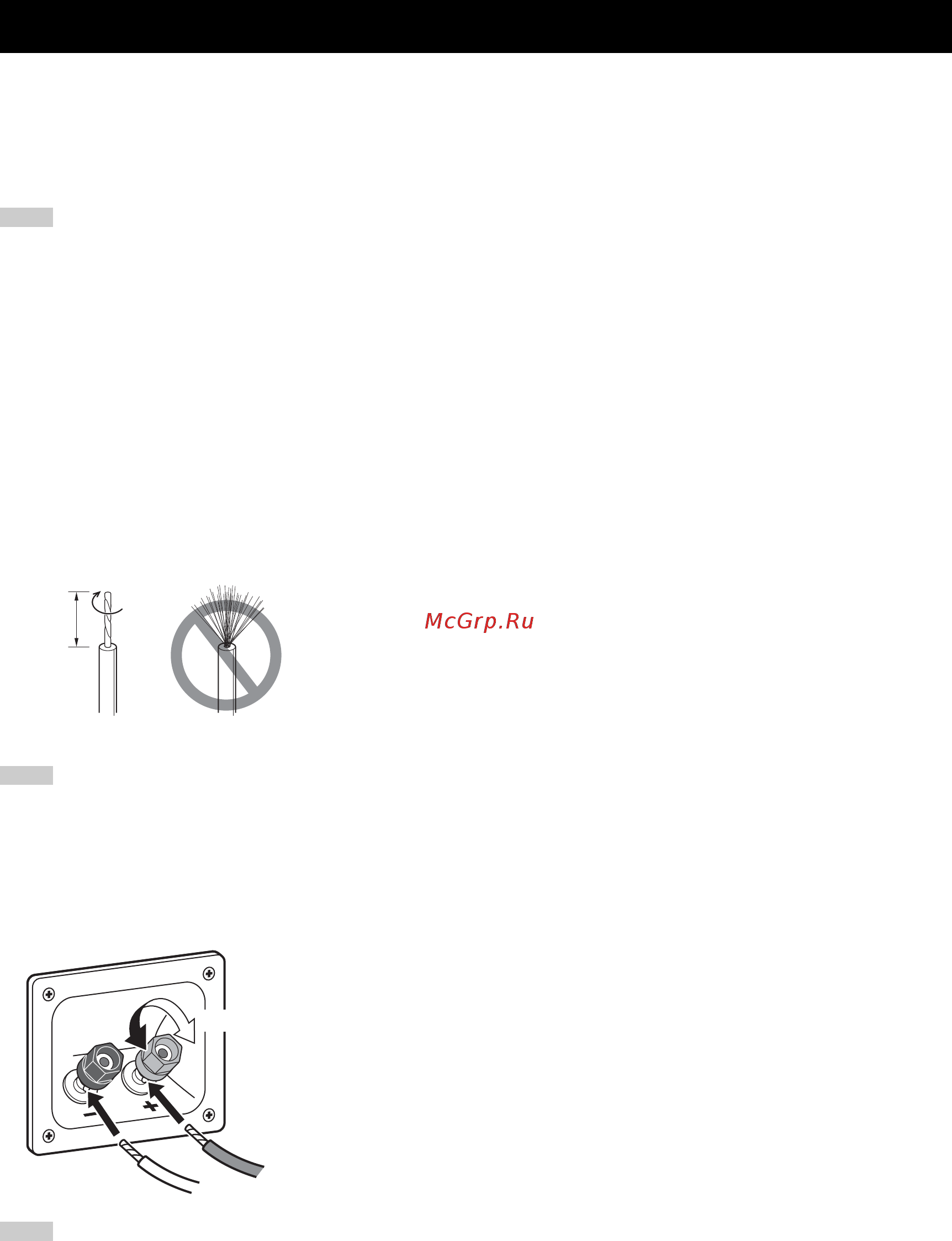

■ Preparing the speaker cables

1 Remove about 15mm (5/8") of insulation from the end of each

speaker cable.

2 Twist the bare wires tightly.

• Do not bundle or roll up excess cable.

• Twist the bare wires tightly so the individual strands are not splayed.

• Be careful not to injure yourself while preparing the speaker cables.

■ Operating the speaker terminals

1 Rotate the speaker terminal counterclockwise to loosen it.

2 Insert the bare wire.

3 Rotate the speaker terminal clockwise to tighten it.

Test the security of the connection by pulling gently on the

cable.

• Make sure the terminal is gripping the bare wire, not the insulation.

• Make sure the bare wires do not touch each other, as this could damage the speaker or amplifier.

• If the connections are faulty, you will hear no sound from the speakers.
