Twists and bends on the aluminum pipe may cause minimizing the air suction

so avoid unnecessary bends and twists as much as possible. (Figure 7-8)

Place the inner duct and outer duct carefully on the product. Fix the inner

duct to inner duct connection plate with 2 screws. (Figure 9)

5. FUNCTIONS OF THE CHIMNEY HOOD

5.1. Control Panel

Digital Control: Touch the symbols on the keys. (On/Off function and timer

are on the same key; if pressed for 1 sec on-off function will operate.If

pressed for 3 sec. 15 minutes timer will operate.

Touch Control: Touch the symbols on the glass surface. If Press a symbol

longer (more 3 sec) may operate various functions.

5.2. Symbols Functions

Note: When the product operates for a certain time, the aluminum lters

get dirty and the digital display shows “C” Clean sign. This means the

lters should be cleaned. Press the speed reduction key for 5 secs in

order to delete “C” sign from the display.

CAUTİON: When the timer key is pressed for 3 secs digital display starts

to change.Air-circulation system of the chimney hood becomes active.

The chimney hood runs for 10 minutes in the lowest speed. Then the

system automatically shuts down.

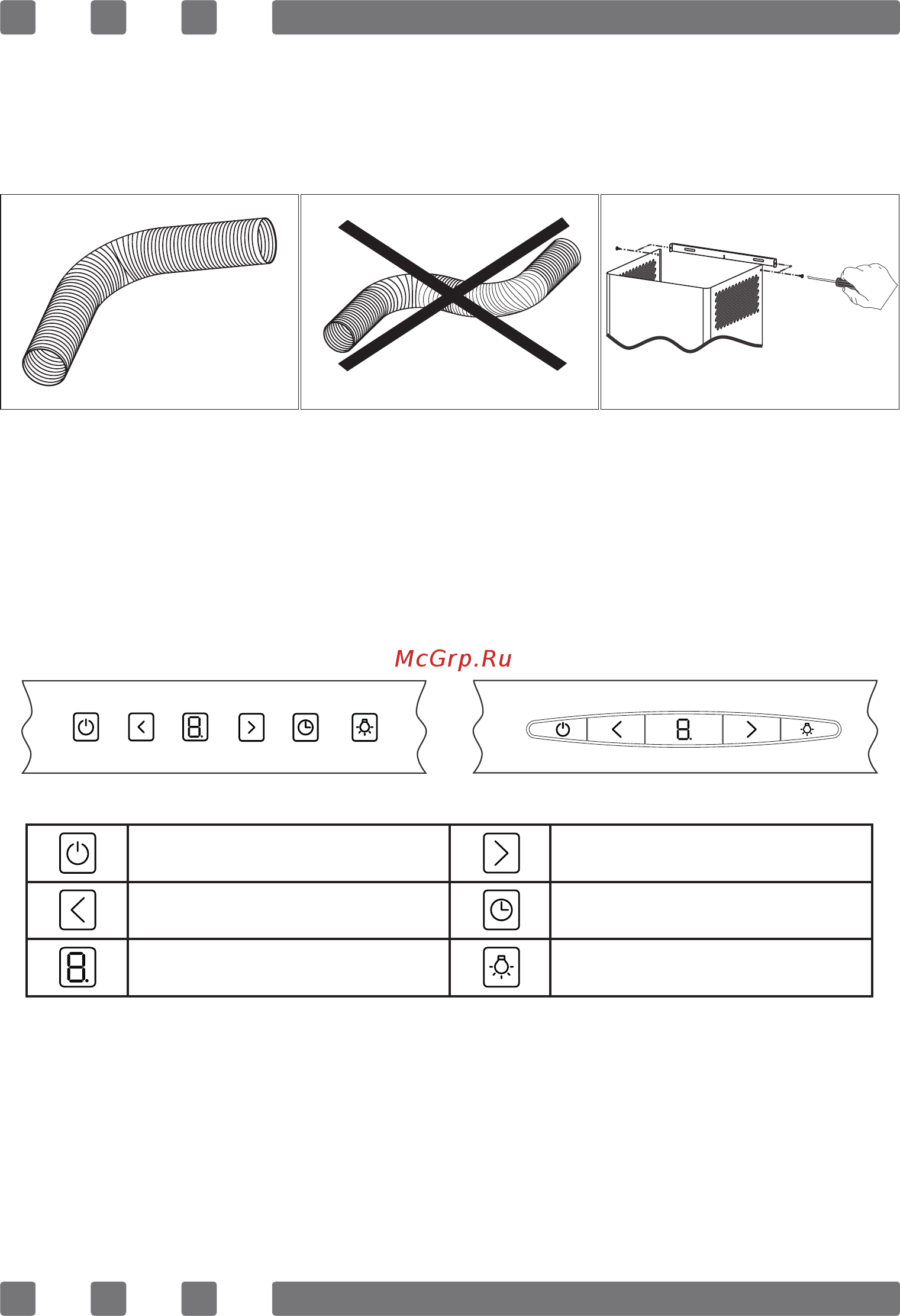

Figure 7 Figure 8 Figure 9

Switches on and off the motor.

(Except for the lighting)

Increases the speed when the motor

is running.

Decreases the speed when the motor

is running.

If pressed this symbol, the motor

turns itself off 15 minutes later.

Display

Only switches on and off the lighting

system.
