3.4. Installation Of Inner Duct Mounting Bracket
2 xing holes are drilled on the wall with Ø 6 mm electric drill at a
suitable height and place to x the inner duct hanger plate onto the wall.
6mm drywall anchors are nailed into those holes and inner duct mounting
brackrets are pinned down.At the last step of chimney hood installation,
the inner duct is screwed on the inner duct mounting brackets.
4. MOUNTING THE CHIMNEY HOOD ON THE WALL

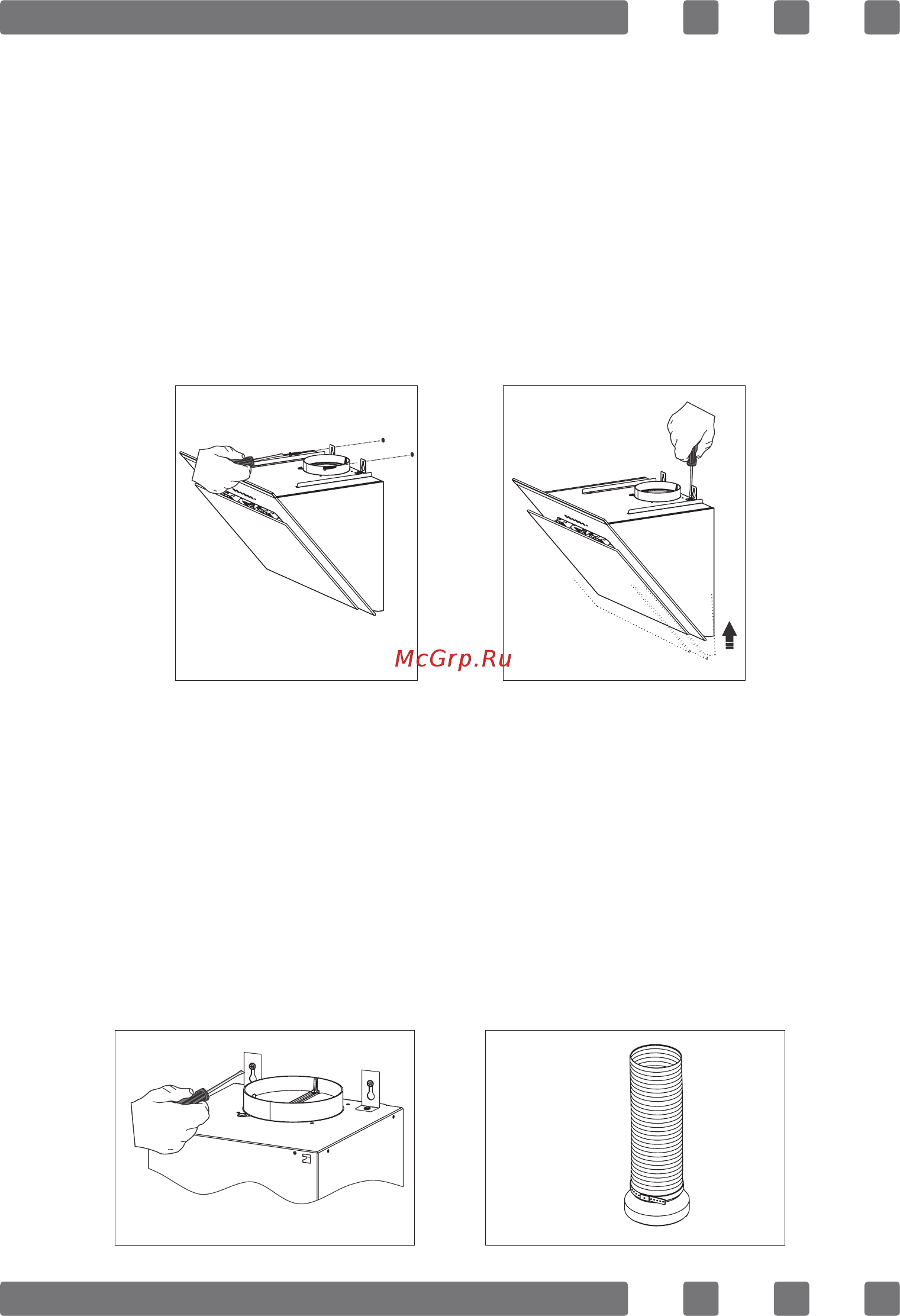

Lift the chimney hood body and x the hanger plates onto the wall
anchors as shown in Figure 3.
4.1. Leveling The Chimney Hood
If the chimney hood is inclined on one side, the chimney hood
can be leveled with the adjustment screws as shown in Figure 4.
Once the balancing is complete, the screws shown in Figure 5 must be
xed tightly. After this, x the body with one screw through the hole on
the body.
4.2. Mounting The Aluminum Pipe
Place the aluminum pipe on the plastic duct. Place the other end of the
pipe into the air outlet in the kitchen. (Figure 6)
