53 & 54 Series II
Users Manual
6
Display Elements
xx
1
12
11
2
3
4
5
7
6
8
9
10
aat02f.eps

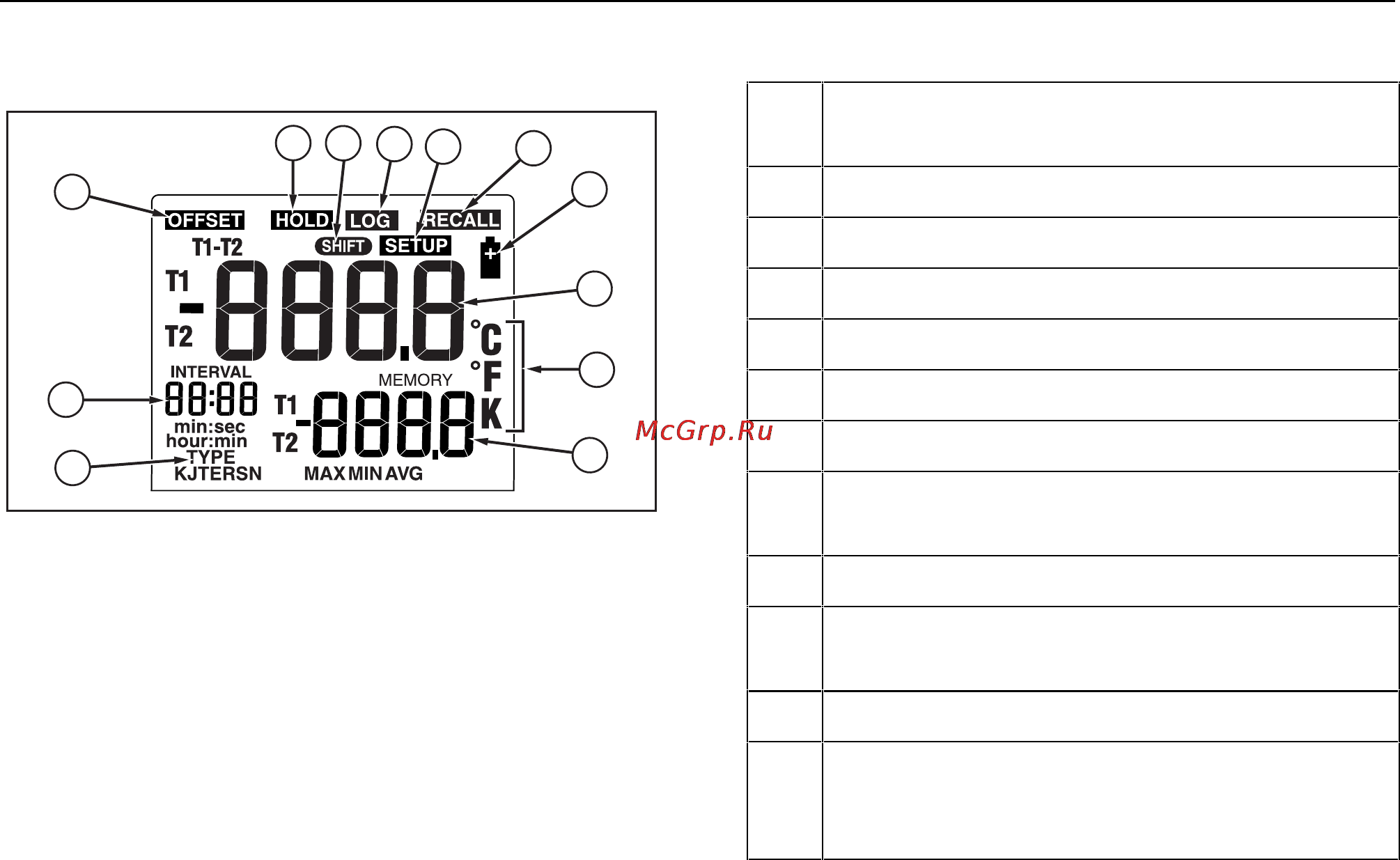

Figure 2. Display Elements
Table 4. Display Elements
A The thermocouple measurement includes an
offset. See "Changing Setup Options."
B The displayed readings do not change.
C A shift function is in progress.
D Readings are being logged.
E Setup is in progress.
F Logged readings are displayed.
G Low battery. Replace the batteries.
H Primary Display.
Model 53:
T1 reading.
Model 54:
T1, T2, or T1-T2 reading.
I The temperature units.
J Secondary Display: MAX, MIN, AVG, MEMORY,
or offset.
Model 54:
T1 or T2 reading.
K The thermocouple type.
L Time Display: 24-hour clock. Shows the
INTERVAL length in SETUP. Shows elapsed time
when AVG is on or before clock has been set.
