Fluke 576 [20/33] Display
![Fluke 576 [20/33] Display](/views2/1005391/page20/bg14.png)
20
576
Display

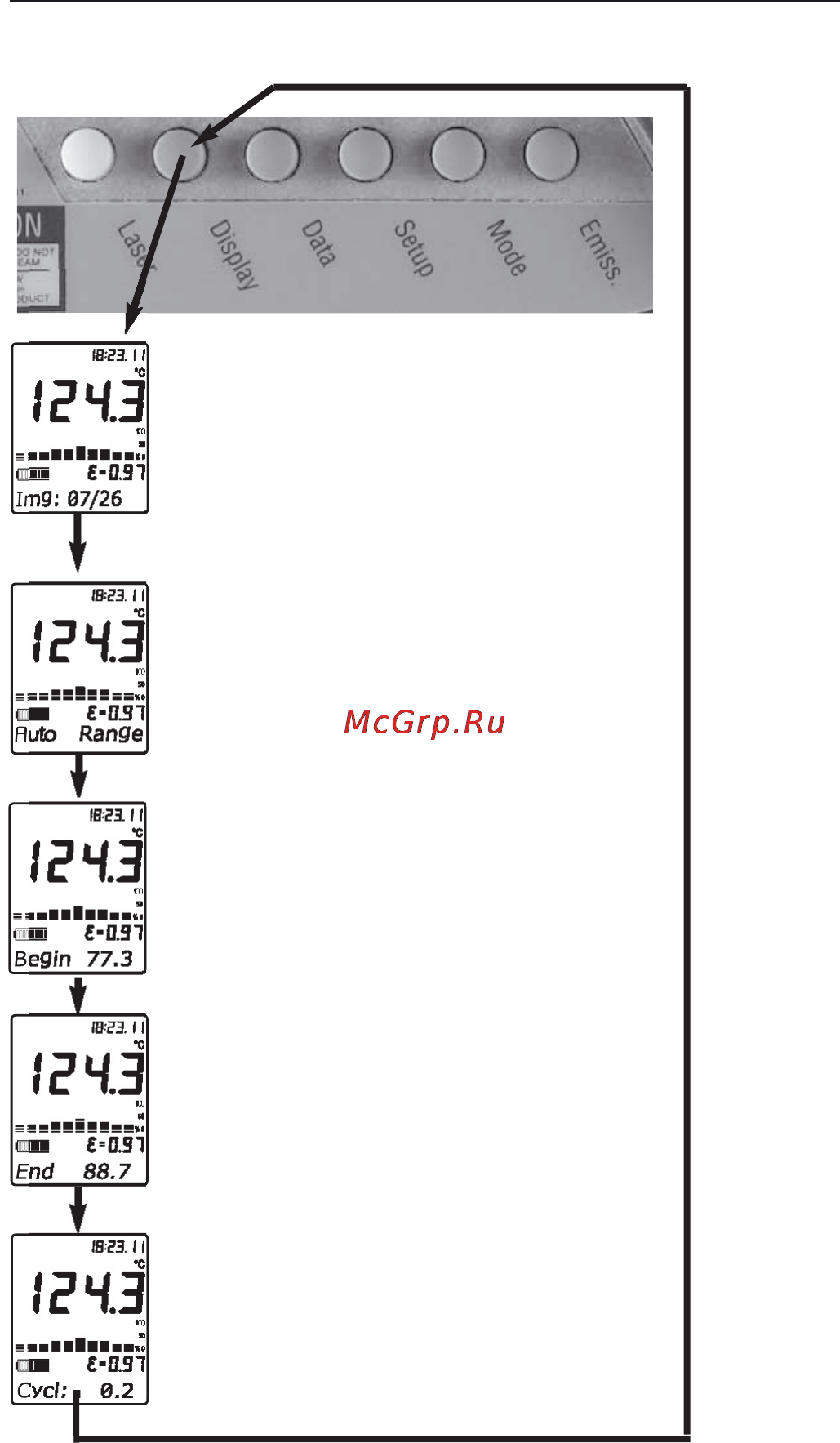

The last ten measurements are
shown in the bar graph on the
unit’s display. Auto Range of the
bar graph is automatically defined
by
the measured maximum and
minimum value. Manual Range
(Man Range) is user defined.
CYCLE allows the adjustment of
the display interval of the bar
gr
aph.
Press Display once to see how
many photos are already taken.
the total numbers of photos possi-
b
le is displayed after the slash.
This sets up the BEGIN value for
the graphic display of the bar
gr
aph. The graphic display shows
the temperature as a picture.
This sets up the END value for the
gr
aphic display of the bar graph.
