Your Life, our Quality. Worldwide. Residential
The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.
JES - JE
SELF-PRIMING ELECTRIC PUMPS
in AISI 304
JES ELECTRIC DATA TABLE
Model P
2
Capacitor P
1
Absorbed Current
Single phase Three phase Single phase [A]
230V 230/400V [HP] [kW] µF V
c
Single phase Three phase Single phase Three phase
[kW] [kW] 230V 230V 400V
JESM 5 JES 5 0,5 0,37 10 450 0,44 0,43 2,1 1,5 0,85
JESM 6 JES 6 0,6 0,44 10 450 0,54 0,49 2,4 1,9 1,1
JESM 8 JES 8 0,8 0,6 12,5 450 0,63 0,58 3,0 2,25 1,3
M
ATERIALS TABLE
R
ef.
N
ame
M
aterial
R
ef.
N
ame
M
aterial
1 Pump body AISI 304 21 Adjusting ring Steel C70
3 Motor support AISI 304 22 Tie-rod Galvanised Fe 42
4 Seal housing disc AISI 304 23 Capacitor [2] -
6 Rotor shaft AISI 303 (part in contact with the liquid) 24 Filler cap PA6
7 Impeller PPE+PS reinforced with fibreglass 25 Drain plug PA6
9 Venturi Unit + nozzle PPE+PS reinforced with fibreglass 26 O-Ring NBR
11 Mechanical seal Carbon/Ceramic/NBR 28 O-Ring NBR
12 Motor case - 30 Mechanical seal spacer Brass
13 Motor cover Aluminium 31 Disc/seal spacer AISI 304
14 Fan PA6 34 Impeller nut [1] AISI 304
15 Fan cover Galvanised Fe P04 36 Motor casing AISI 304
16 Terminal box - 56 Terminal box cover gasket NBR
17 Terminal box cover PA66 reinforced with fibreglass 58 Cable gland -
18 Spray protector washer NBR 77 O-Ring NBR
19 Bearing (pump side) - 78 O-Ring NBR
20 Bearing (motor side) - 200 Screw (Pump body) A2 UNI7323 stainless steel
[
1]= For three phase only
[2]= For single phase only

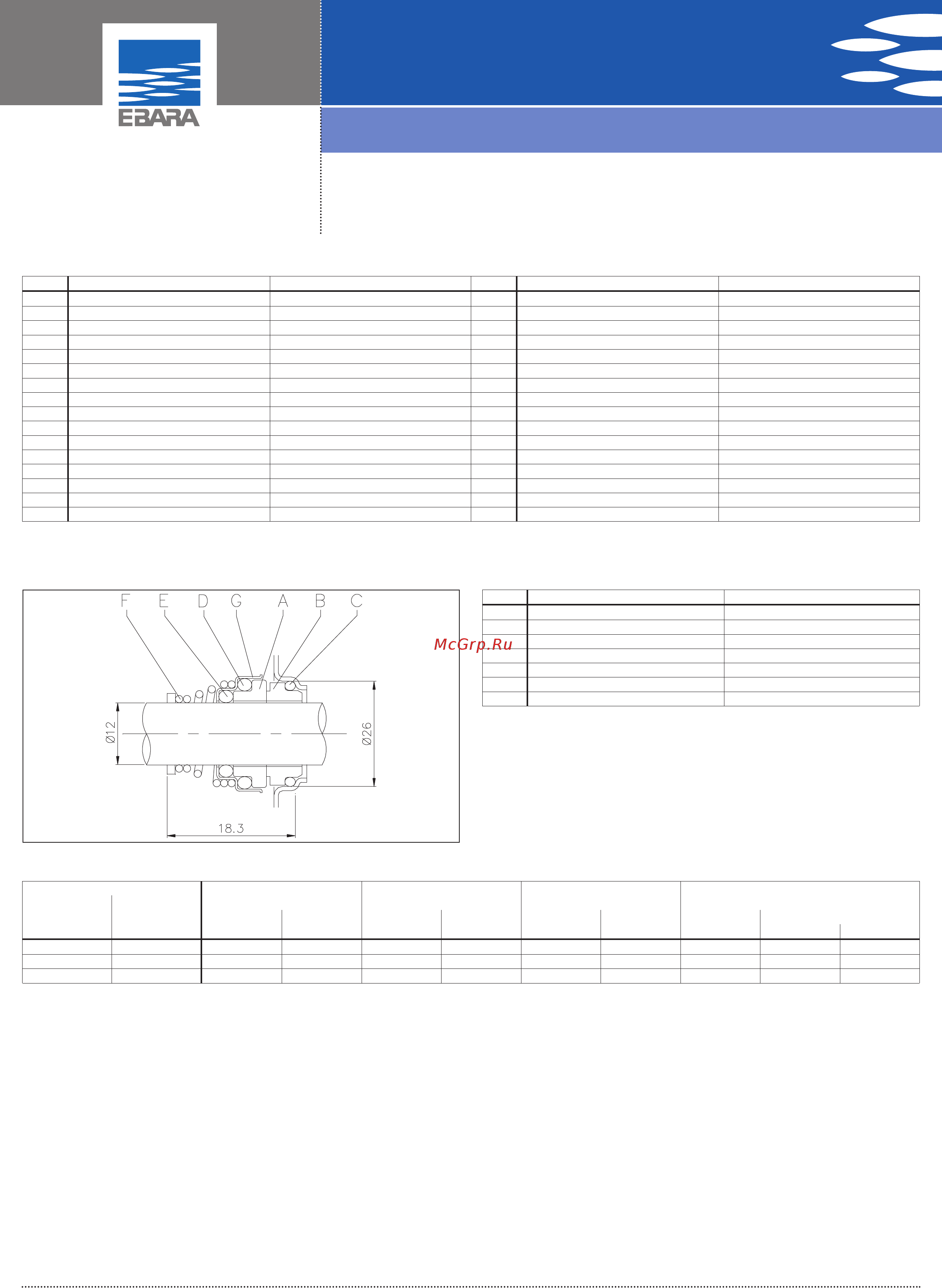

JES MECHANICAL SEAL MATERIALS TABLE
Ref. Name Material
A Rotating part Ceramic
B Fixed part Carbon
C O-Ring NBR
D O-Ring NBR
E O-Ring NBR
F Spring AISI 316
G Structure/frame AISI 304
