Your Life, our Quality. Worldwide. Residential
The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.

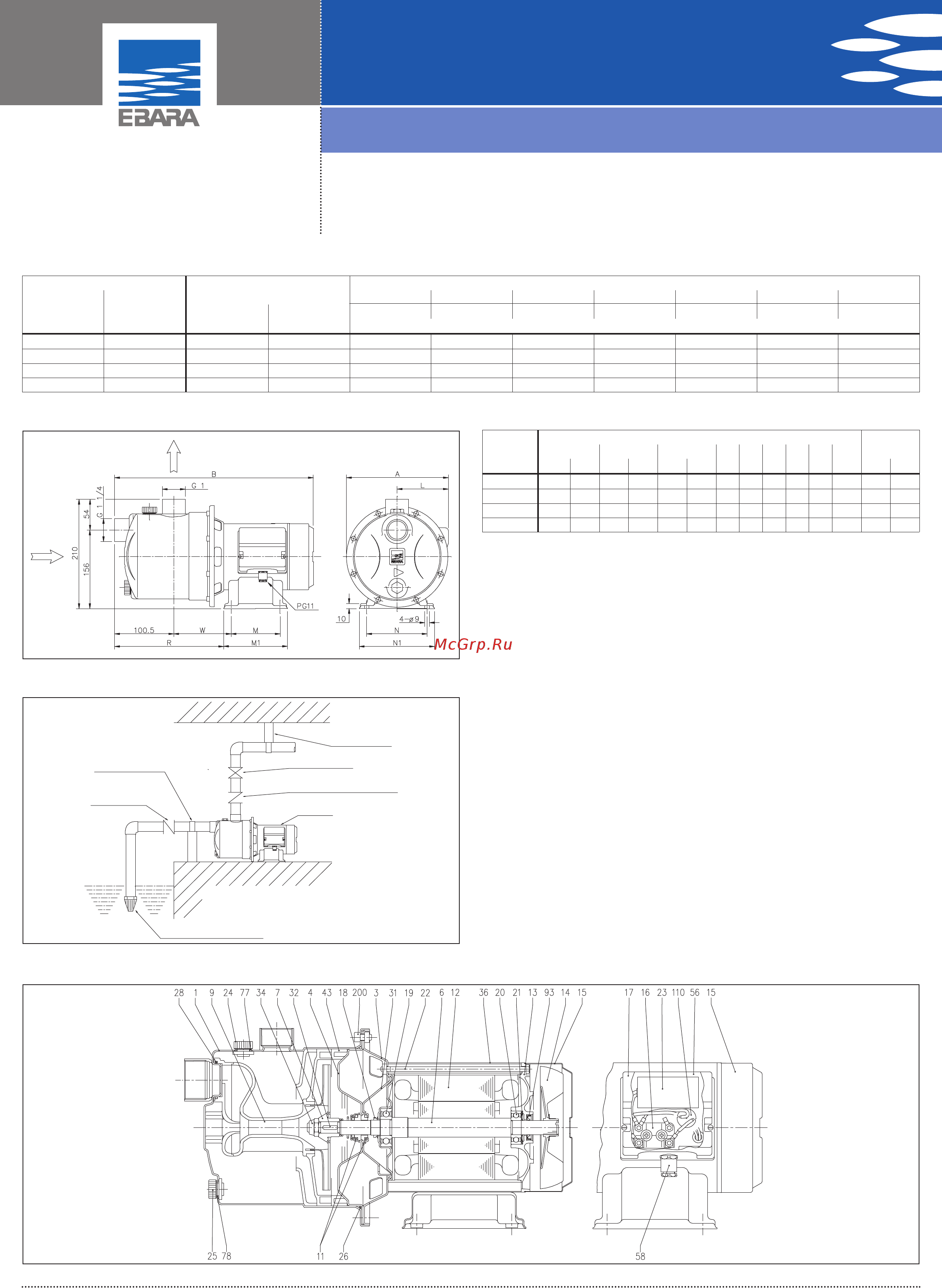

JES - JE
SELF-PRIMING ELECTRIC PUMPS
in AISI 304
J
E PERFORMANCE TABLE
Model P
2
Q=Flow rate
Single phase Three phase l/min 20 30 40 50 60 70 75
230V 230/400V [HP] [kW] m
3
/h 1,2 1,8 2,4 3 3,6 4,2 4,5
H=Head [m]
J
EM 80 JE 80 0,8 0,6 33,0 29,0 26,5 23,5 20,5 18,0 -
JEM 100 JE 100 1 0,75 37,0 33,5 30,0 27,0 24,0 21,0 -
J
EM 120 JE 120 1,2 0,88 41,0 37,0 34,0 30,5 27,5 24,5 -
JEM 150 JE 150 1,5 1,1 49,0 44,5 40,5 37,0 34,0 31,0 29,5
JE DIMENSIONS DIMENSIONS TABLE
Model Dimensions [mm] Weight
A B L M M1 N N1 R W [kg]
[2] [1] [2] [1] [2] [1] [2] [1]
JE(M) 80 211 208 396 396 107 103 100 131 120 150 213 128 10,5 10,5
JE(M) 100 211 208 426 426 107 103 100 131 120 150 228 143 12,0 12,0
JE(M) 120 211 208 426 426 107 103 100 131 120 150 228 143 12,5 12,5
JE(M) 150 215,5 215,5 433,5 433,5 111,5 111,5 120 150 140 170 231 145,5 14,1 16,4
[1]= Three phase only
[
2]= Single phase only
INSTALLATION
SUPPORT
GATE
PUMP
VALVE
SUPPORT
NON-RETURN VALVE
FOOT VALVE WITH FILTER
For correct installation of the system, it is recommended
to fit a foot valve on the suction and support/anchorage
for the piping.
JE SECTIONAL VIEW
