Your Life, our Quality. Worldwide. Residential
The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.
JES - JE
SELF-PRIMING ELECTRIC PUMPS
in AISI 304
JE ELECTRIC DATA TABLE
Model P
2
Efficiency Capacitor Efficiency (%) P
1
Absorbed Current
Single phase Three phase
Single phase Three phase [A]
230V 230/400V [HP] [kW]
Single phase Three phase
µF V
c
η %
Single phase Three phase Single phase
Three phase
50% 75% 100% [kW] [kW] 230V 230V 400V
JEM 80 JE 80 0,8 0,6 --16 450 ---1,05 0,97 4,7 3,3 1,9
JEM 100 JE 100 1 0,75 - IE2 20 450 77,2 80,9 81,3 1,33 1,13 6,4 3,5 2,0
JEM 120 JE 120 1,2 0,88 - IE2 20 450 77,2 80,9 81,3 1,39 1,15 6,7 3,6 2,1
JEM 150 JE 150 1,5 1,1 - IE2 31,5 450 79,7 82,5 83,0 1,70 1,80 7,6 5,5 3,2
M
ATERIALS TABLE
R
ef.
N
ame
M
aterial
R
ef.
N
ame
M
aterial
1 Pump body AISI 304 23 Capacitor [2] -
3 Motor support AISI 304 24 Filler cap PA6
4 Seal housing disc AISI 304 25 Drain plug PA6
6 Rotor shaft AISI 303 (part in contact with the liquid) 26 O-Ring NBR
7 Impeller AISI 304 28 O-Ring NBR
9 Venturi Unit + nozzle PPE+PS reinforced with fibreglass 31 Disc/seal spacer AISI 304
11 Mechanical seal Carbon/Ceramic/NBR 32 Key AISI 304
12 Motor case - 34 Impeller nut AISI 304
13 Motor cover Aluminium 36 Motor casing AISI 304
14 Fan PA6 43 Nozzle spacer PPE+PS reinforced with fibreglass
15 Fan cover AISI 304 56 Terminal box cover gasket NBR
16 Terminal box - 58 Cable gland -
17 Terminal box cover PA66 reinforced with fibreglass 77 O-Ring NBR
18 Spray protector washer NBR 78 O-Ring NBR
19 Bearing (pump side) - 93 Sealing ring [1] NBR
20 Bearing (motor side) - 110 Motorprotector [2] -
21 Adjusting ring Steel C70 200 Screw (Pump body) A2 UNI7323 stainless steel
22 Tie-rod Galvanised Fe 42
[1]= For IP 55 only
[2]= For single phase only

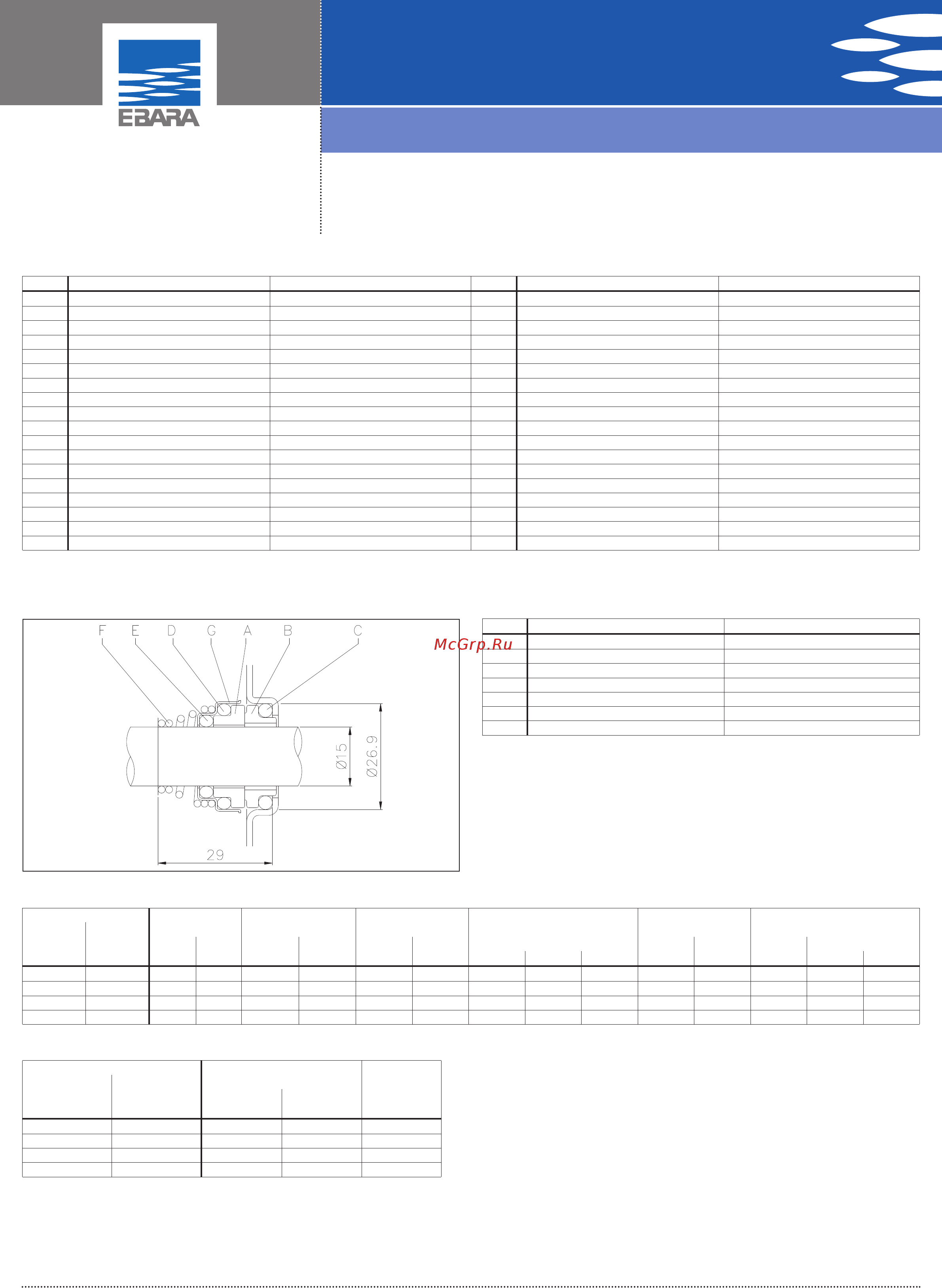

JE MECHANICAL SEAL MATERIALS TABLE
Ref. Name Material
A Rotating part Ceramic
B Fixed part Carbon
C O-Ring NBR
D O-Ring NBR
E O-Ring NBR
F Spring AISI 316
G Structure/frame AISI 304
JE NOISE DATA TABLE
Model P
2
L
pA
- dB(A)*
Single phase Three phase
230V 230/400V [HP] [kW]
JEM 80 JE 80 0,8 0,6 71
JEM 100 JE 100 1 0,75 71
JEM 120 JE 120 1,2 0,88 71
JEM 150 JE 150 1,5 1,1 76
* Mean value of several measures at 1m distance around the pump.
Tollerance ± 2,5 dB.
