Your Life, our Quality. Worldwide. Residential
The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.
JESX - JEX
SELF-PRIMING ELECTRIC PUMPS
in AISI 304
M
ATERIALS TABLE
R
ef.
N
ame
M
aterial
R
ef.
N
ame
M
aterial
1 Pump body AISI 304 22 Tie-rod Galvanised Fe 42
3 Motor support Aluminium 23 Capacitor [2] -
4 Seal housing disc AISI 304 24 Filler cap PA
6 Rotor shaft AISI 303 (part in contact with the liquid) 25 Drain plug PA
7 Impeller PPE+PS reinforced with fibreglass 26 O-Ring NBR
9 Venturi Unit + nozzle PPE+PS reinforced with fibreglass 28 O-Ring NBR
11 Mechanical seal Carbon/Ceramic/NBR 30 Mechanical seal spacer Brass
12 Motor case - 34 Impeller nut [1] AISI 304
13 Motor cover Aluminium 42 Foot Aluminium
14 Fan PA 52 Capacitor-holder box [2] ABS
15 Fan cover Galvanised Fe P04 53 Terminal box cover with gasket ABS+NBR
16 Terminal box - 56 Terminal box cover gasket NBR
17 Terminal box cover [1] Aluminium 77 O-Ring NBR
18 Spray protector washer NBR 78 O-Ring NBR
19 Bearing (pump side) - 92 Sealing ring [3] -
20 Bearing (motor side) - 93 Sealing ring [3] -
21 Adjusting ring Steel C70 200 Screw (Pump body) A2 UNI7323 stainless steel
[1]= Solo per Three phase
[2]= For single phase only
[3]= For IP 55 only

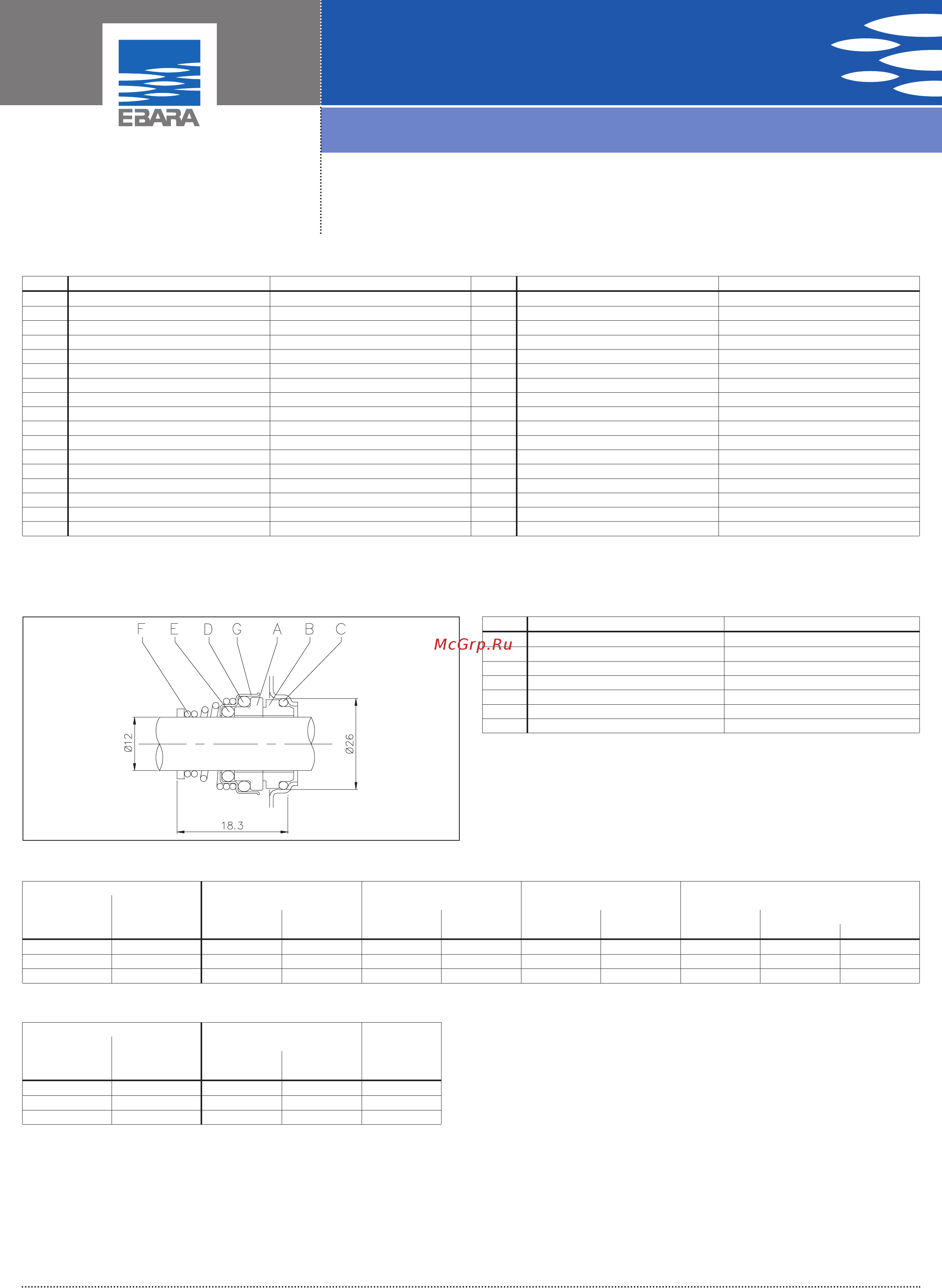

JESX MECHANICAL SEAL MATERIALS TABLE
Ref. Name Material
A Rotating part Ceramic
B Fixed part Carbon
C O-Ring NBR
D O-Ring NBR
E O-Ring NBR
F Spring AISI 316
G Structure/frame AISI 304
JESX ELECTRIC DATA TABLE
Model P
2
Capacitor P
1
Absorbed Current
Single phase Three phase Single phase [A]
230V 230/400V [HP] [kW] µF V
c
Single phase Three phase Single phase Three phase
[kW] [kW] 230V 230V 400V
JESXM 5 JESX 5 0,5 0,37 10 450 0,44 0,43 2,1 1,5 0,85
JESXM 6 JESX 6 0,6 0,44 10 450 0,54 0,49 2,4 1,9 1,1
JESXM 8 JESX 8 0,8 0,6 12,5 450 0,63 0,58 3,0 2,25 1,3
JESX NOISE DATA TABLE
Model P
2
L
pA
- dB(A)*
Single phase Three phase
230V 230/400V [HP] [kW]
JESXM 5 JESX 5 0,5 0,37 <70
JESXM 6 JESX 6 0,6 0,44 <70
JESXM 8 JESX 8 0,8 0,6 <70
* Mean value of several measures at 1m distance around the pump.
Tollerance ± 2,5 dB.
