JESX - JEX
SELF-PRIMING ELECTRIC PUMPS
in AISI 304
JEX ELECTRIC DATA TABLE
Model P
2
Efficiency Capacitor Efficiency (%) P
1
Absorbed Current
Single phase Three phase
Single phase Three phase [A]
230V 230/400V [HP] [kW]
Single phase Three phase
µF V
c
η %
Single phase Three phase Single phase
Three phase
50% 75% 100% [kW] [kW] 230V 230V 400V
JEXM 80 JEX 80 0,8 0,6 --16 450 ---1,05 0,97 4,7 3,3 1,9
JEXM 100 JEX 100 1 0,75 - IE2 20 450 77,2 80,9 81,3 1,33 1,13 6,4 3,5 2,0
JEXM 120 JEX 120 1,2 0,88 - IE2 20 450 77,2 80,9 81,3 1,39 1,15 6,7 3,6 2,1
JEXM 150 JEX 150 1,5 1,1 - IE2 35 450 79,7 82,5 83,0 1,70 1,80 7,6 5,5 3,2
M
ATERIALS TABLE
R
ef.
N
ame
M
aterial
R
ef.
N
ame
M
aterial
1 Pump body AISI 304 24 Filler cap PA
3 Motor support Aluminium 25 Drain plug PA
4 Seal housing disc AISI 304 26 O-Ring NBR
6 Rotor shaft AISI 303 (part in contact with the liquid) 28 O-Ring NBR
7 Impeller AISI 304 32 Key AISI 304
9 Venturi Unit + nozzle PPE+PS reinforced with fibreglass 34 Impeller nut AISI 304
11 Mechanical seal Carbon/Ceramic/NBR 42 Foot Aluminium
12 Motor case - 43 Nozzle spacer PPE+PS reinforced with fibreglass
13 Motor cover Aluminium 52 Capacitor-holder box [2] ABS
14 Fan PA 53 Capacitor-holder box cover [4] ABS
15 Fan cover Galvanised Fe P04 56 Terminal box cover gasket NBR
16 Terminal box - 77 O-Ring NBR
17 Terminal box cover [1] Aluminium 78 O-Ring NBR
18 Spray protector washer NBR 90 Cover gasket [5] NBR
19 Bearing (pump side) - 92 Sealing ring [3] -
20 Bearing (motor side) - 93 Sealing ring [3] -
21 Adjusting ring Steel C70 110 Motorprotector [2] -
22 Tie-rod Galvanised Fe 42 200 Screw (Pump body) A2 UNI7323 stainless steel
23 Capacitor [2] -
[1]= For Three phase only [4]= With gasket in NBR for JEX 80, JEX 100, JEX 120 single phase models
[2]= For single phase only [5]= For JEXM 150 IP55 only
[3]= For IP 55 only

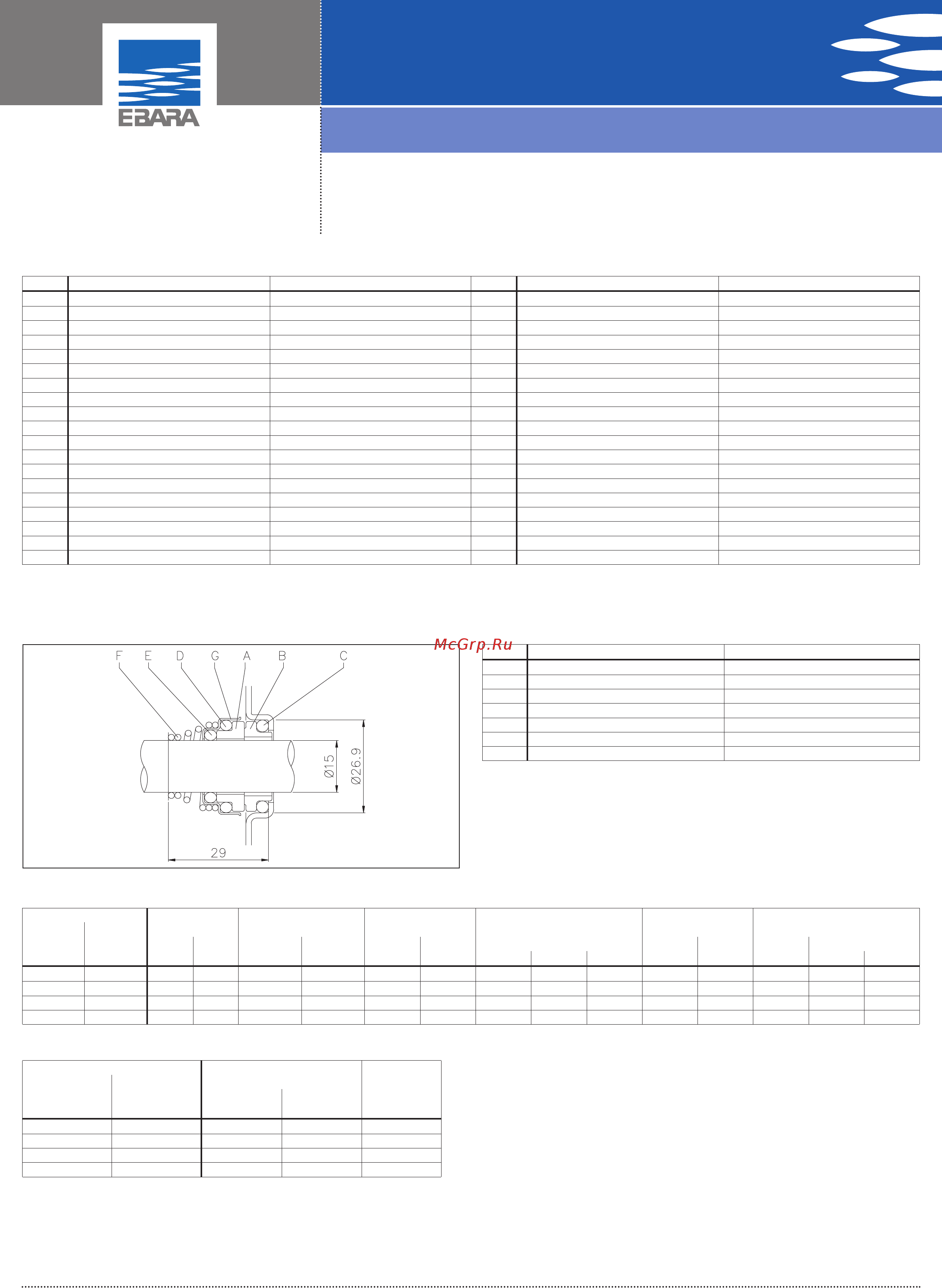

JEX MECHANICAL SEAL MATERIALS TABLE
Ref. Name Material
A Rotating part Ceramic
B Fixed part Carbon
C O-Ring NBR
D O-Ring NBR
E O-Ring NBR
F Spring AISI 316
G Structure/frame AISI 304
JEX NOISE DATA TABLE
Model P
2
L
pA
- dB(A)*
Single phase Three phase
230V 230/400V [HP] [kW]
JEXM 80 JEX 80 0,8 0,6 71
JEXM 100 JEX 100 1 0,75 71
JEXM 120 JEX 120 1,2 0,88 71
JEXM 150 JEX 150 1,5 1,1 76
* Mean value of several measures at 1m distance around the pump.
Tollerance ± 2,5 dB.
