Your Life, our Quality. Worldwide. Residential
The contents of this publication must not be regarded as binding. EBARA Pumps Europe S.p.A. reserves the right to effect any modification it deems necessary, without prior notice.

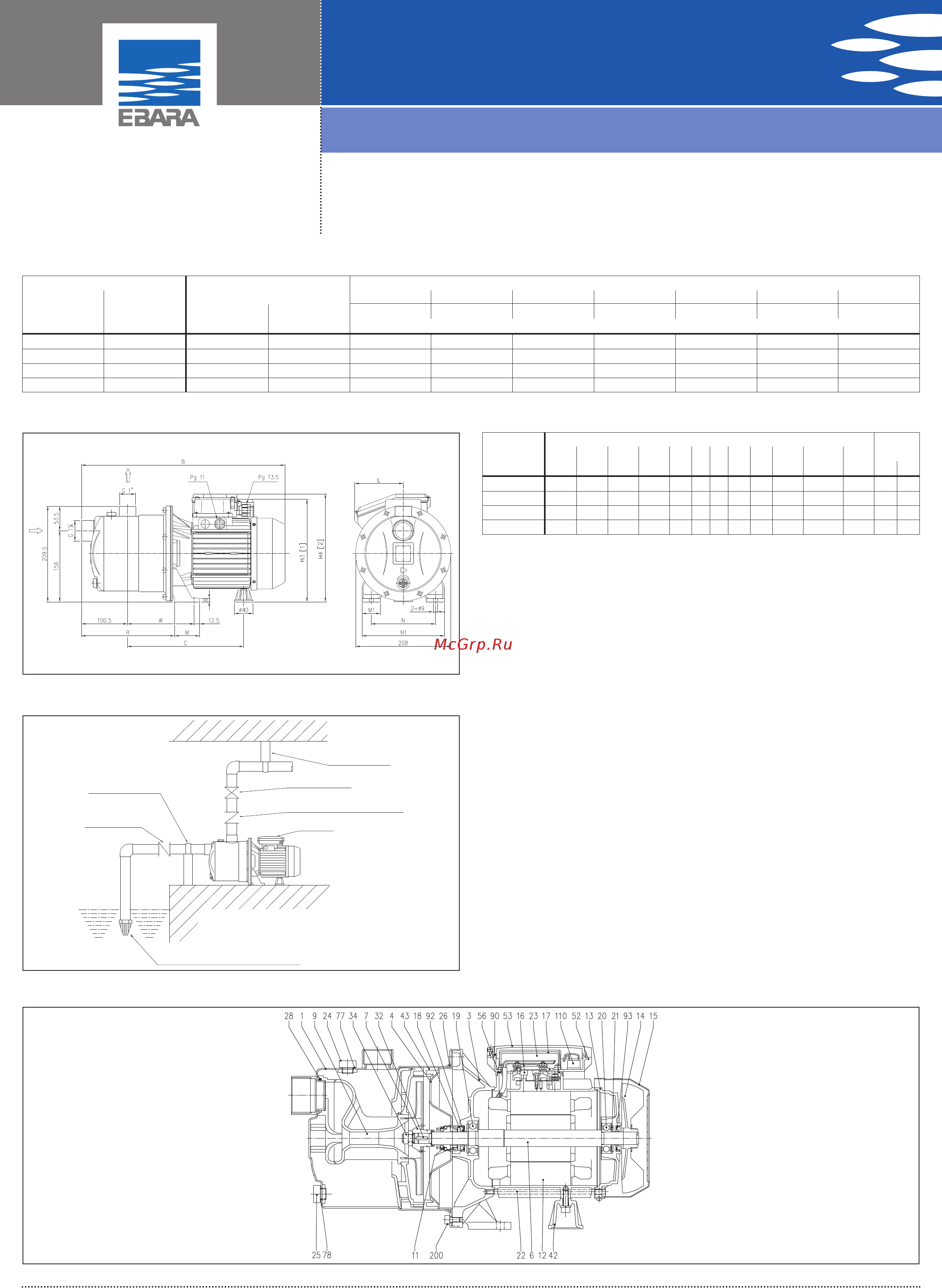

JESX - JEX
SELF-PRIMING ELECTRIC PUMPS
in AISI 304
JEX SECTIONAL VIEW
J
EX PERFORMANCE TABLE
Model P
2
Q=Flow rate
Single phase Three phase l/min 20 30 40 50 60 70 75
230V 230/400V [HP] [kW] m
3
/h 1,2 1,8 2,4 3 3,6 4,2 4,5
H=Head [m]
J
EXM 80 JEX 80 0,8 0,6 33,0 29,0 26,5 23,5 20,5 18,0 -
JEXM 100 JEX 100 1 0,75 37,0 33,5 30,0 27,0 24,0 21,0 -
J
EXM 120 JEX 120 1,2 0,88 41,0 37,0 34,0 30,5 27,5 24,5 -
JEXM 150 JEX 150 1,5 1,1 49,0 44,5 40,5 37,0 34,0 31,0 29,5
JEX DIMENSIONS DIMENSIONS TABLE
Model Dimensions [mm] Weight
B C H3 H4 L M M1 N N1 R T W [kg]
[1] [2] [2] [2] [2] [1]
JEX(M) 80 419 232,5 207,5 216 84 50 38 120 160 206,5 PG11 143,510,210,2
JEX(M) 100 419 232,5 207,5 216 84 50 38 120 160 206,5 PG11 143,5 11,611,6
JEX(M) 120 419 232,5 207,5 216 84 50 38 120 160 206,5 PG11 143,5 11,611,6
JEX(M) 150 444,5 254 224,5 236,5 106 55 40 140 180 203,5 PG13,5 145,5 14,315,3
[1]= Three phase only
[
2]= Single phase only
INSTALLATION
SUPPORT
GATE
PUMP
VALVE
SUPPORT
NON-RETURN VALVE
FOOT VALVE WITH FILTER
For correct installation of the system, it is recommended
to fit a foot valve on the suction and support/anchorage
for the piping.
