77-2665-R13.2 (10/2015) 1 / 8
SERVICE MANUAL
BINKS MACH 1SL™ HVLP
SPRAY GUN 7000-XXXX-X
MACH 1SLA (7001-XXXX-X)

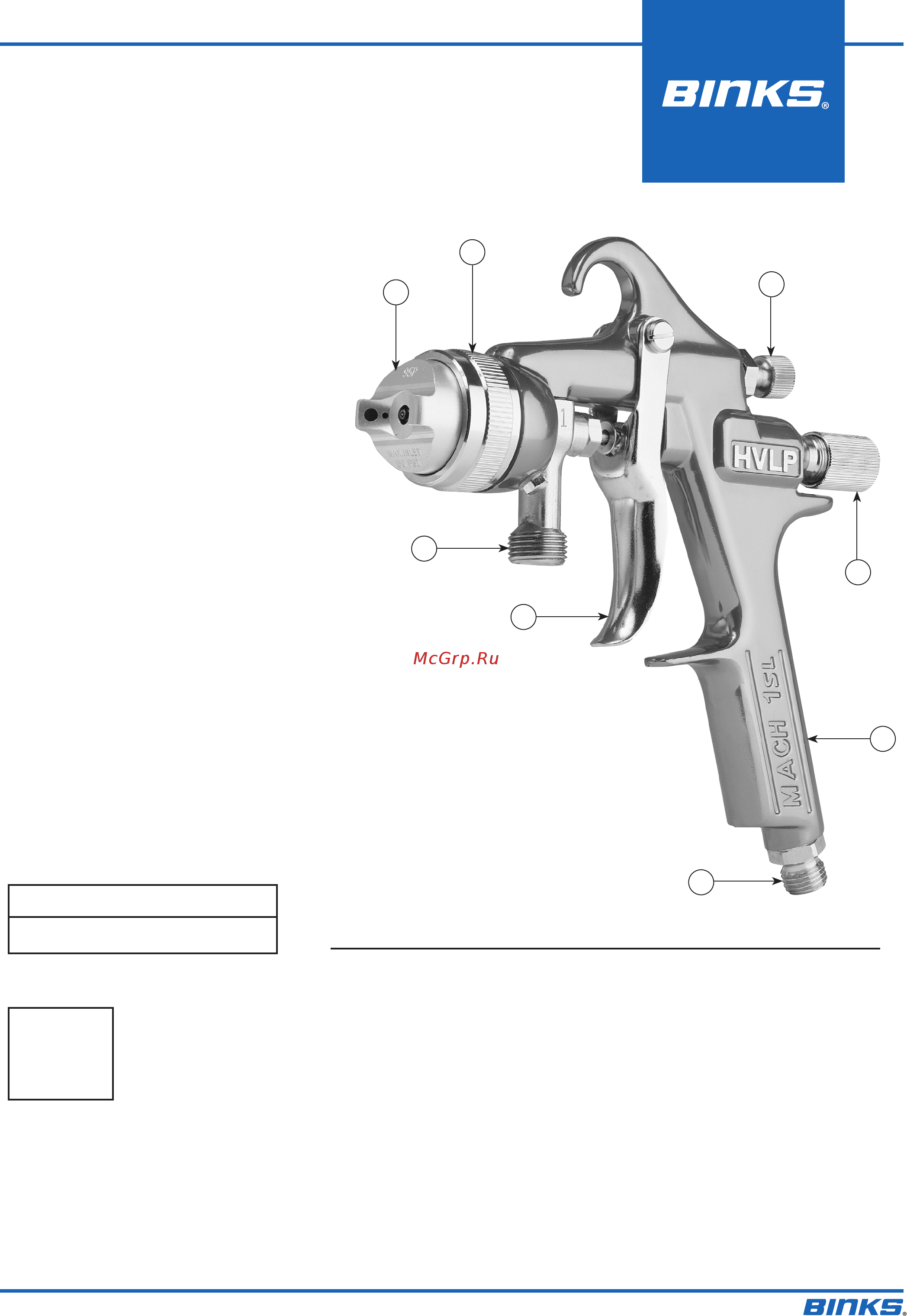

Illustration Key
1. Lightweight Air Nozzle
2. Fluid Inlet 3/8" NPS(m)
3. Extra Smooth Trigger Action
4. Stainless Steel Fluid Nozzle and Needle
5. Side Port Control
6. Fluid Control Knob
7. Forged Aluminum Body
8. Air Inlet 1/4" NPS(m)
4
The Binks MACH 1SL HVLP Gun is a
top quality high performance air spray gun.
You only have to pick it up to feel the
difference. Its superbly balanced forged
aluminum body offers the operator extra
comfort and control. All of the gun’s
components are machined and finished to
exacting tolerances and only the best
materials are used, ensuring years of
peak efficiency.
The MACH 1SL HVLP airspray gun has
special nozzles and modifications that
allow it to operate at high transfer
efficiencies in compliance with the
“California South Coast Air Quality
Management District” regulations as a
“high volume, low pressure” airspray gun.
The air inlet passage in the gun body
incorporates a venturi which limits
airflow. High pressure, low volume
airflow is converted to high volume, low
pressure at this point. Special air and fluid
nozzles enable the gun to atomize fluid at
low air pressures and velocities, creating
the “soft spray” effect for high transfer
efficiencies.
To obtain optimum performance from
your new MACH 1SL HVLP airspray
gun, read all instructions carefully.
Package Contents
Please note that your Binks MACH
1SL HVLP airspray gun package was
shipped with the following contents.
If anything in the following list is miss-
ing, call 1-800-99-BINKS for a prompt
shipment to you of the missing item.
1 MACH 1SL Spray Gun
1 Part Sheet ............ 77-2665
1 Gunners Mate
1 Gun Brush
5
6
7
2
1
3
8
NOTE
IMPORTANT REGULATORY NOTE regarding
the use of this product appears on page 8.
CA PROP
65
PROP 65 WARNING
WARNING: This product
contains chemicals known to
the State of California to cause
cancer and birth defects or
other reproductive harm.
FOR FURTHER SAFETY INFORMATION
REGARDING BINKS AND DEVILBISS
EQUIPMENT, SEE THE GENERAL
EQUIPMENT SAFETY BOOKLET (77-5300).
IT IS THE RESPONSIBILITY OF THE
EMPLOYER TO PROVIDE THIS
INFORMATION TO THE OPERATOR
OF THE EQUIPMENT.
