77-2665-R13.2 (10/2015)4 / 8
ITEM PART
NO. NO. DESCRIPTION QTY.
1 54-3531 RETAINER RING (Metal) ........................ 1
2 * AIR NOZZLE ......................................... 1
3 * FLUID NOZZLE ..................................... 1
4 54-3543 HEAD INSERT ....................................... 1
5 54-4339 GUN BODY ASSEMBLY ........................ 1
6 54-3919 TRIGGER STUD AND SCREW KIT ........ 1
7 54-4343 SIDE PORT CONTROL ASSEMBLY ........ 1
8 54-3511▲ RETAINING RING.................................. 1
9 20-6160▲ O-RING ................................................. 1
10 20-4615▲ O-RING ................................................. 2
11 54-3515 SEAL RETAINER .................................... 2
12 54-3520▲* SPRING (Yellow) .................................... 1
13 54-3512▲ SPINDLE ASSEMBLY ............................. 1
14 54-3518▲* SPRING (Blue) ........................................ 2
14a 54-4427* HEAVY DUTY SPRING (Optional)
14b 54-3559* S.S. SPRING (Optional)
15 54-3541 HOUSING ............................................. 1
16 * FLUID NEEDLE .................................... 1
17 54-3925 GASKET ................................................ 1
18 54-3928 PLUG .................................................... 1
19 54-3606 FLUID VALVE CONTROL KNOB ........... 1
20 54-768 AIR CONNECTION ................................ 1
21 20-2287 PLUG 1/8" NPT ...................................... 1
22 54-3513 VALVE SPINDLE CAP ............................ 1
ITEM PART
NO. NO. DESCRIPTION QTY.
23 54-4360 TRIGGER ............................................... 1
24 54-3742 FLUID INLET (Mach 1SL) ........................ 1
25 54-4370▲ SEAL CARTRIDGE ASSEMBLY
(Mach 1SL and Mach 1SLA).................... 1
26 54-4330 ADJUSTABLE FLUID INLET
ASSEMBLY (Mach 1SLA) ...................... 1
27 82-221 FLAT BRUSH ......................................... 1
28 54-3918● WRENCH (Not Included - Optional)
29 OMX-88 GUN BRUSH ......................................... 1
30 54-4440● QUICK CHANGE SIDE PORT
CONTROL ASSEMBLY
(Optional - Not Shown)
31 54-4541●† FLUID INLET (Mach 1SLV) ...................... 1
32 20-2227●†▲ O-RING (Mach 1SLV) .............................. 1
33 54-4531●†▲ SPACER (Mach 1SLV) .............................. 1
34 54-4542●† NUT ASSEMBLY (Mach 1SLV)................. 1
54-3871▲ GUNNERS MATE 3cc (Not Shown) ........ 1
35 54-4333 FLUID INLET ......................................... 1
36 54-4337 PACKING SEAL ..................................... 1
37 54-4332 SEAL CARTRIDGE ASSEMBLY .............. 1
38 54-4540● FLUID INLET ASSEMBLY (Mach 1SLV) .... 1

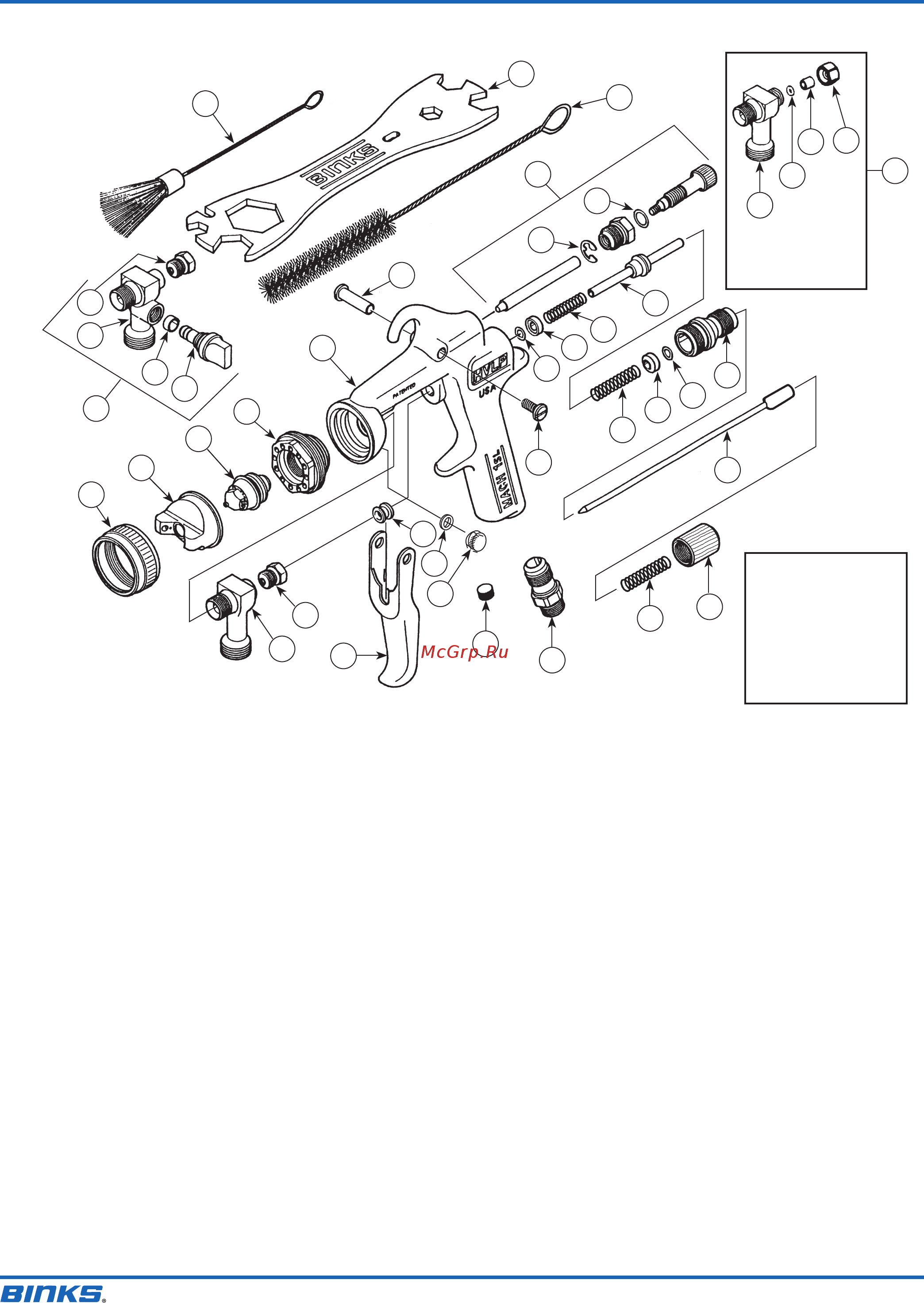

PARTS LIST
(When ordering, please specify Part No.)
* See Air and Fluid Nozzle Chart on page 5.
▲ Included in 54-4278 Spare Parts Kit.
● Optional – Order separately.
† For vitreous set-up.
Binks MACH 1SL
™
, MACH 1SLA
™
(ADJUSTABLE FLUID INLET), AND MACH 1SLV
™
33
1
25
26
27
28
29
17
18
31
24
32
22
23
7
8
15
20
21
13
12
14
14
19
2
3
4
5
6
6
9
11
11
10
10
34
Not Included
Optional for
vitreous
applications.
25
35
36
37
38
16
Torque Specs:
Item #4 Head insert
20-23 ft/lbs
Item #3 Fluid Nozzle
120-140 in/lbs
Item #1 Retaining ring
10-15 in/lbs
