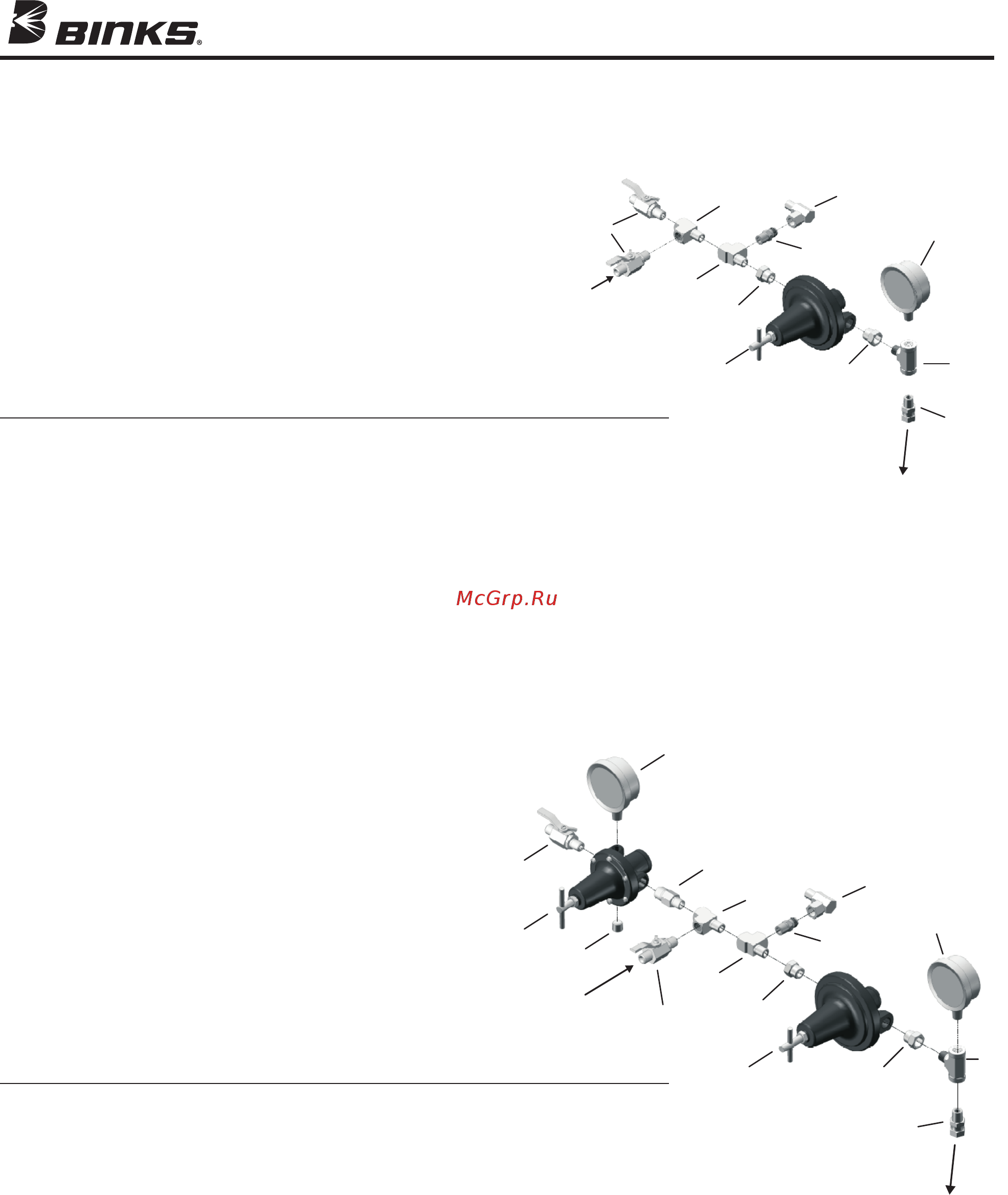

5/10/15-GALLON GALVANIZED TANK ASSEMBLIES – ExTRA SENSITIVE AIR CONTROL
ExTRA SENSITIVE REGULATOR AIR CONTROL
SINGLE REGULATOR
Provides extremely high precision control of tank pressure
(only) from 0 – 30 PSI. Includes 40 PSI Safety Valve (not shown.)
85-490 for non-agitated tanks
85-491 for agitated tanks
*Items with an asterisk are for use with an agitator.
5
6
2
2
9
1
6*
3
4
7*
8
*
TO TANK
AIR IN
ITEM
NO.
PART
NO. DESCRIPTION 85-490 85-491
1 + HAR-501 EXTRA-SENSITIVE REGULATOR 1 1
2 • --------- BUSHING-STL-PLTD – 3/8 (m) x 1/4 (f) 2 2
3 SSP-2629-ZN MALE BRANCH TEE – 1/4NPT 1 1
4 SSP-8217-ZN SWIVEL ADAPTER 1 1
5 83-1414 GAUGE - 30 PSI 1 1
6 • --------- 1/4 NPT STREET TEE 1 2
7 H-2008 NIPPLE – 1/4 NPS x 1/4 NPT — 1
8 SSP-ZN-30 SWIVEL ELBOW – 1/4 NPS(m) x 1/4 NPS (sw) — 1
9 VA-542 BALL VALVE 2 2
10 TIA-5040 SAFETY VALVE, 40 PSI (NOT SHOWN) 1 1
• Purchase locally
+ Refer to SB-6-131 for regulator service parts
ExTRA SENSITIVE REGULATOR AIR CONTROL
DOUBLE REGULATOR
Provides extremely high precision control of tank pressure plus
standard regulation for a spray gun. Includes 40 PSI Safety
Valve (Not shown.)
85-492 for non-agitated tanks
85-493 for agitated tanks
*Items with an asterisk are for use with an agitator.
5
11
2
3
4
7*
8
*
2
1
9
10
12
13
6
TO TANK
AIR IN
9
ITEM
NO.
PART
NO. DESCRIPTION 85-492 85-493
1 + HAR-501 EXTRA-SENSITIVE REGULATOR 1 1
2 • --------- BUSHING-STL-PLTD – 3/8 (m) x 1/4 (f) 2 2
3 SSP-2629-ZN MALE BRANCH TEE – 1/4NPT 1 1
4 SSP-8217-ZN SWIVEL ADAPTER 1 1
5 83-1414 GAUGE - 30 PSI 1 1
6 • --------- 1/4 NPT STREET TEE 1 2
7 H-2008 NIPPLE – 1/4 NPS x 1/4 NPT — 1
8 SSP-ZN-30 SWIVEL ELBOW – 1/4 NPS(m) x 1/4 NPS (sw) — 1
9 VA-542 BALL VALVE 2 2
10 • --------- 1/4 NPT PLUG (SUPPLIED W/ REGULATOR) 2 2
11 83-4233 D.M. NIPPLE 1/4 x 3/8 1 1
12 # HAR-507 AIR REGULATOR 1 1
13 83-1355 GAUGE – 100 PSI 1 1
14 TIA-5040 SAFETY VALVE, 40 PSI (NOT SHOWN) 1 1
• Purchase locally
+ Refer to SB-6-131 for regulator service parts
# Refer to SBBI-6-147 for regulator service parts
