715 English Instruction Sheet
Page 8
Using the Current Output Modes
The calibrator provides current output in mA or percent display.
Percent is -25.00 to 125.00%, where 0% is 4 mA, and 100% is 20
mA.
In source mode, the calibrator supplies the current. In simulate
mode, the calibrator simulates a two-wire transmitter in an
externally-powered current loop.
Sourcing mA

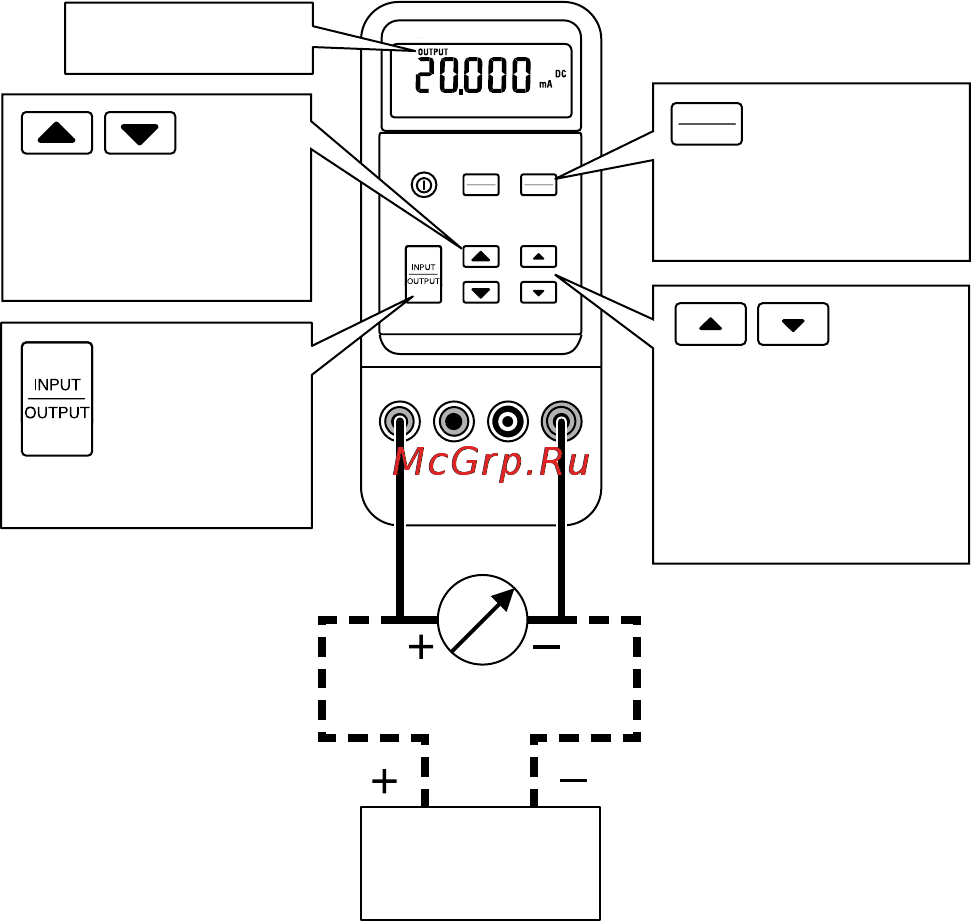

Use source mode whenever you need to supply current into a
passive circuit such as a current loop with no loop supply. Insert
the test leads into the OUTPUT + and − mA jacks as shown
below.
Note
A path must exist for current to flow between the
OUTPUT + and −mA jacks, otherwise the display will
indicate an overload (OL) when you set an output value.
715
VOLT/mA CALIBRATOR
LOOP
+
mA
- mA +
- mA SIMULATE, +
VOLTS
COM
INPUT
OUTPUT (30V MAX)
V
30V
MAX
30V
MAX
30V
MAX
V
mV
mA
%
Press to scroll
up/down 0.001 mA.
Hold down to scroll
faster.
Press to step up/down
4 mA (25%)
Press so that
OUTPUT is on
the display.
OUTPUT
Press to toggle
mA and % of
4-20 mA scale
mA
%
HART
TM
Communicator
it04i.eps
