Fluke 717 [4/16] English

English

• To avoid corrosion in the pressure sensor, use the Calibrator only

with media compatible with glass, ceramic, silicon, RTV, nitrile

(Buna -N) type 303 stainless steel, and nickel.

• To avoid damaging the Calibrator, do not apply torque between the

pressure fitting and the Calibrator case. See Figure 1 for the proper

technique.

Hold in

fixed

position

qo001f.eps

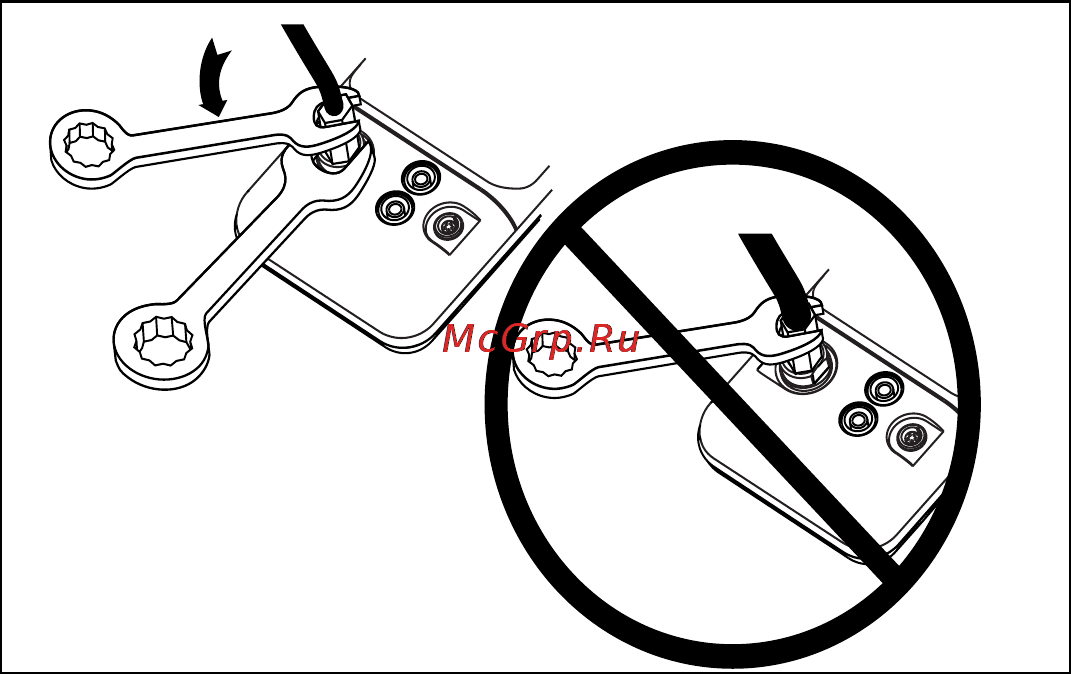

Figure 1. Proper Tightening Method

Getting Acquainted

Press

to turn the Calibrator ON and OFF. The Calibrator displays pressure and

current measurements simultaneously.

The upper part of the display shows the applied pressure.

Press U

to select a different unit. When you turn the Calibrator OFF, the next

time you turn the Calibrator back ON it returns to the pressure unit you last used.

The lower part of the display shows the current (up to 24 mA) applied to the

current (mA) inputs. See Figure 2.

Power Saver

The Calibrator automatically turns off after 30 minutes of inactivity. To reduce this

time or disable this feature:

1. With the Calibrator OFF, press O.

2. P.S. xx is displayed, where xx is the turn-off time in minutes. OFF means the

power saver is disabled.

3. Press h (W) to decrease or

(

Z) to increase the turn-off time.

4. To disable, press h until the display shows OFF.

The Calibrator resumes normal operation after 2 seconds.
