6 M109
English

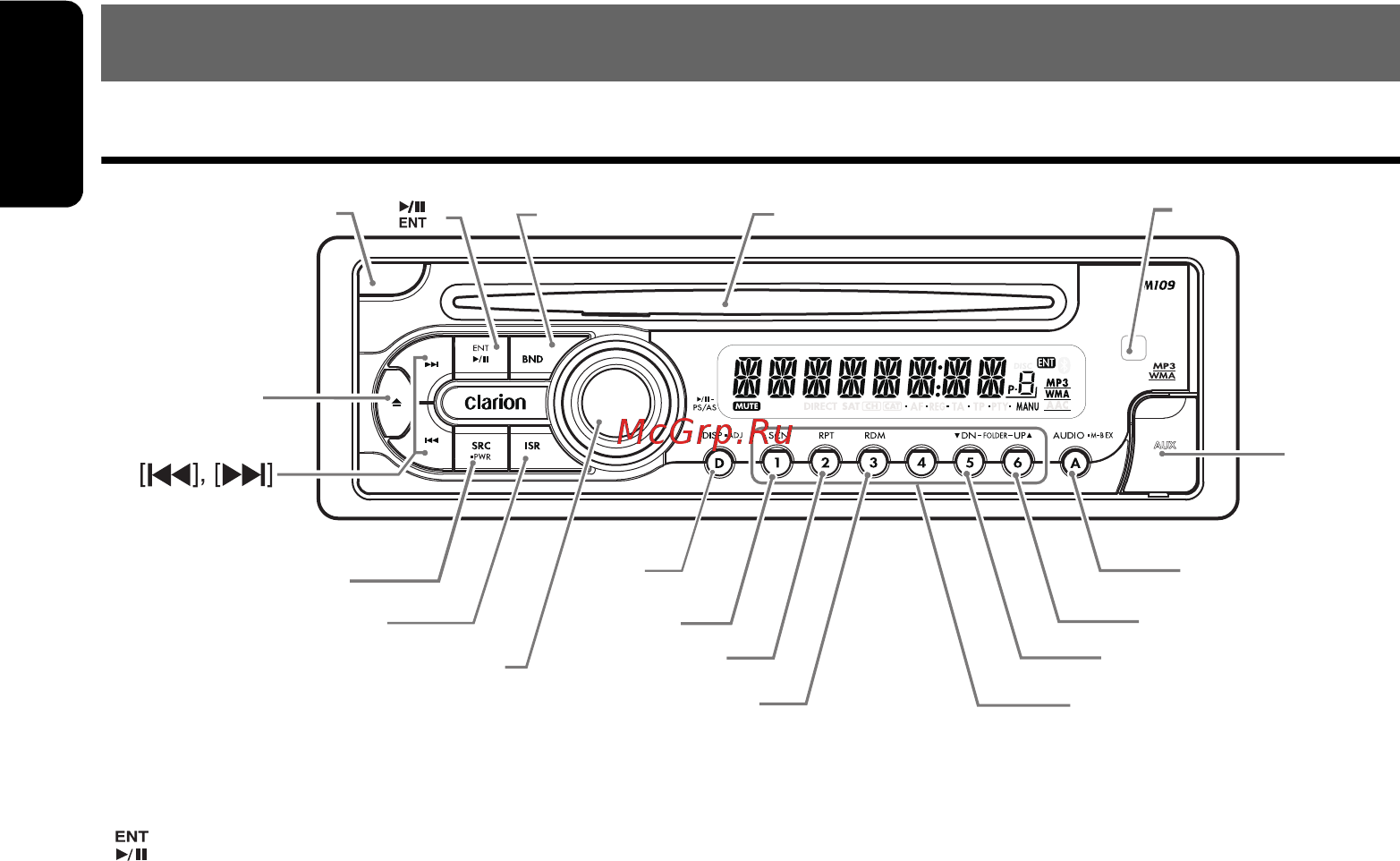

Names of the Buttons and Their Main Functions
[RELEASE] button
• Press to unlock DCP.
[] button
• Perform preset scan while in the radio mode.
• Play or pause a track while in CD/MP3/WMA
mode.
[BND] button
• Change bands, or select seek tuning or
manual tuning while in radio mode.
[CD SLOT]
• Insert CDs here.
[IR RECEIVER]
• Receiver for remote control unit. (Operating
range: 30° all directions)
[AUX] input jack
•Input jack for connecting external device.
[AUDIO] button
• Press to switch to the sound adjust mode.
[UP], [DN] buttons
• Select folders while in MP3/WMA mode.
[DIRECT] buttons
• Store radio stations in memory or recall it
directly while in radio mode.
[RDM] button
• Perform random play while in CD/MP3/WMA
mode.
[RPT] button
• Perform repeat play while in CD/MP3/WMA
mode.
[SCN] button
• Perform scan play in CD/MP3/WMA mode.
[DISP] button
• Switch display mode.
[ROTARY] knob
• Rotate to adjust the volume.
[ISR] button
• Recall ISR station stored in memory.
• Press and hold (2 sec.) to store current
station in ISR memory (radio mode only).
[SRC] button
•Turn the power on/off.
[x], [v] buttons
• Commence fast-forward/fast-reverse mode.
[Q] (EJECT) button
• Press to eject disc.
3. CONTROLS
[
RELEASE
]
[
]
[
BND
]
[
Q
]
[CD SLOT]
[IR RECEIVER]
[
AUX
]
[
SCN
]
[
DN
]
[
RPT
]
[
AUDIO
]
[
DIRECT
]
[
UP
]
[
RDM
]
[
ISR
]
[
ROTARY
]
[
SRC
]
[
DISP
]
