Clarion M109 [7/21] Detachable control panel

English

7 M109

When detaching the control panel, store it in the

DCP (DETACHABLE CONTROL PANEL) case

to prevent scratches.

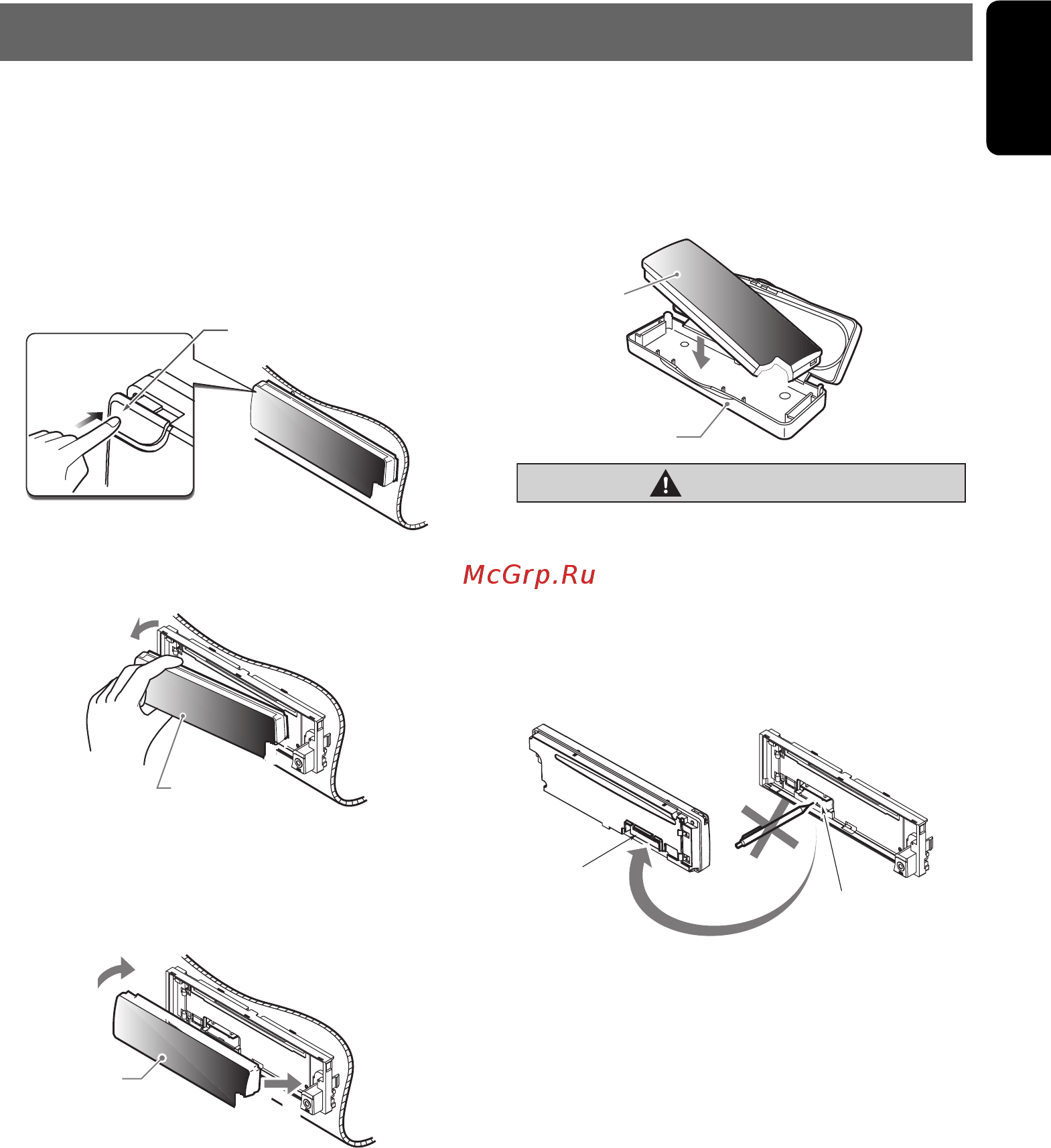

Removing the DCP

1. Press and hold the [SRC] button (1 sec.) to

switch off power.

2. Press the [RELEASE] button.

∗ DCP is unlocked.

3. Remove DCP.

Attaching the DCP

1. Insert the right end of DCP into main unit.

2. Press left end of DCP into main unit.

Storing the DCP in the DCP Case

Hold the DCP, in the orientation as shown in the

figure below, and put it into the supplied DCP

case. (Ensure the DCP is in the correct

orientation.)

CAUTION

• After removal, be careful not to drop the

DCP or subject it to strong impacts, to

prevent damage.

• The connector for the main unit and DCP

is extremely important. Be careful not to

damage it by pressing with fingernails or

sharp objects.

Note:

• If the DCP is dirty, wipe off with a soft, dry cloth

only.

4. DCP

(DETACHABLE CONTROL PANEL)

[RELEASE] button

DCP

DCP case

Main Unit Front

Main unit connector

DCP Rear Panel

DCP

connector
