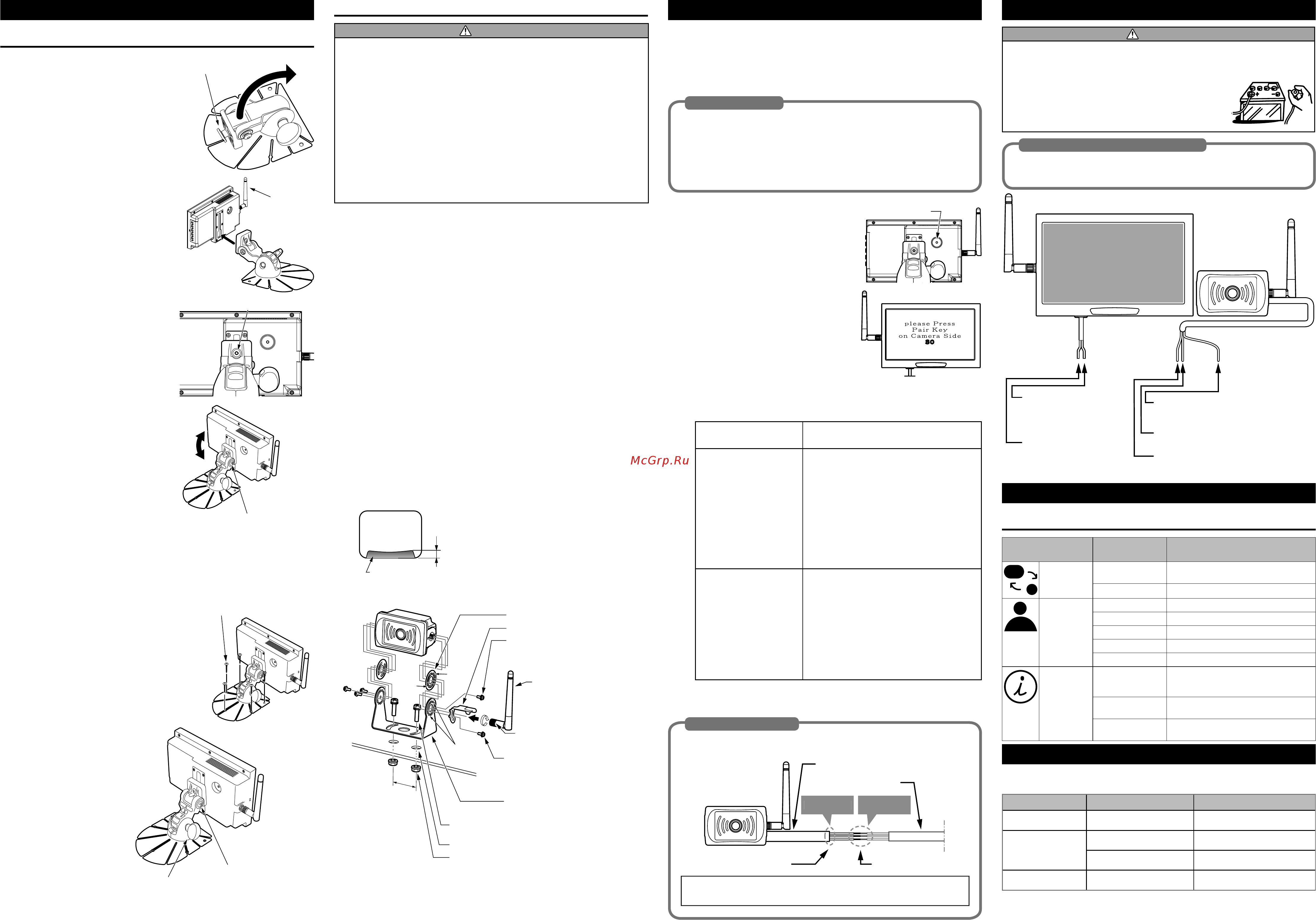

HOW TO INSTALL
■
How to attach the monitor with receiver
1
Place the arm part of the monitor
stand in an upright position.
Face the mounting part forward.
2
Rotate the threaded portion of
the antenna clockwise and fix the
(short) antenna securely to the
monitor to prevent loosening.
3
Slide the monitor mounting part of
the monitor stand into the groove in
the back of the monitor.
4
Tighten the monitor height
adjusting screw in the back of the
monitor stand with the supplied
hexagonal wrench (3 mm) and fix
the monitor securely.
5
Adjust the angle of the monitor and
tighten the monitor angle adjusting
screw on the side with the supplied
hexagonal wrench (3 mm).
6
Decide the position for mounting the monitor stand.
7
Wipe the mounting surface (dashboard, etc.) clean, remove the
protective tape from the bottom of the stand and press the stand
onto the surface to attach it securely.
8
Fix the monitor stand securely
with the supplied self tapping
screws (5 places).
9
Adjust the monitor to the
optimum viewing angle
and tighten the adjusting
screw to fix securely.
■
How to mount the camera with transmitter
CAUTION
●
Never swing the camera by the cable or pull the cable. Doing so may
impair the camera's watertightness or break the cable, resulting in
malfunction.
●
Avoid mounting the camera where the lens will be exposed to dirt (mud
splashes, exhaust fumes, etc.).
●
To prevent the camera from shaking, make sure the camera is mounted
to solid surface. The surface may need reinforcement if it is not solid
and secure.
●
Be sure to use the supplied screws to mount the camera. If any
screws are lost when mounting the camera, be sure to use hexagon
head bolts with built-in washer (M3 mm x 8 mm). Do not under any
circumstances use screws longer than this. To ensure watertightness,
the screw mounting holes in the camera case have a bag structure.
Use of long screws may damage the screw thread and camera case,
compromising watertightness.
1
Make a hole (2 places) for mounting the bracket in the chassis and
fix the bracket securely with the
@
hexagon head bolts with built-in
washer and flanged nuts.
2
Push-fit the gasket boss (2 places) into the guide hole from inside
the bracket.
3
Temporarily fix the camera in 4 places (a) with the
!
hexagon
head bolts with built-in washer.
4
Using tools such as needle nose pliers, rotate the threaded
portion of the antenna clockwise and fix the (long) antenna securely
to the camera to prevent loosening.
5
Temporarily fix the antenna bracket in 1 place (b) with the
!
hexagon head bolt with built-in washer so that the angle of the
antenna is controlled.
6
Install the wiring. (Refer to WIRING AND CONNECTIONS)
7
Adjust the mounting angle of the camera so that the rear bumper or
back end of the vehicle appears in the monitor and tighten the bolts
(a) to fix securely. (See diagram below)
Rear bumper or rear end of the vehicle
Monitor screen
The recommended guideline is approximately
1/10 of the monitor's overall height.
8
Adjust the antenna angle for optimal signal reception and tighten
the bolt (b) to fix securely.
(a)
(a)
(a)
(b)
(a)
45 mm
0
Gaskets (Two places)
$
Antenna bracket
8
Mounting bracket
Threaded portion
of the antenna
9
Antenna (Long)
#
Flanged nuts (M5 mm) (Two places)
Vehicle side: 5.5 mm holes (Two places)
!
Hexagon head bolts
with built-in washer (a)
(M3 mm x 8 mm)
(Four places)
!
Hexagon head bolt
with built-in washer (b)
(M3 mm x 8 mm)
(One place)
@
Hexagon head bolts with built-in washer
(M5 mm x 8 mm) (Two places)
Boss
Guide holes
Boss
PAIRING
The camera and monitor have been paired at the factory, so pairing is not
required at the initial installation stage. The pairing steps can be skipped in
this case.
If the camera or monitor are replaced for any reason, then pairing must be
completed as per the instructions below. Pairing is also required each time
you change Tractor/Trailer combinations.
Precautions for uses
•
If there are multiple connectable cameras, before pairing, turn
on only the camera you want to connect and turn off any other
cameras.
If pairing is performed when there are multiple connectable
cameras, the paired device will be selected automatically and it may
Precautions for uses
1
Press the pairing button (on the rear
of the monitor) for four seconds.
2
The words "please Press Pair Key
on Camera Side" will appear on
the monitor. A 30 second timer
will then count down. Please pair
before 30 seconds elapses.
3
Pairing method
Pairing method depends on vehicle type and design of vehicle
wiring harness.
(+) Reverse or Parking
light Line of Camera
Pairing Method
(1): Connect to reverse
line (If the tractor/
trailer combination
is changed,
reconnection of the
pairing signal cable is
not required)
Connect the pairing signal cable (brown)
to the illumination line of the vehicle.
1
Turn off the illumination.
2
Put the reverse gear into reverse.
3
Turn on the illumination for at least 1
second.
→
Pairing starts
4
Turn off the illumination and return the
reverse gear to its original position.
➞
To repeat pairing, repeat steps
1
to
4
.
(2): Connect to
illumination line
1
Connect the pairing signal cable
(brown) to the illumination line to which
a positive power source is supplied for
at least 1 second.
→
Pairing starts.
2
When pairing is completed,
disconnect the pairing signal cable
(brown) and insulate with insulating
tape to prevent malfunction or short-
circuiting.
➞
The camera video will appear on the monitor and pairing is
complete.
WIRING AND CONNECTIONS
CAUTION
●
Do not connect the power cable (red) of either the transmitter or the
receiver to the +B line (permanent power supply) as this may lead to a
flat battery.
●
Disconnect the negative terminal of the battery
before connecting the cables. Failure to do so
may lead to electric shock or injury due to short-
circuit. It may also lead to damage to the system
components due to short-circuit.
Precautions when connecting the cables
•
To prevent short-circuiting, check the connections again before
connecting the battery.
Precautions when connecting the cables
Ground (Negative)
Connect to chassis ground.
Ground (Negative)
Connect to chassis ground.
RedBlack
(+) Reverse or Parking light
Please refer to the item 3. of PAIRING
section.
ACC+
Connect to a positive power
supply that can be turned on
and off with the ignition key.
Pairing
Only used for pairing. Refer to PAIRING
section for the pairing procedure.
Monitor with receiver
RedBrown Black
Camera
with transmitter
MONITOR SETUP
■
MENU
Menu Screen Display
Sub Screen
Display
Display Description
Input Mode
Setting
Input (Switch External
Input)
Switchover to external input not supported.
(Only CCD is displayed)
Information Displays manufacture information.
Color
Adjustment
Contrast For adjusting contrast.
Brightness For adjusting brightness.
Saturation For adjusting color saturation.
Hue For adjusting color hue.
Sharpness For adjusting sharpness.
System
Information
Sleep Timer Timer function not available.
Although numbers can be changed, please leave
the setting at “0”.
Language For setting language. Available languages are
English, French, German, Spanish and Korean.
Reset Reset all menu screen settings to default
settings.
TROUBLESHOOTING
The following situations may not be malfunctions, please check prior to
requesting service.
Symptom Cause Measure
There is no image (Nothing
appears on the monitor)
The connection of the monitor is
not correct.
Check the connection of the monitor
and connect correctly
There is no image (“No
Signal” is continuously
displayed on the monitor)
The connection of the camera is
not correct.
Check the connection of the camera
and connect correctly
The surrounding radio wave signal
strength is weak
Move to a different place and check if
the image appears
The image cuts out The surrounding radio wave signal
strength is weak
Move to a different place and check if
the image appears
Monitor mounting part
Antenna
(Short)
Monitor height adjusting screw
Monitor angle adjusting screw
4
Self tapping screws (5 places)
Stand angle adjusting screw
Monitor angle adjusting screw
Pairing button
Wiring Precaution
•
Please carry out waterproof treatment on hookup point between
camera power cable and vehicle wiring as per the illustration below.
Camera power cable
Waterproof
Waterproof
Vehicle wiring
The end of
camera power cable
Wire connections
As well as wire connections, please do waterproof to the end of
camera power cable.
Wiring Precaution
