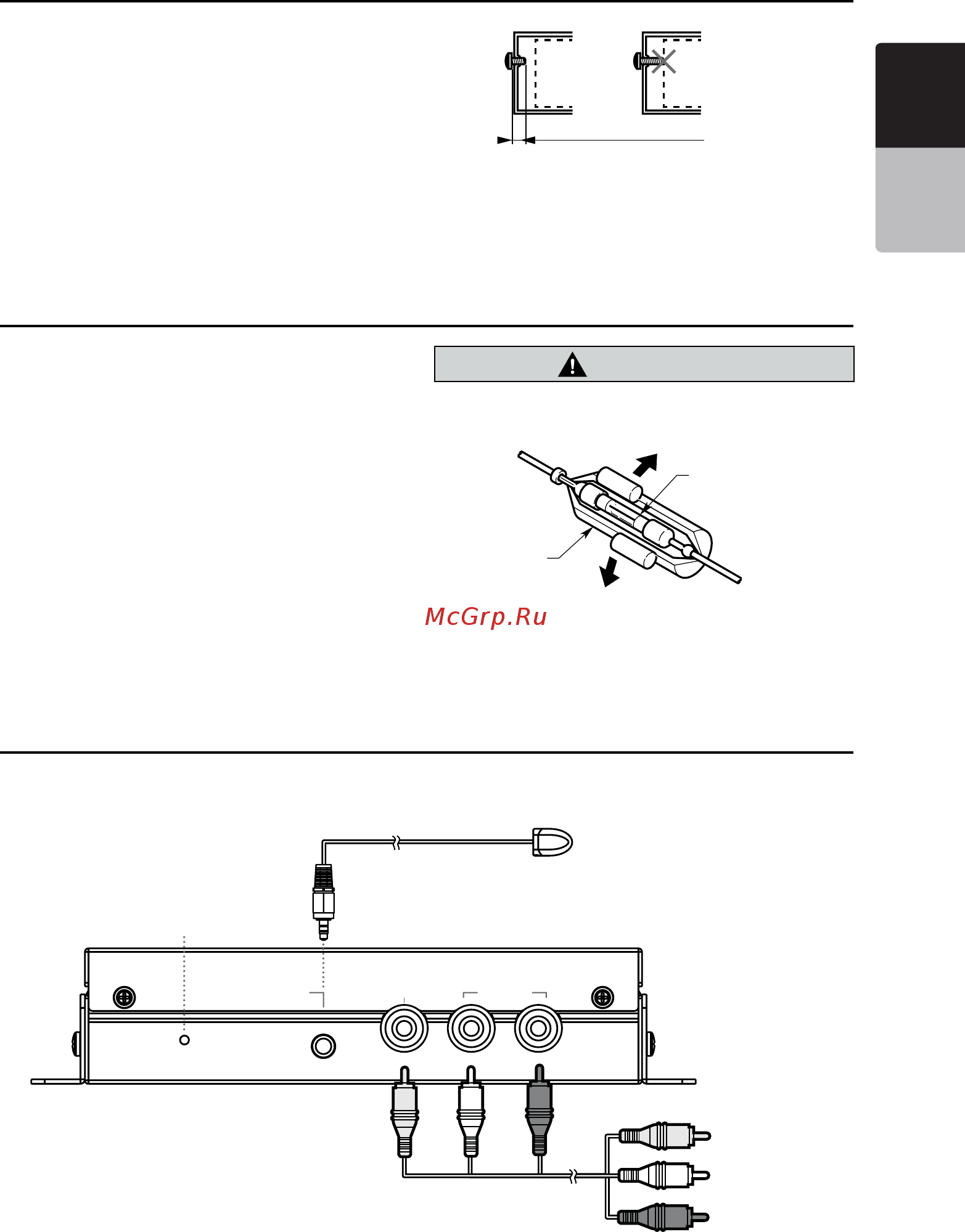

English
Installation
Manual
DTX502E 21
ChassisChassis
Damage
Max. 8 mm (M5 screw)
Max. 4mm (M2.6 screw)
Chassis Chassis
Damage
5. Cautions on Wiring
1. Be sure to turn the power o before wiring.
2. Be particularly careful where you route the wires.
Keep them well away from the engine, and exhaust
pipe, etc. Heat may damage the wires.
3. If the fuse should blow, check to see if the wiring is
correct.
If a fuse is blown, replace it with a new one of the
same amperage rating as the original ( 3A FUSE).
4. To replace the fuse, remove the old fuse on the back
of the unit and insert the new one. ( Figure2 )
Note:
There are various types of fuse holder. Do not let the
battery side touch other metal parts.
After the connection, x the cord by a clamp
or insulation tape for protection.
CAUTION
Fuse ( 3A FUSE )
Fuse holder
Figure 2
6. Wire Connections
Note:
• Before installing, be sure to disconnect the negative cable of the car battery.
VISUAL IN
Audio/L
Audio/R
IR Cable
connect cable (RCA)
Reset switch
REMOTE
CONTROLLER IN
VIDEO OUT
AUDIO OUT
4. Cautions on Installation
1. Prepare all articles necessary for installing the source
unit before starting.
2. If you have to do any work on the car body, such as
drilling holes, consult your car dealer before hand.
3. Use the enclosed screws for installation. Using other
screws can cause damage.
