Инструкция по эксплуатации Страница: 50

Fluke 725 [50/72] Users manual

725

Users Manual

Red

TEST DC PWR

+–+–

–+

Black

V mA

LOO P

V mA

TC RTD

100%

25%

RECALL

ZERO

MEAS

SOURCE

STORE

SETUP

MULTIFUNCTION CALIBRATOR

725

sh44f.eps

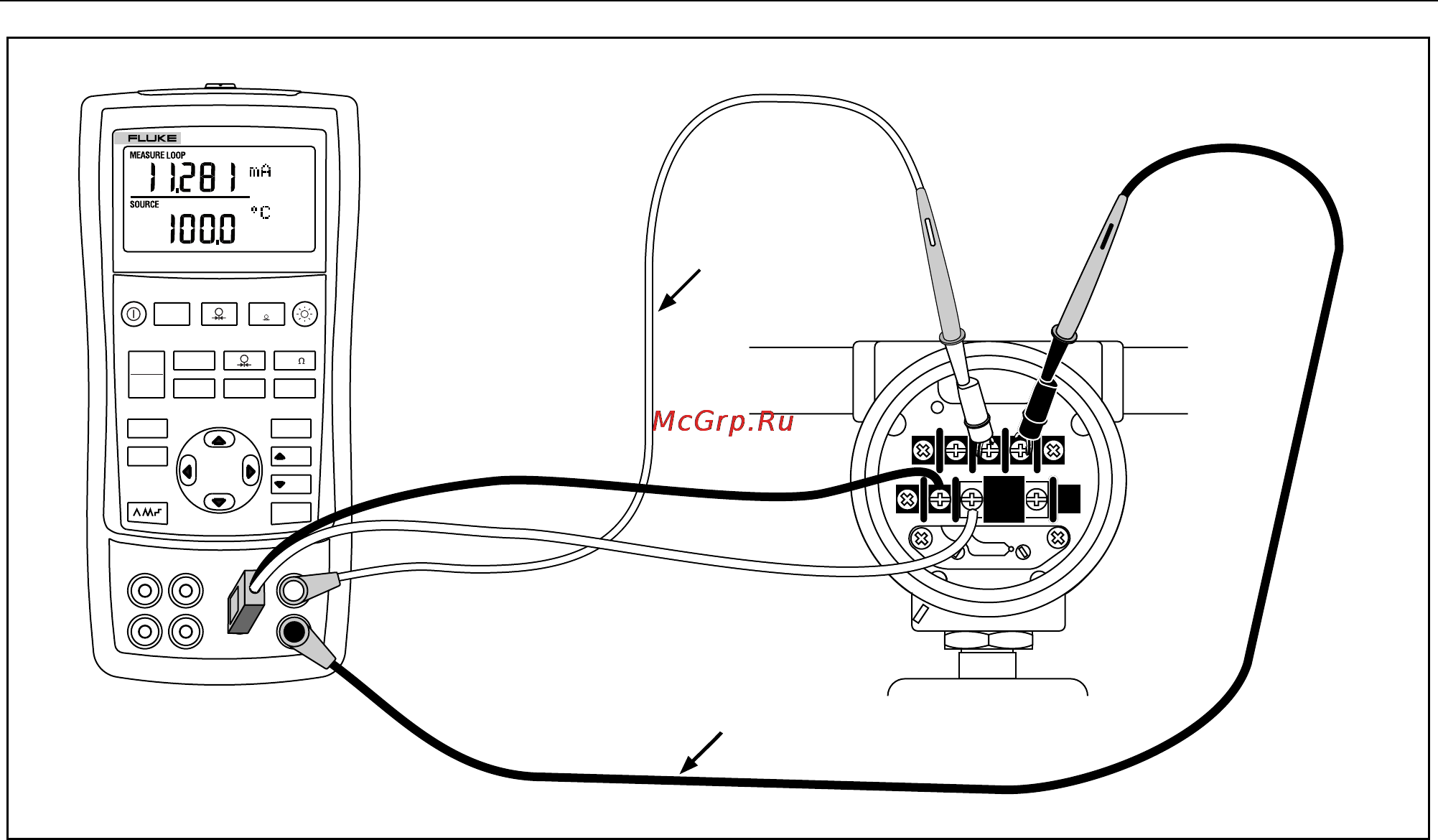

Figure 19. Calibrating a Thermocouple Transmitter
