DA-6400/DA-6400dp
32
TASCAM DA-6400/DA-6400dp
When the confirmation pop-up message is open, press the
MULTI JOG dial to change to setting the multiple selected
channels at the same time, and reopen the
INPUT ROUT-
ING
setting list.
When the confirmation pop-up message is open, press the
EXIT [PEAK CLEAR] button to close the message.

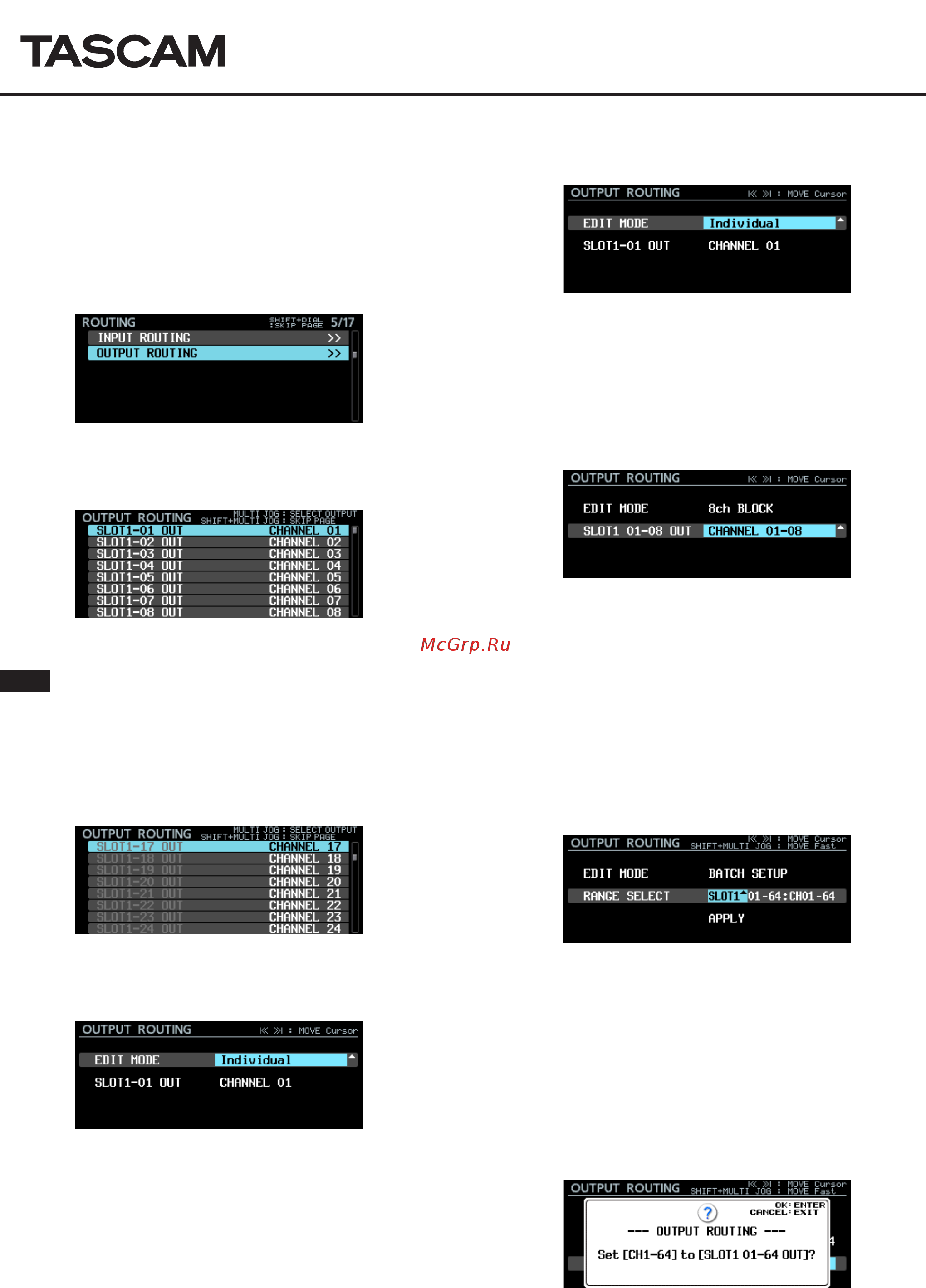

Setting output signal routing
Follow these steps to set output signal routing.
1. Open the
ROUTING
page and select the
OUTPUT ROUTING
item. Then, press the MULTI JOG dial to open the
OUTPUT
ROUTING
settings list.
OUTPUT ROUTING
settings list
NOTE
When an interface card with less than 64 output signal chan-
nels is installed, the names of unavailable output connectors
appear gray.
For example, if an IF-AE16 card with 16 I/O channels is installed
in SLOT1, the
SLOT1-17
OUT to
SLOT1-64
OUT items will
appear gray.
2. Turn the MULTI JOG dial to select the output connector you
want to set, and press the MULTI JOG dial to open the
OUT-
PUT ROUTING
setting screen.
OUTPUT ROUTING
setting screen
3. Select the
EDIT MODE
item and set how setting values are
changed.
Press the MULTI JOG dial to confirm the
EDIT MODE
and
move the cursor to the next item. You can also use the .
and / buttons to move the cursor.
Option
Individual
(default): Change settings for one channel
at a time.
8ch BLOCK
: Change settings for eight channels at a time.
BATCH SETUP
: Set a group of multiple channels to be
changed at the same time.
4. Operations differ according to the selected
EDIT MODE
.
o
Individual
selected
The name of the output connector selected in step 1 ap-
pears to the left of the selection area.
Turn the MULTI JOG dial to select an output signal.
Options:
CHANNEL 01
–
CHANNEL 64
(64 options)
Press the MULTI JOG dial to confirm the setting value and
reopen the
OUTPUT ROUTING
setting list.
o
8ch BLOCK
selected
An 8-channel block that includes the output connector se-
lected in step 1 appears to the left of the selection area.
Turn the
MULTI JOG
dial to select an output signal block.
Options:
CHANNEL 01-08
,
CHANNEL 09-16
,
CHANNEL 17-24
,
CHANNEL 25-32
,
CHANNEL 33-40
,
CHANNEL 41-48
,
CHANNEL 49-56
,
CHANNEL 57-64
(8 options)
Press the MULTI JOG dial to confirm the setting value and
reopen the
OUTPUT ROUTING
setting list.
o
BATCH SETUP
selected
RANGE SELECT
appears to the left of the selection area.
Press the MULTI JOG or . and /buttons to move the
blue cursor, and turn the MULTI JOG to set the following
values.
o Slot number and first and last numbers of the range of
output connectors for which you want to change set-
tings
o First number of the channel you want to route
Move the blue cursor to
APPLY
and press the MULTI JOG
dial to open a pop-up confirmation message.
When the confirmation pop-up message is open, press the
MULTI JOG dial to change to setting the multiple select-
ed channels at the same time, and reopen the
OUTPUT
ROUTING
setting list.
When the confirmation pop-up message is open, press the
EXIT [PEAK CLEAR] button to close the message.
