TASCAM DR-701D
7
2 – Names and functions of parts
u DATA dial (ENTER)
Turn to select items and change values on setting screens.
Push to confirm selections on setting screens and to answer
“YES” to confirmation pop-up messages.
Press during recording to add a mark manually.(see “Using
mark functions” on page 27)
i 3// button
Press this button during playback or when stopped to move
to the next mark. When there are no marks, press to skip to
the next file.
Press and hold this button to search forward.
Press this button when a
CH1
/
CH2
/
CH3
/
CH4
item on a
menu page is shown to move the cursor to the channel 3
setting.
On the setting screens, use this button to move the cursor
right.
If a file is selected, the file is loaded and the unit returns to
the Home Screen.
o 4/. button
Press this button to move to the previous mark during
playback or when stopped in the middle of a file. When
there are no marks, press to return to the beginning of the
playback file.
If you press this button when a file is stopped at its
beginning, the unit will skip to the beginning of the previous
file.
Press and hold this button to search backwards.
Press this button when a
CH1
/
CH2
/
CH3
/
CH4
item on a
menu page is shown to move the cursor to the channel 4
setting.
On the setting screens, use this button to move the cursor
left.
p SLATE button
Press and hold during recording, playback or monitoring
to record a slate stone.(see “Recording slate tones” on page
28)

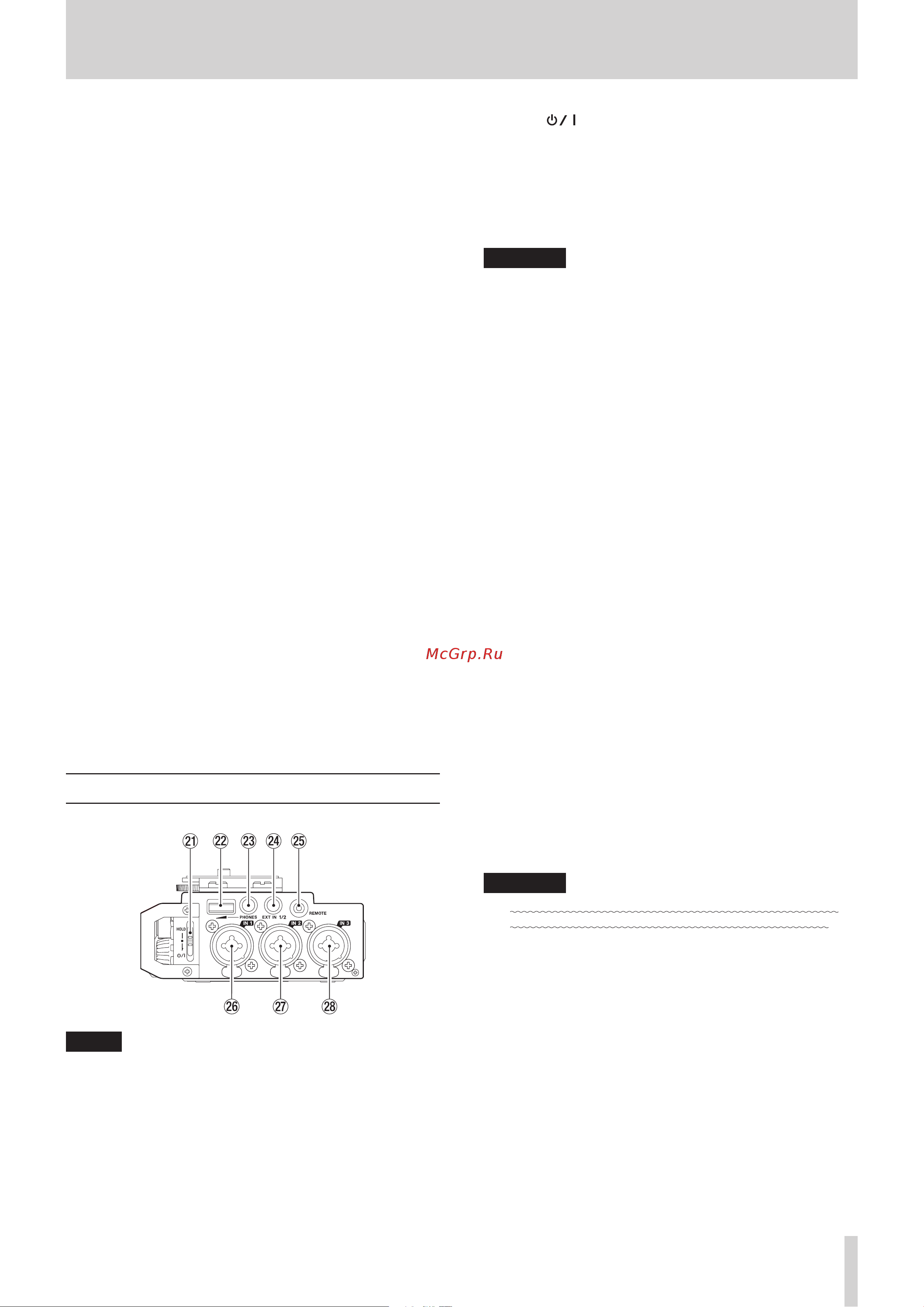

Left side
NOTE
When connecting and using plugs from external devices,
do not apply excessive force to the plugs. In particular,
be careful not to apply too much force when using a
standard to mini plug adapter. Doing so could damage the
equipment.
a HOLD/ switch
Slide this switch down (in the direction of the arrow) to turn
the unit on/off.
Set it to the top position to activate the hold function. All
buttons are inoperative when hold is ON.
s PHONES volume
Use to adjust the volume output from the PHONES jack.
CAUTION
Before connecting headphones, lower the PHONES volume
to the minimum level. Failure to do so could result in a
sudden loud noise that could harm hearing, for example.
d PHONES jack (3.5mm stereo mini jack)
Connect stereo headphones to this stereo mini jack.
Use the PHONES control to adjust the volume.
f EXT IN 1/2 connector (3.5mm stereo mini jack)
Use this input jack to connect a stereo mini jack mic or an
external device.
This jack provides plug-in power.
TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
g REMOTE jack (2.5mm TRS jack)
Connect a TASCAM RC-3F footswitch or TASCAM RC-10
wired remote control (both sold separately) here. This
enables remote starting and stopping of playback and other
functions.(see “10 – Using the REMOTE jack” on page 39)
h IN 1 connector (XLR/TRS)
This balanced analog jack is an XLR mic and standard TRS
jack input.
XLR (1: GND, 2: HOT, 3: COLD)
TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
j IN 2 connector (XLR/TRS)
This balanced analog jack is an XLR mic and standard TRS
jack input.
XLR (1: GND, 2: HOT, 3: COLD)
TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
k IN 3 connector (XLR/TRS)
This balanced analog jack is an XLR mic and standard TRS
jack input.
XLR (1: GND, 2: HOT, 3: COLD)
TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
CAUTION
•
Confirm that phantom power is OFF before connecting a
line level device to an IN 1, IN 2, IN 3 or IN 4 connector.
If you connect a line level device while phantom power is
being supplied, that device and this unit could be damaged.
•
When using a condenser microphone, before connecting to
or disconnecting from an IN 1, IN 2, IN 3 or IN 4 connector,
confirm that the phantom power for that jack is OFF. If you
connect or disconnect a mic while phantom power is being
supplied, that mic and this unit could be damaged.
•
Turn phantom power ON only when using a condenser
microphone that requires phantom power. Turning
phantom power on when a dynamic mic or other mic that
does not require it is connected could damage this unit and
connected equipment.
•
When using condenser mics that require phantom power
and dynamic mics together, be sure to use balanced
dynamic mics. Unbalanced dynamic mics cannot be used
when phantom power is enabled.
