Documenting Process Calibrator
Memory Operations
79
Memory Operations
Saving Results
As Found/As Left test results are automatically saved
at the end of each test routine. Any other time during
MEASURE, SOURCE, or MEASURE / SOURCE you
can press the
Save softkey to save the data on the
display for later review.

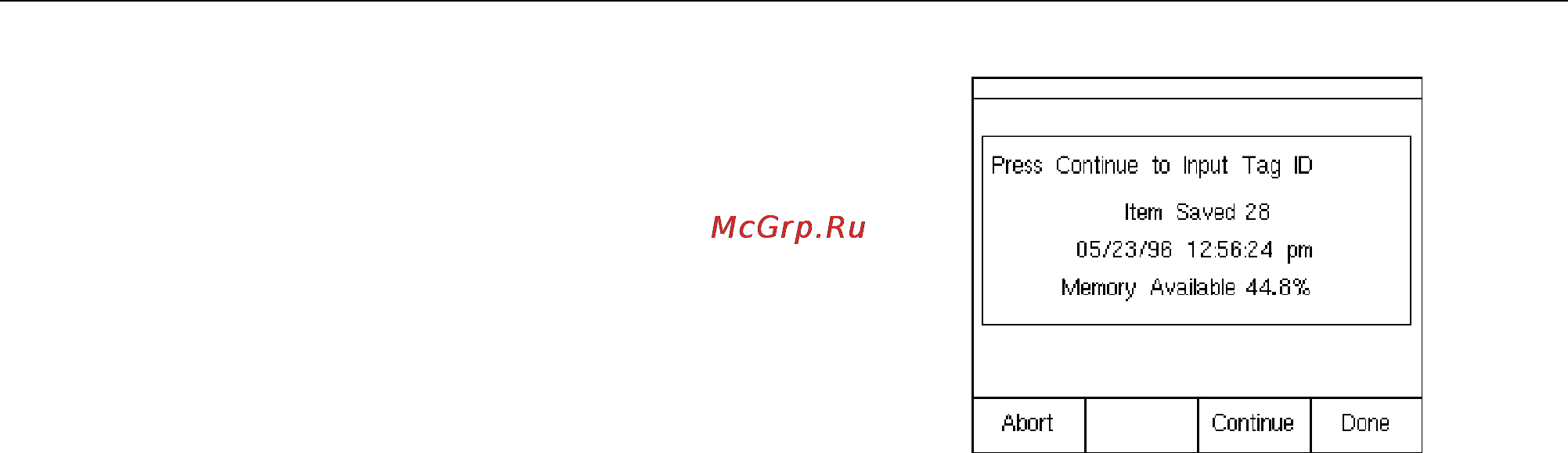

After you press
Save, the calibrator saves the
information on the display and shows a saved result
index number, the date and time, and the percentage
of memory available, as in the following display:
gj49s.eps
If you want to add information to the saved data, the
calibrator has a way for you to do so. If you press the
Continue softkey, the display prompts you to enter
the instrument tag identifier (
Tag), instrument serial
number (
S/N), and operator name (ID), as shown in
the following display:
