6
This example constitutes a non-binding recommendation with regard
to the General Delivery and Warranty Conditions. It is based on the
factory setup and presumes that the motor data has been confi gured
correctly. This recommendation must be verifi ed by the user.

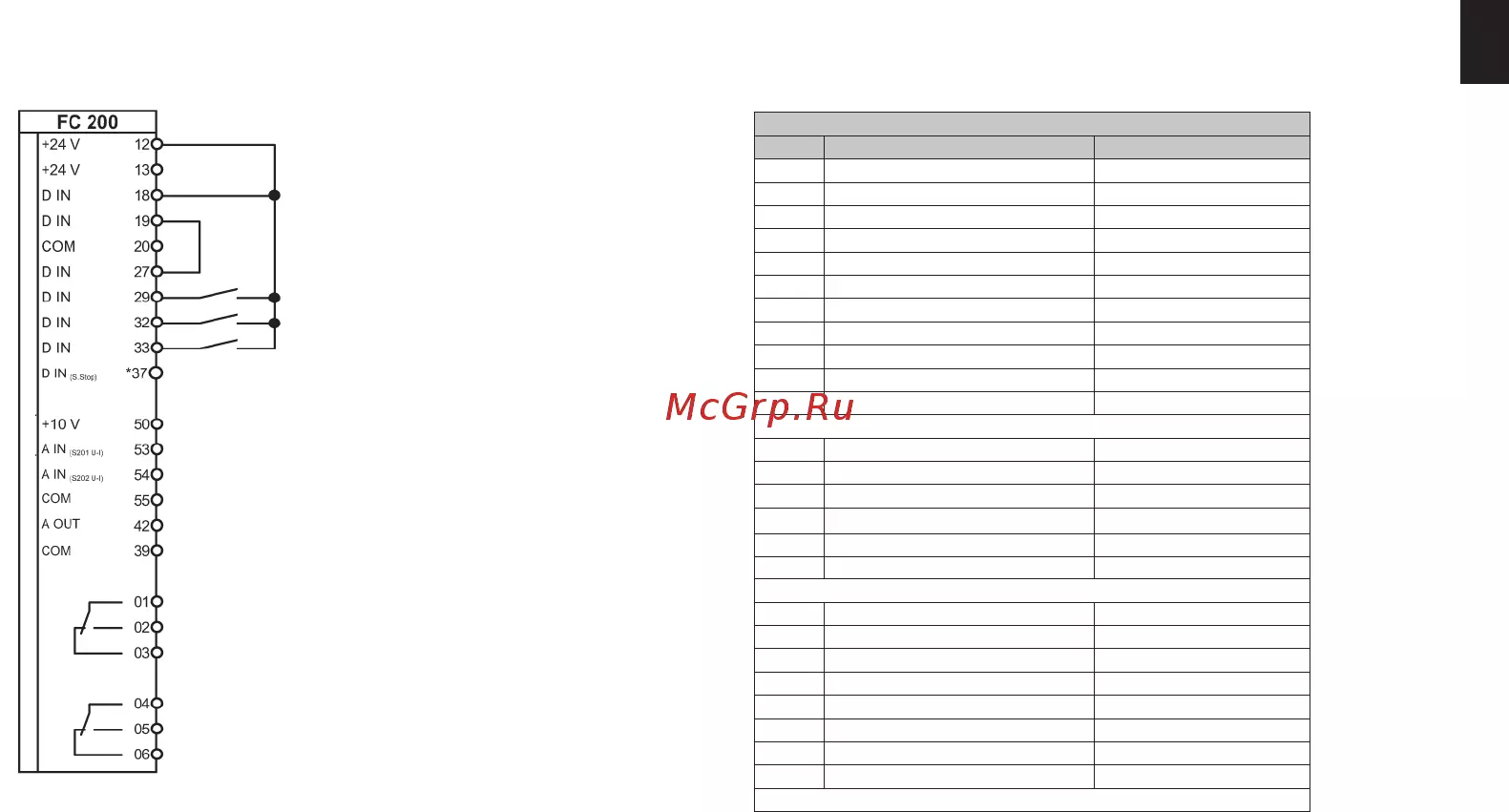

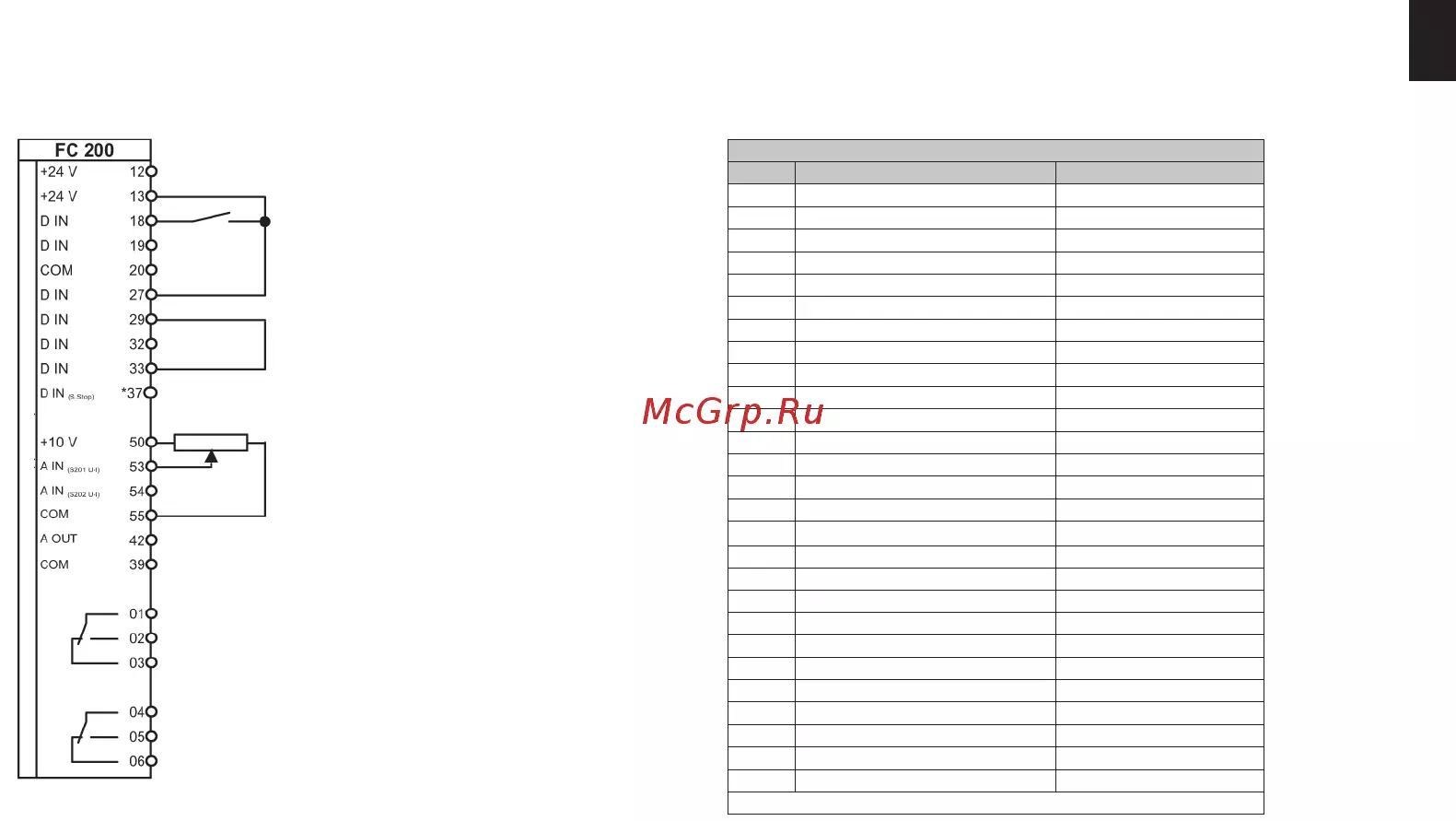

6.6 Fixed speeds
Three diff erent speeds (preset references) can be selected
via fl oating contacts.
Select Speed 1
Select Speed 2
Select Speed 3
Relevant parameters
Par. Function Setting
0-02 Hz/rpm selection [1] Hz
5-10 Terminal 18: digital input [8] Start*
5-11 Terminal 19: digital input [6] Stop (inverse)
5-01 Terminal 27 Mode [1] Output
5-30 Terminal 27: digital output [70] Logic rule 0
5-13 Terminal 29: digital input [16] Preset ref. bit 0
5-14 Terminal 32: digital input [17] Preset ref. bit 1
5-15 Terminal 33: digital input [18] Preset ref. bit 2
Internal logic rule
13-40[0] Boolean 1 [36] Digital input 29
13-41[0] Logic operation 1 [2] OR
13-42[0] Boolean 2 [37] Digital input 32
13-43[0] Logic operation 2 [2] OR
13-44[0] Boolean 3 [37] Digital input 33
References
3-10[1] Preset ref. 1 Desired Speed 1
3-10[2] Preset ref. 2 Desired Speed 2
3-10[4] Preset ref. 4 Desired Speed 3
* Factory setting
*Safe stop as option
Relay 2
Relay 1
