This example constitutes a non-binding recommendation with regard

to the General Delivery and Warranty Conditions. It is based on the

factory setup and presumes that the motor data has been conﬁ gured

correctly. This recommendation must be veriﬁ ed by the user.

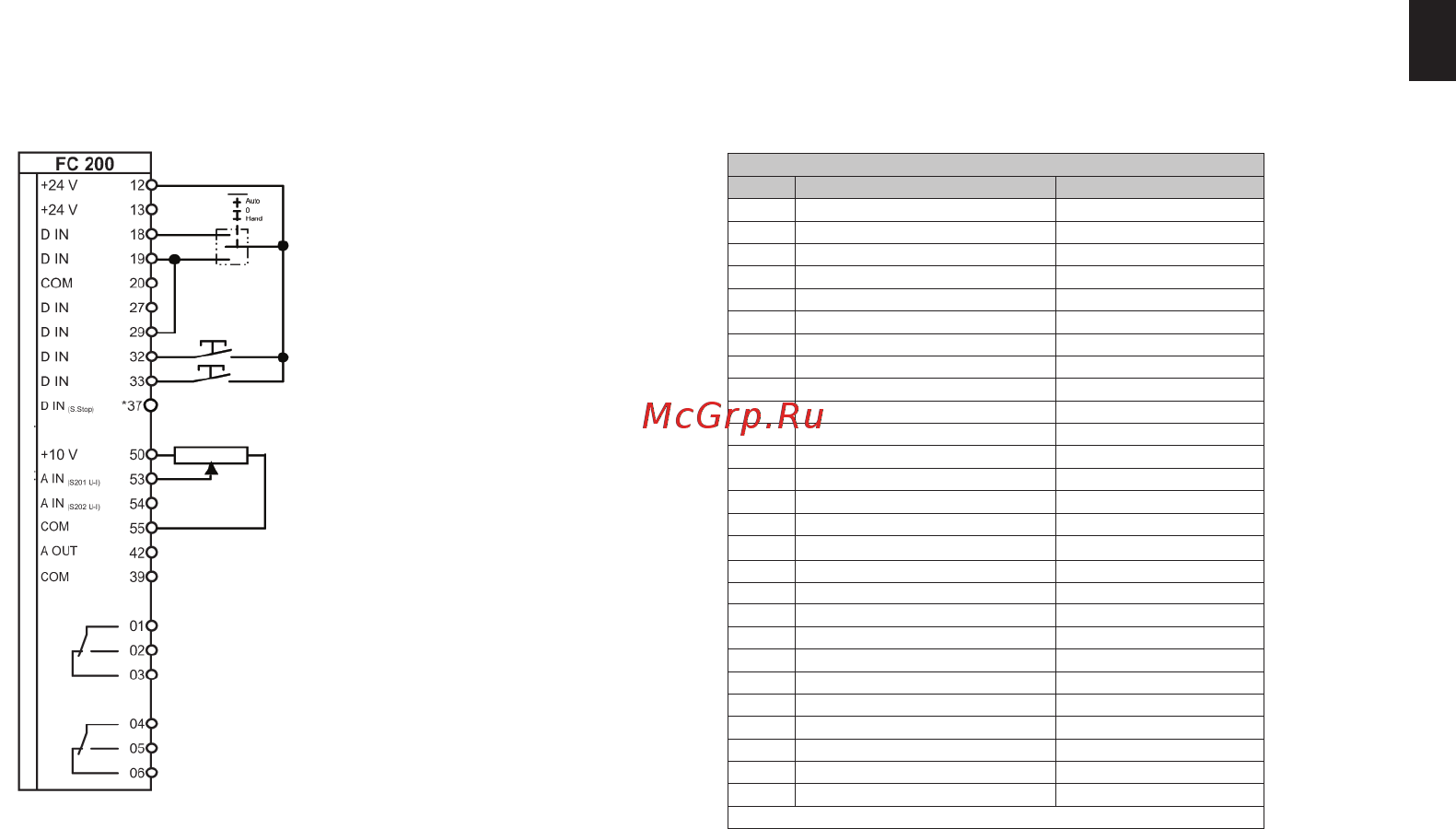

6.8 Manual/Oﬀ /Automatic selection with

reference value input via keypad

In the switch position „Auto“, the reference is active via potentiometer.

In the switch position „Manual“, the reference can be set using the „Up“ and „Down“ buttons.

In the switch position „Oﬀ “, the motor is stopped.

Relevant parameters

Par. Function Setting

5-10 Terminal 18: digital input [8] Start*

5-11 Terminal 19: digital input [8] Start

5-12 Terminal 27: digital input [0] Not used

5-13 Terminal 29: digital input [20] Freeze output

5-14 Terminal 32: digital input [21] Speed up

5-15 Terminal 33: digital input [22] Speed down

3-15 Variable reference 1 [1] Analogue input 53*

* Factory setting

„Auto“ position On

„Manual“ position On

„UP“ button

„DOWN“ button

Analogue reference

*Safe stop as option

Relay 2

Relay 1
