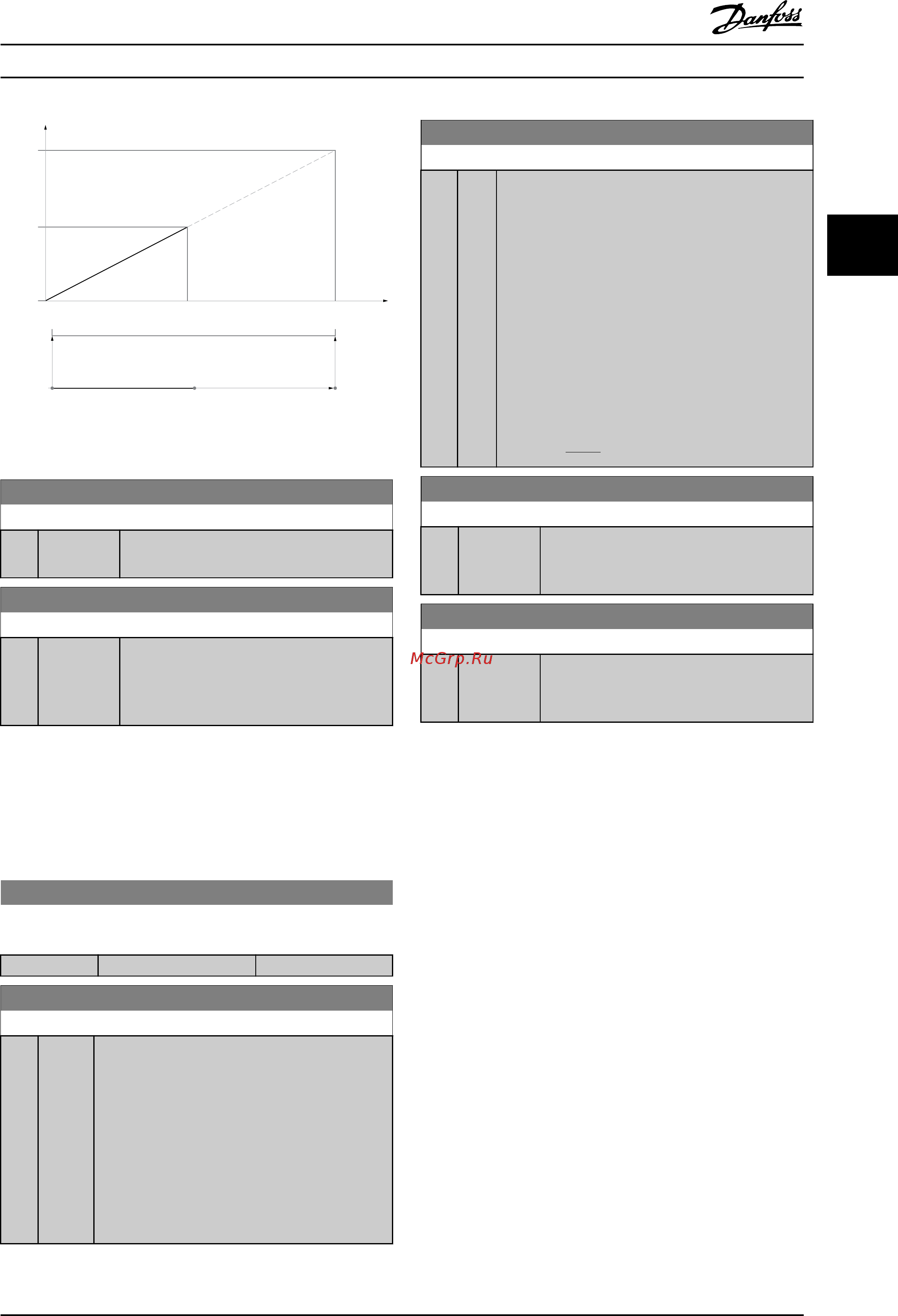

20 mA
10 mA
0/4 mA
100% 200%
0%
Max ref Max ref X 20/10Min ref
130BA857.10
Illustration 3.30
6-53 Terminal 42 Output Bus Control
Range: Function:
0 %* [0 - 100 %] Holds the level of Output 42 if controlled by
bus.
6-54 Terminal 42 Output Timeout Preset
Range: Function:
0 %* [0 - 100 %] Holds the preset level of Output 42.
In
case of a bus timeout and a timeout
function is selected in 6-50 Terminal 42
Output the output will preset to this level.
3.8.8 6-6* Analog Output 2 MCB 101
Analog outputs are current outputs: 0/4 - 20 mA. Common
terminal
(terminal X30/8) is the same terminal and
electrical potential for analog common connection.
Resolution on analog output is 12 bit.
6-60 Terminal X30/8 Output
Same options and functions as 6-50
Terminal 42 Output.
Option: Function:
[0] * No operation
6-61 Terminal X30/8 Min. Scale
Range: Function:
0 %* [0 -
200
%]
Scales the minimum output of the selected
analog signal on terminal X30/8. Scale the
minimum value as a percentage of the maximum
signal value, i.e. 0 mA (or 0 Hz) is desired at 25%
of the maximum output value and 25% is
programmed. The value can never be higher than
the corresponding setting in 6-62 Terminal X30/8
Max. Scale if value is below 100%.
This parameter is active when option module
MCB 101 is mounted in the frequency converter.
6-62 Terminal X30/8 Max. Scale
Range: Function:
100
%*
[0 -
200
%]
Scales the maximum output of the selected analog
signal
on terminal X30/8. Scale the value to the
desired maximum value of the current signal output.
Scale the output to give a lower current than 20 mA
at full scale or 20 mA at an output below 100% of
the maximum signal value. If 20 mA is the desired
output current at a value between 0 - 100% of the
ful-scale output, program the percentage value in
the parameter, i.e. 50% = 20 mA. If a current
between 4 and 20 mA is desired at maximum
output (100%), calculate the percentage value as
follows:
20
mA
/
desired
maximum
current
× 100 %
i
.
e
. 10
mA
:
20
mA
10
mA
× 100 % = 200 %
6-63 Terminal X30/8 Output Bus Control
Range: Function:
0 %* [0 - 100 %] Contains the value to apply to the output
terminal,
when it is configured as Bus
Controlled.
6-64 Terminal X30/8 Output Timeout Preset
Range: Function:
0 %* [0 - 100 %] Contains the value to apply to the output
terminal,
when it is configured as Bus
Controlled Timeout and time-out is detected.
Parameter Description
VLT
®
Refrigeration Drive Programming Guide
MG16H102 - VLT
®
is a registered Danfoss trademark
77
3 3
