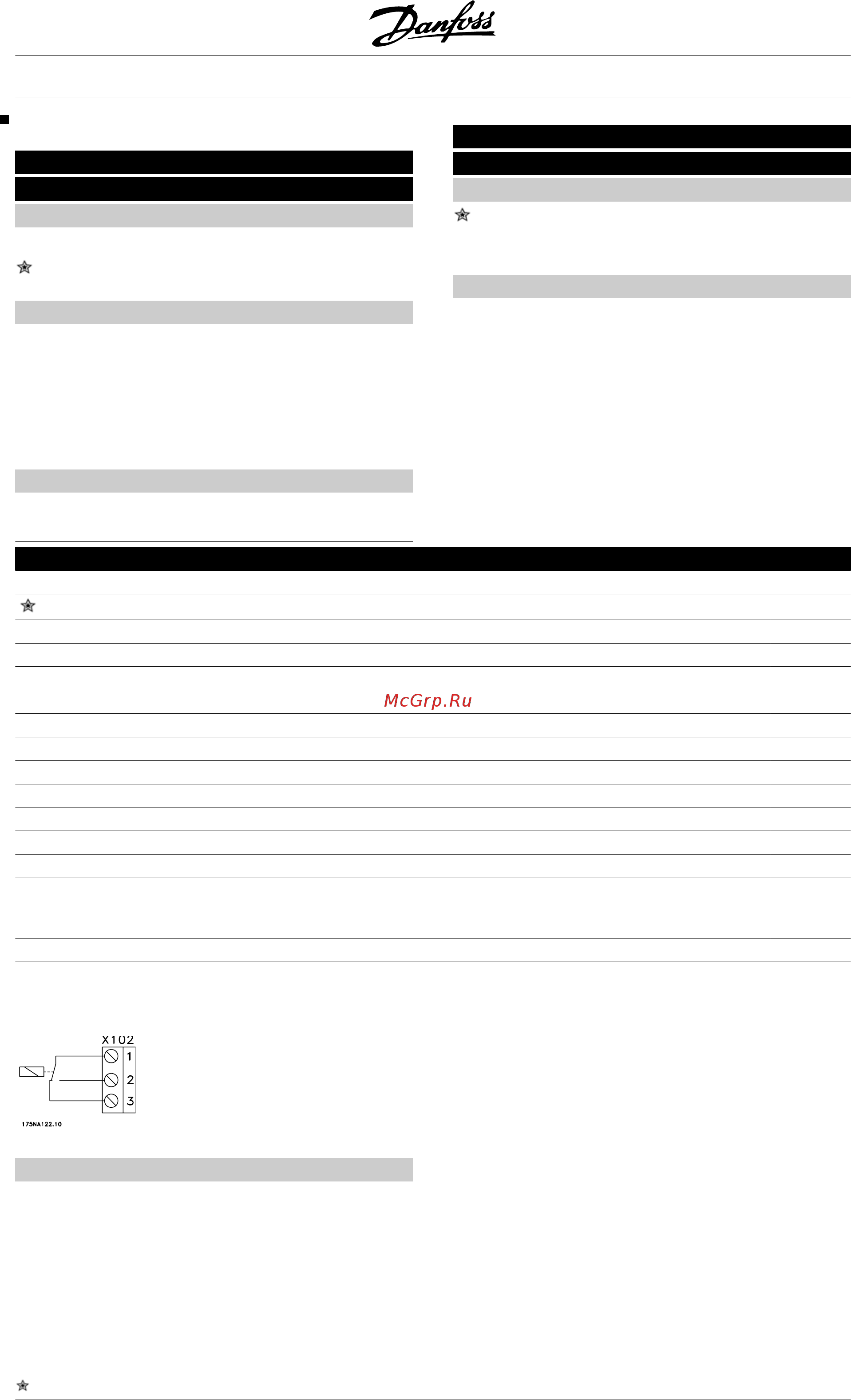

Danfoss FCM 307 [51/106] Fcm series
![Danfoss FCM 307 [51/106] Fcm series](/views2/1560957/page51/bg33.png)
Parameter Group 3-** Input/Output
317 Time out
(LIVE ZERO TIME OUT)
Value:
1 - 99 sec. [1 - 99]
10 sec. [10]
Function:
If the value of the reference signal connected to the
input, terminal 1, falls below 50% of the setting in pa-
rameter 336 for a period longer than the time set in
parameter 317, the function selected in parameter 318
will be activated.
Description of choice:
Set the desired time.
318 Function after time out
(LIVE ZERO FUNCT.)
Value:
Off (OFF) [0]
Stop and trip (STOP AND TRIP) [5]
Function:
This parameter allows a choice of the function to be
activated if the value of the reference signal connected
to the input, terminal 1, falls below 50% of the setting
in parameter 336 for a period longer than the time set
in parameter 317.
If a time-out function (parameter 318) occurs at the
same time as a bus time-out function (parameter 514),
the time-out function (parameter 318) will be activated.
323 Terminal X102, relay function (RELAY FUNC.)
Settings:
No function
(NO OPERATION) [0]
Ready signal (UNIT READY) [1]
Enable, no warning (ENABLE/NO WARNING) [2]
Running (RUNNING) [3]
Running, no warning (RUNNING NO WARNING) [4]
Running on reference, no warning (RUNNING ON REFERENCE) [5]
Fault (FAULT) [6]
Fault or warning (FAULT OR WARNING) [7]
Current limit (CURRENT LIMIT) [8]
Thermal warning (THERMAL WARNING) [9]
Reversing (REVERSE) [10]
Control word bit 11 (CONTROL WORD BIT 11) [11]
Control word bit 12 (CONTROL WORD BIT 12) [12]
Mechanical brake (MECHANICAL BRAKE) [20]
Sleep mode (SLEEP MODE) [21]
The relay output can be used to give the present status
or a warning.
Relay
1 - 3 break, 1 - 2 make
Max. 250 V AC, 5Amp.
Description of choice:
Unit Ready signal, the FC motor is ready for use.
Enable/no warning, the FC motor is ready for use; no
start or stop command has been given (start/ disable).
No warning.
Running, A start command has been given.
Running no warning, A start command has been given.
No warning.
Running on reference, no warning, speed according to
reference.
Fault, output is activated by alarm.
Fault or warning, the output is activated by alarm or
warning.
Current limit, the current limit in parameter 221 has
been exceeded.
Thermal warning, above the temperature limit in the
frequency converter.
Reverse. Logic '1' = relay activated, 24 V DC on the
output when the direction of rotation of the motor is
VLT
®
FCM Series
= factory setting, () = display text, [] = value for use in communication via serial communication port
MG.03.H6.02 - VLT
®
is a registered Danfoss trademark 51
