Integration of frequency converter and motor

The Danfoss VLT frequency converter integrated onto

the asynchronous motor gives infinite speed control in

one unit.

The VLT DriveMotor FCM 300 Series is a very com-

pact alternative to the ordinary solution with VLT fre-

quency converter and motor as separate units. The

frequency converter is attached instead of the motor

terminal box, and it is no higher than the standard ter-

minal box, nor wider or longer than the motor (see

chapter 6).

Installation is made extremely easy. Panel space is not

a problem. There is no need for special details on wir-

ing to meet the EMC directive, since motor cables are

not necessary. The only connections are mains and

control connections.

Factory-set adaption between frequency converter

and motor gives precise and energy efficient control in

addition to eliminating pre-setting on site.

The FC motor can be used in stand alone SYSTEMs

with traditional control signals, such as start/stop sig-

nals, speed references and closed loop process con-

trol or in multiple drive SYSTEMs with control signals

distributed by a field bus.

Combination of fieldbus and traditional control signals

and closed loop PID control is possible.

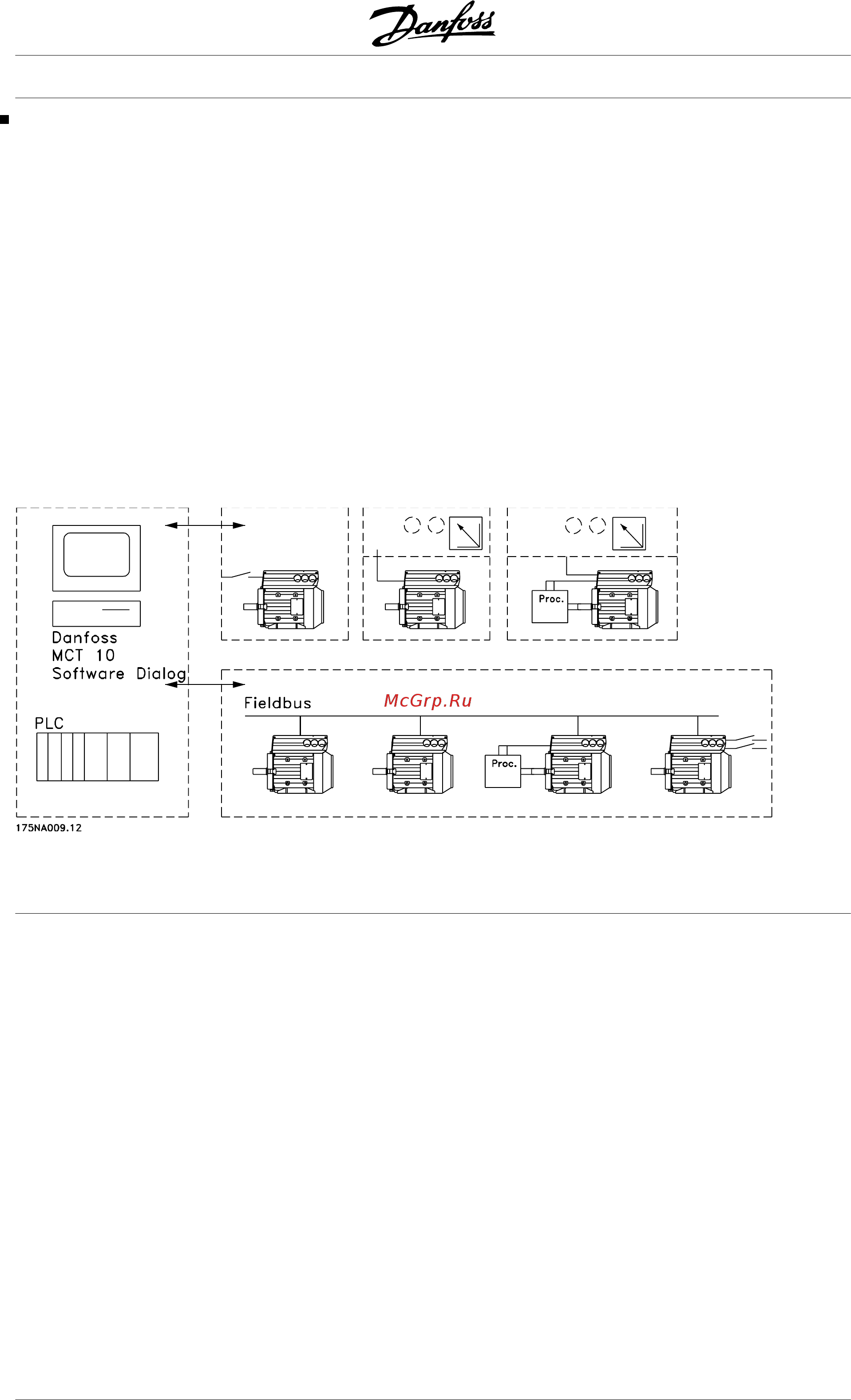

Control structures

VLT

FCM Series
