Rear I/O Panel
Installing antennas

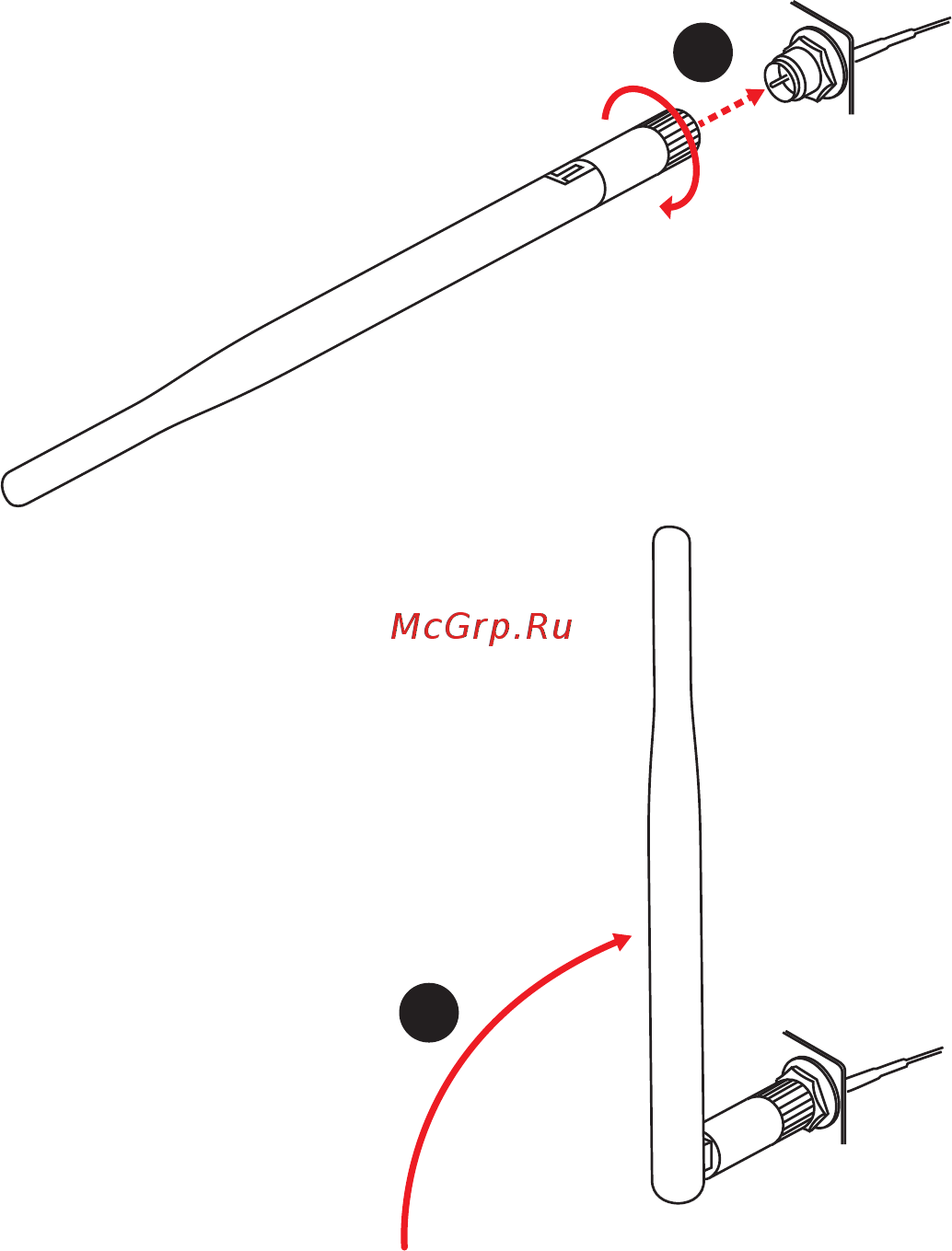

1. Screw the antennas tight to the antenna connectors as shown below.
2. Orient the antennas.
1
2
