MSI MPG X299M GAMING EDGE AC [35/96] M2_1 3 m slots key m

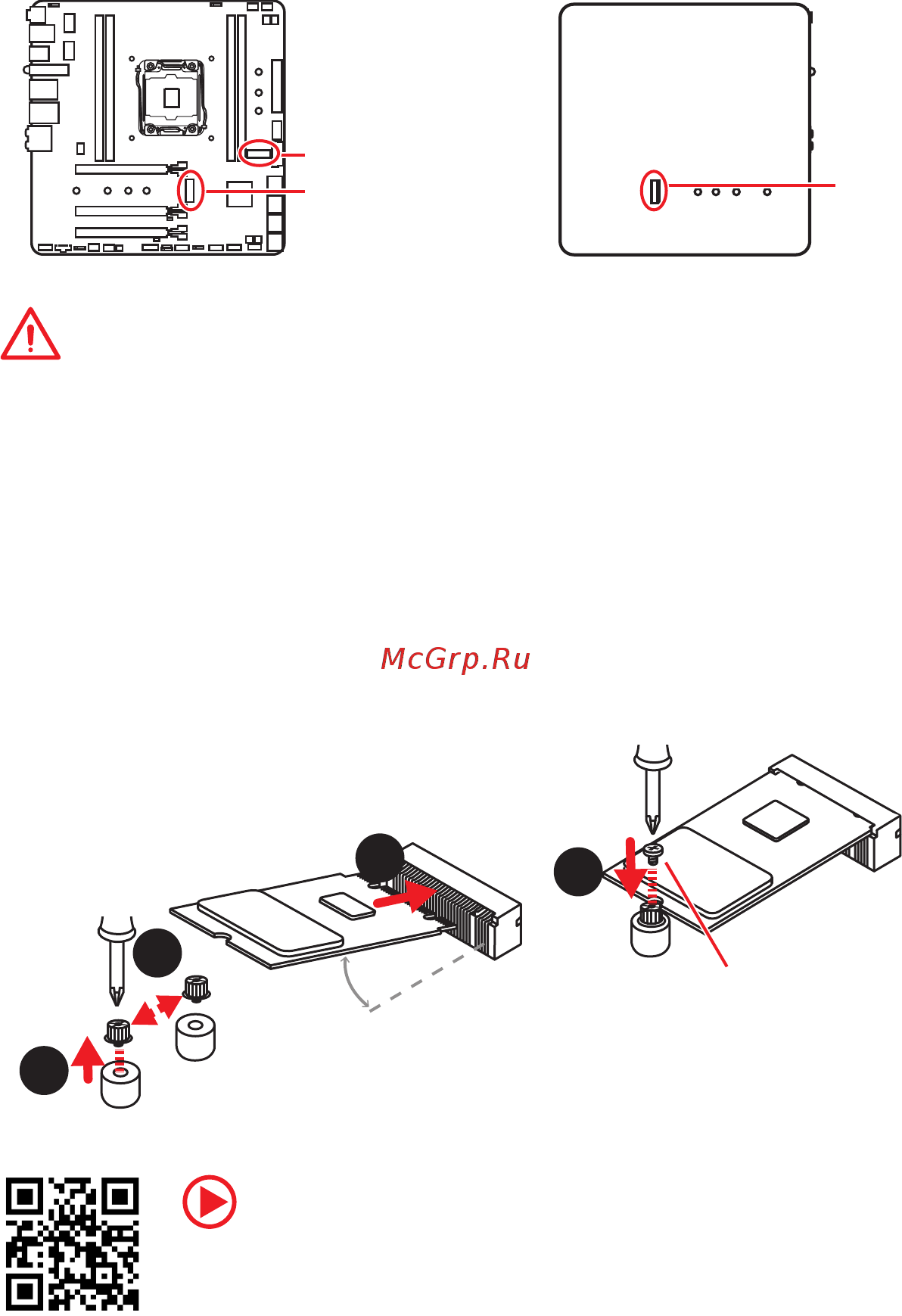

![MSI MPG X299M GAMING EDGE AC [35/96] M2_1 3 m slots key m](/views2/1566228/page35/bg23.png)
35
Overview of Components
M2_1~3: M.2 Slots (Key M)
Installing M.2 device
1
2
3
30°
1. Loosen the M.2 riser screw from the
motherboard.
2. Move and fasten the M.2 riser screw to
the appropriate location for your M.2
SSD.
3. Insert your M.2 SSD into the M.2 slot at a
30-degree angle.
4. Secure the M.2 SSD in place with
the supplied M.2 screw.
4
Supplied M.2 screw
M2_1
M2_2
M2_3
Important
y
M2_3 is only available when installing the 44 lanes CPU.
y
Intel
®
RST only supports PCIe M.2 SSD with UEFI ROM.
y
Intel
®
Optane™ Memory Ready.
Video Demonstration
Watch the video to learn how to Install M.2 module.
http://youtu.be/JCTFABytrYA
