Air chillers and heat pumps - MPI DC
MPI DC 8 - 29 kW
MPI DC 008
122
148 107
173
103
97
129
558.5
464
758
186
186
472
405.3
1241
1216
451
492
1 m
1 m
1,5 m
1,5 m
582
1 ENTRATA ACQUA 1" FEMMINA
2 USCITA ACQUA 1" FEMMINA
3 SCARICO VALVOLA DI SICUREZZA CON PORTAGOMMA
4 ALIMENTAZIONE ACQUA 1/2" MASCHIO (RUBINETTO OPTIONAL)
5 SCARICO ACQUA 1/2" FEMMINA
6 ALIMENTAZIONE ELETTRICA Ø28
7 QUADRO ELETTRICO
8 ANTIVIBRANTI
8
7
6
5 2
8
1
7
3
4
LEGEND
1 Water inlet 1" female
2 Water outlet 1" female
3
Safety valve discharge outlet provided with rubber
ring holder
4 Water supply ½" male (optional tap)
5 Water drainage ½" female
6 Power supply Ø 28 mm
7 Electric control board
8 Fastening points for vibration dampers (accessory)
122
148 107
173
103
97
129
558.5
464
758
186
186
472
405.3
1241
1216
451
492
1 m
1 m
1,5 m
1,5 m
582
1 ENTRATA ACQUA 1" FEMMINA
2 USCITA ACQUA 1" FEMMINA
3 SCARICO VALVOLA DI SICUREZZA CON PORTAGOMMA
4 ALIMENTAZIONE ACQUA 1/2" MASCHIO (RUBINETTO OPTIONAL)
5 SCARICO ACQUA 1/2" FEMMINA
6 ALIMENTAZIONE ELETTRICA Ø28
7 QUADRO ELETTRICO
8 ANTIVIBRANTI
8
7
6
5 2
8
1
7
3
4

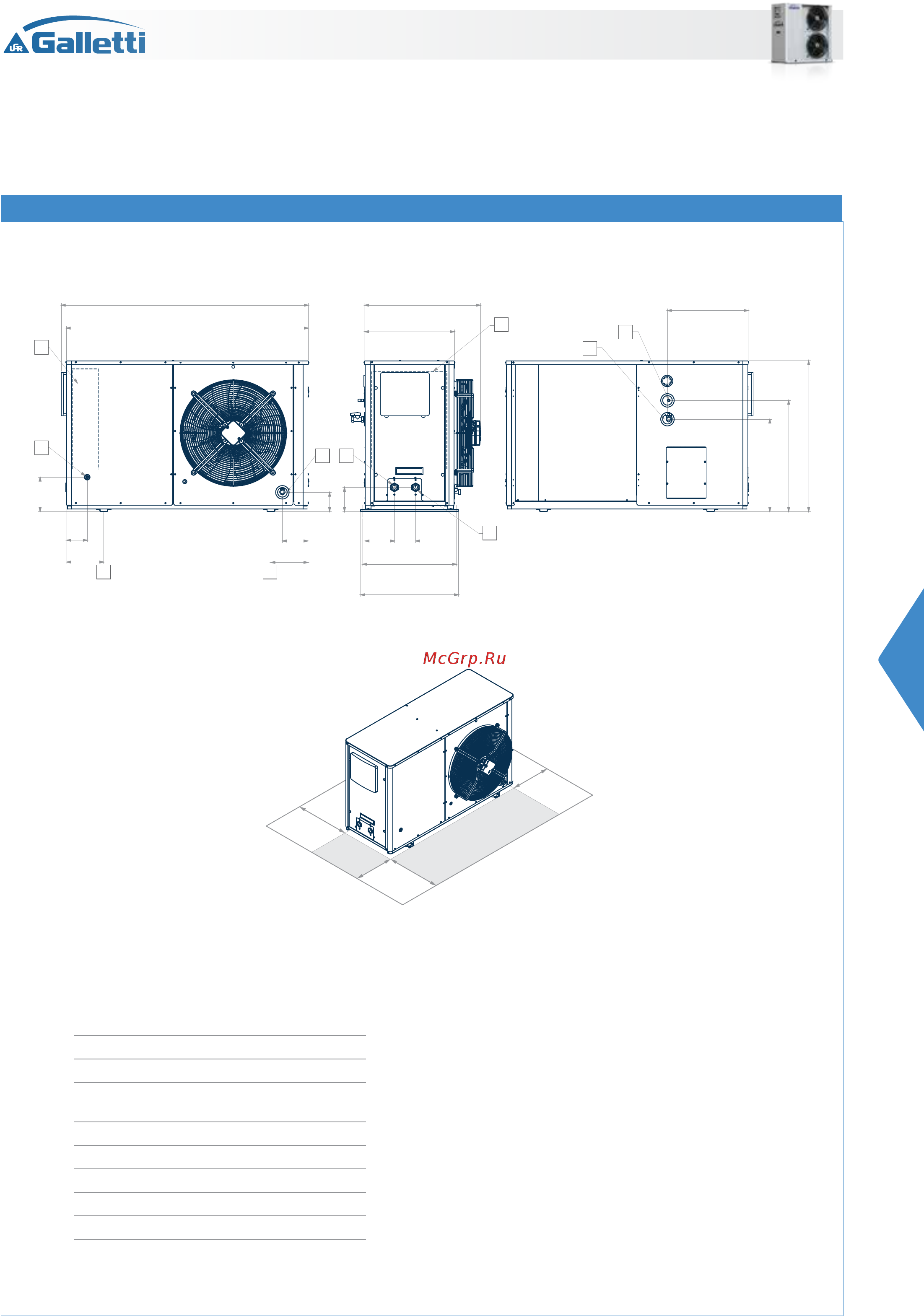

Dimensional drawings
