151
galletti.com VM66000387-C
Air chillers and heat pumps - MPI DC
MPI DC 8 - 29 kW
LEGEND
1 Water inlet 1" ¼ female
2 Water outlet 1" ¼ female
3
Safety valve discharge outlet provided with rubber
ring holder
4 Water supply ½" male (optional tap)
5 Water drainage ½" female
6 Power supply Ø 28 mm
7 Electric control board
8 Fastening points for vibration dampers (accessory)
1564
1590
1273
241.51112.4207
601
568
358.3
1 m
1,5 m
1,5 m
127
150
350.5
201
297.8
983
1171.5
1021.5
1126
291
605
1
ENTRATA ACQUA 1" 1/4 FEMMINA
2
USCITA ACQUA 1" 1/4 FEMMINA
3
SCARICO VALVOLA DI SICUREZZA CON PORTAGOMMA
4
ALIMENTAZIONE ACQUA 1/2" MASCHIO (RUBINETTO OPTIONAL)
5
SCARICO ACQUA 1/2" FEMMINA
6
ALIMENTAZIONE ELETTRICA Ø28mm
7
QUADRO ELETTRICO
8
PUNTI DI FISSAGGIO ANTIVIBRANTE (ACCESSORIO)
13
2
6
4
7
5
8
8
libero da ostacoli
clear area
1564
1590
1273
241.51112.4207
601
568
358.3
1 m
1,5 m
1,5 m
127
150
350.5
201
297.8
983
1171.5
1021.5
1126
291
605
1
ENTRATA ACQUA 1" 1/4 FEMMINA
2
USCITA ACQUA 1" 1/4 FEMMINA
3
SCARICO VALVOLA DI SICUREZZA CON PORTAGOMMA
4
ALIMENTAZIONE ACQUA 1/2" MASCHIO (RUBINETTO OPTIONAL)
5
SCARICO ACQUA 1/2" FEMMINA
6
ALIMENTAZIONE ELETTRICA Ø28mm
7
QUADRO ELETTRICO
8
PUNTI DI FISSAGGIO ANTIVIBRANTE (ACCESSORIO)
13
2
6
4
7
5
8 8
libero da ostacoli
clear area
MPI DC 023 - 029

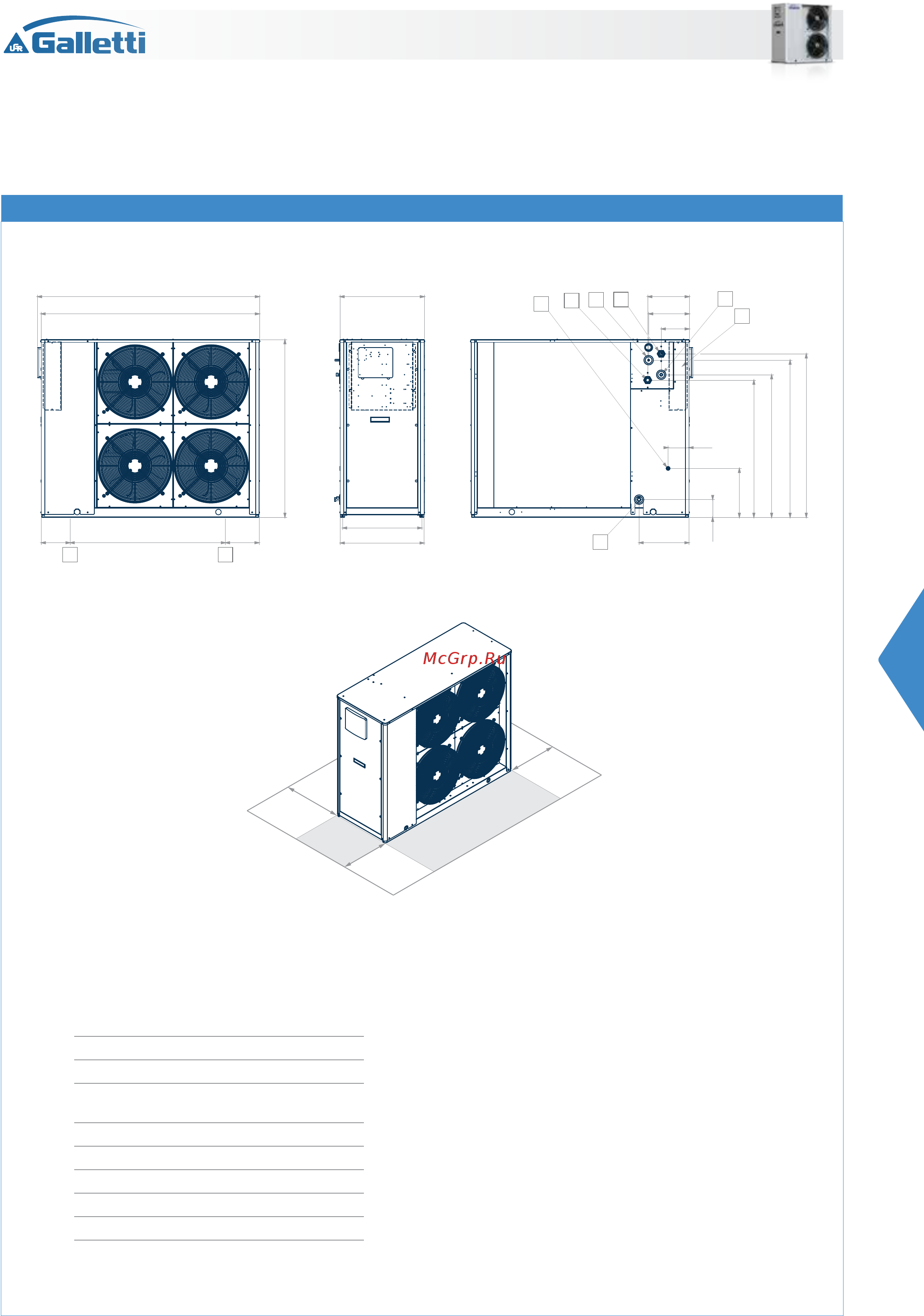

Dimensional drawings
