LCE
RG66004766_rev.05
33
10 ROUTINE MAINTENANCE AND CHECKS
10.1 WARNINGS
For safety reasons concerning installation, the right measures and precautions
should be taken to prevent the ambient temperature from rising above 50°C
whether the machine is switched on or off.
All the operations described in this chapter MUST ALWAYS BE PERFORMED BY
QUALIFIED PERSONNEL.
Before carrying out any work on the unit or accessing internal parts, make sure
you have disconnected it from the mains electricity supply.
The upper part and outlet pipe of the compressor may reach temperatures as high
as 110°C. Be especially careful when working in the surrounding area while the
unit is running.
Be especially careful when working in proximity to finned coils since the 0.11 mm-
thick aluminium fins can cause superficial injuries due to cuts.
After completing maintenance work, always place the panels enclosing the units
back and secure them with the fastening screws provided.
For the safety of the person conducting maintenance work on the LCE units it is
compulsory to turn the main switch off before performing said maintenance work.

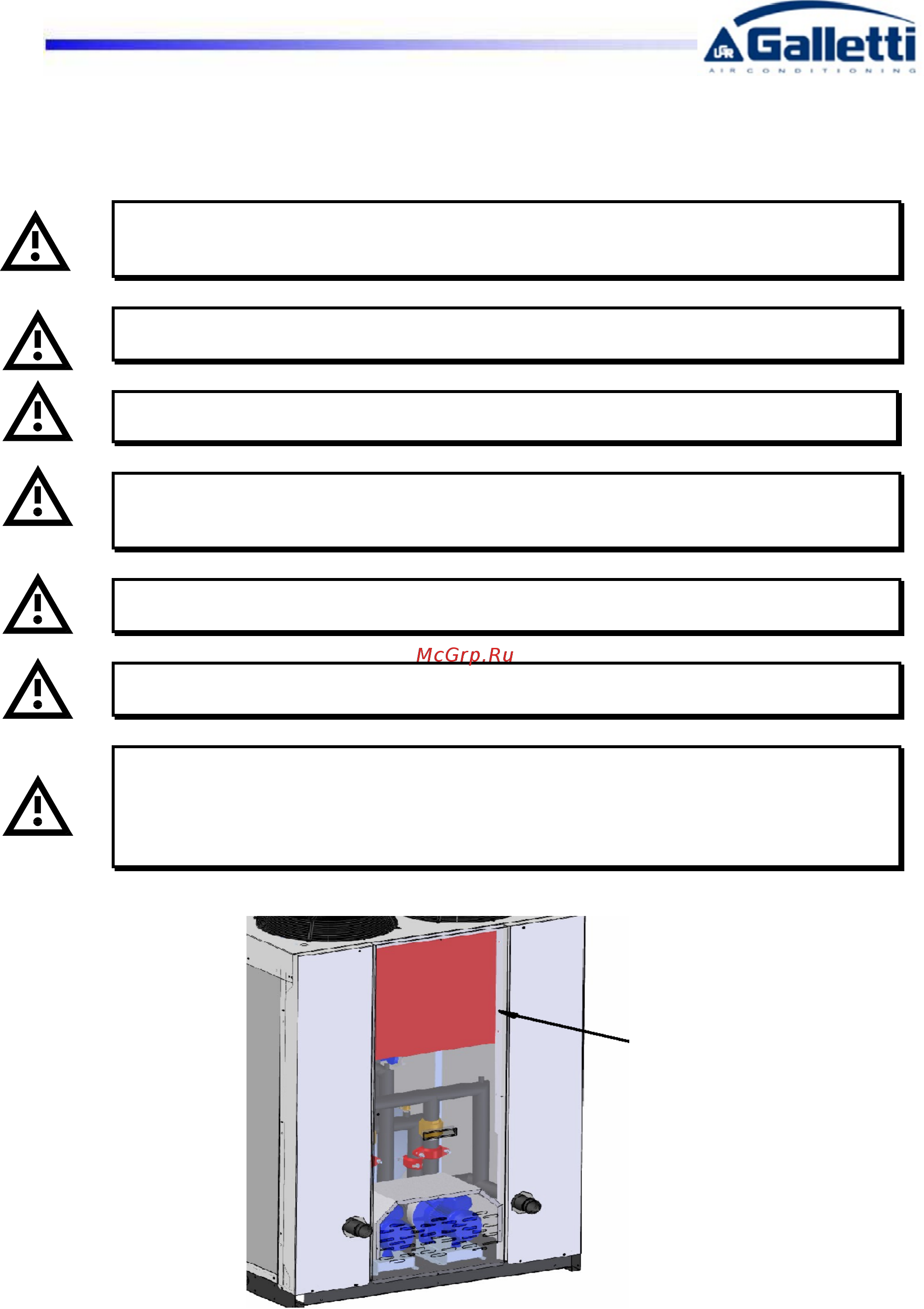

Access to the fan compartment has been fitted with a second safety panel (see
fig.) with the sign “warning! moving parts” in order to prevent injuries caused by
the fans while they are running with the unit in operation.
Rear of the LCE unit
10.2 GENERAL INFORMATION
It is a good idea to carry out periodic checks to ensure that the unit is working properly:
Check the efficiency of all the control and safety devices as previously described.
