LCE
RG66004766_rev.05
53
Rubber anti-vibration devices

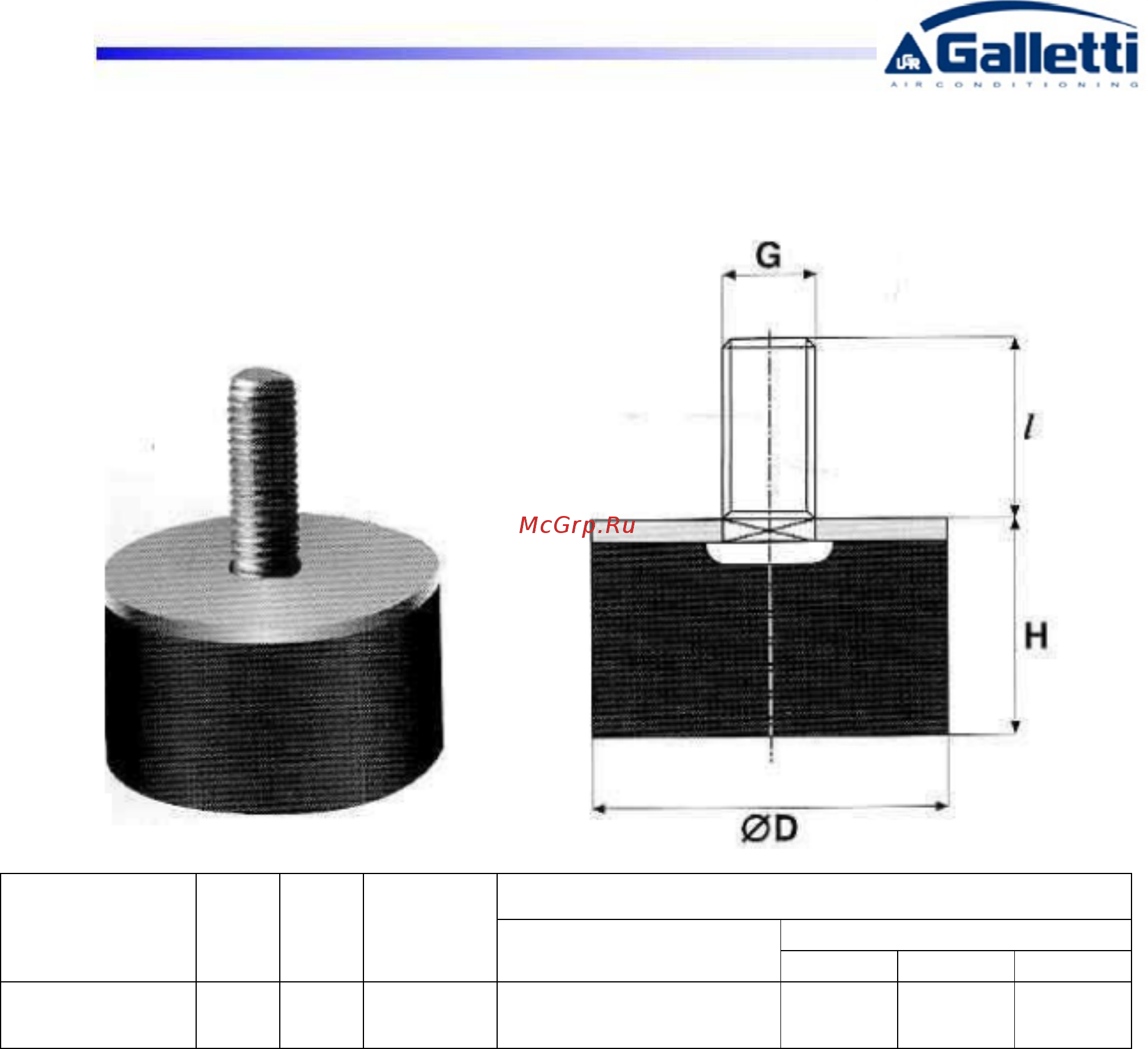

Upon request, LCE Frame 1÷5 units can be fitted with the rubber anti-vibration devices below:
Reference code øD H G x l
Compression stress
Load (daN)
f (mm)
*
43° Sh 57° Sh 68° Sh
DD10040 100 40 M16 x 45
80,0
300,0
500,0
0,91
3,43
5,72
0,50
1,90
3,18
0,35
1,33
2,33
* Indicative values due to the tolerances of the hardnesses of the elastomer and other factors. They may be verified if necessary.
NOTE: For the exact position of every pin please refer to the dimensional drawing enclosed.
