Emotron FLD48-016-2Y [36/68] Master follower
![Emotron FLD48-006-54 [36/68] Master follower](/views2/1574010/page36/bg24.png)
32 Control Connections CG Drives & Automation, 01-6142-01r0

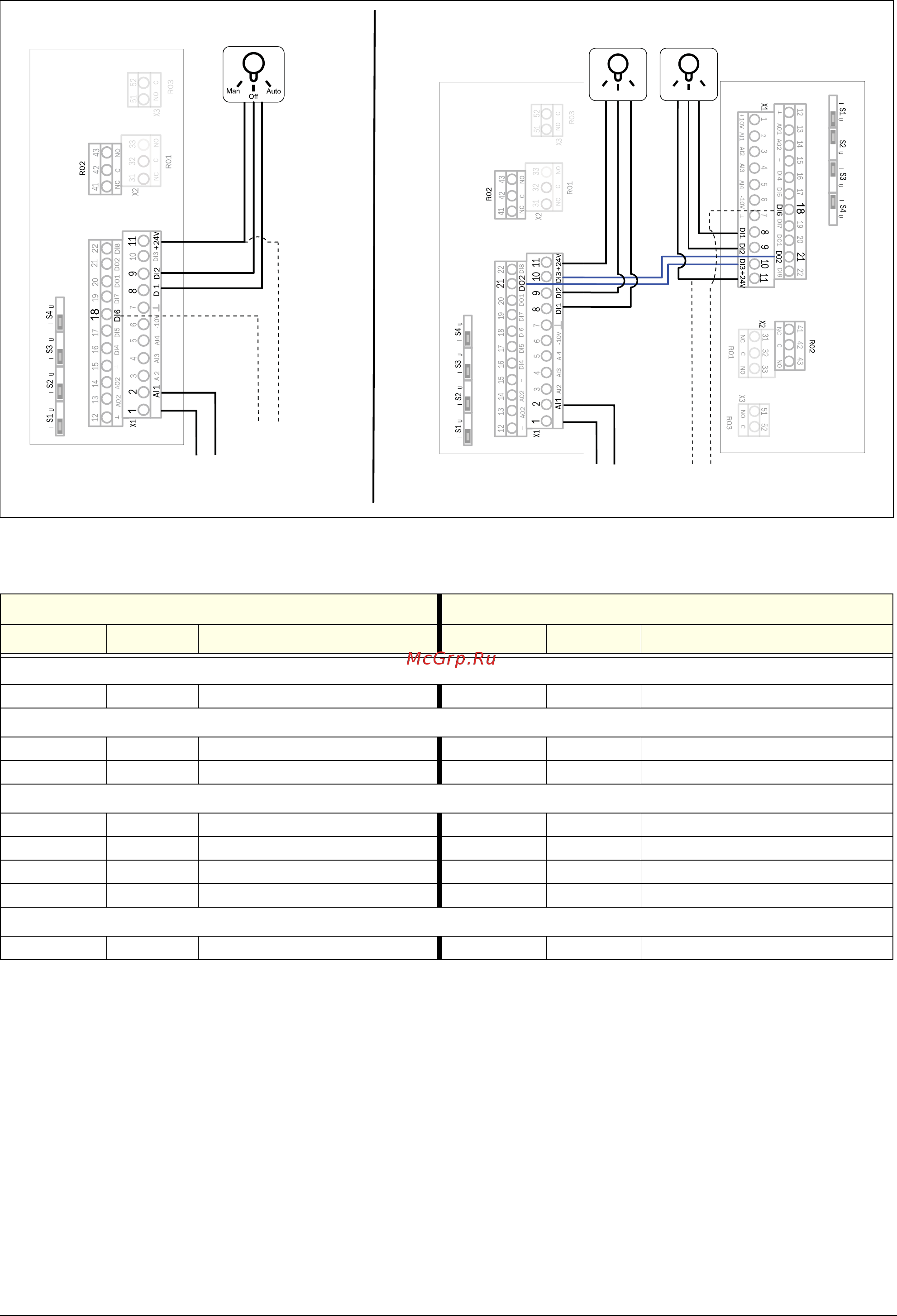

Fig. 38 General control I/O wiring.
+10 V
Man
Auto
Off
Man
Auto
Off
+10 V
Master
Follower
Overflow
level switch (optional)
Level sensor
Stand alone
Overflow
level switch
Level sensor
(optional)
Table 19 Terminals and description of functions.
Stand alone / Master Follower
Terminal Name Function Terminal Name Function
Analogue inputs
2 AnIn 1 Level sensor
Outputs
1 +10V +10V DC supply voltage
11 +24V +24V DC supply voltage 11 +24V +24V DC supply voltage
Digital inputs
8 DigIn 1 Auto run 8 DigIn 1 Auto run
9 DigIn 2 Forced run 9 DigIn 2 Forced run
10 DigIn 3 FlowLinkIn (Follower feedback) 10 DigIn 3 FlowLinkIn (Follower control)
22 DigIn 6 Overflow level switch (optional) 22 DigIn 6 Overflow level switch (optional)
Digital outputs
21 DigOut 2 FlowLinkOut (Follower control) 21 DigOut 2 FlowLinkOut (Follower feedback)
