CG Drives & Automation, 01-6142-01r0 Getting Started 39
5. Getting Started
This chapter is a step by step guide that will show you the
quickest way to get the pumps running.
We assume that:
• the AC drive is mounted on a wall or in a cabinet as in
the chapter 2. page 11.
• mains and motor cable are connected according to
chapter 3.3 page 23.
• control cables are connected according to chapter 4.4
page 31.
FlowDrive can operate as a Standalone unit (1 drive) or in a
Master-Follower configuration (2 drives).
Sections
Chapter 5.1 - Describes how to use the function keys on the
control panel.
Chapter 5.2 - Covers generic configuration like language
and motor parameters.
Chapter 5.3 - Describes configuration of level control
parameters related to the pump sump.
Chapter 5.4 - Describes how to start up the system and
make sure everything is correctly configured.
Chapter 5.5 - Run the Auto tune program.
Chapter 5.6 - Configuration of additional features.
5.1 Function keys
The function keys operate the menus and are also used for
programming and read-outs of all the menu settings.
5.1.1 Using the function keys

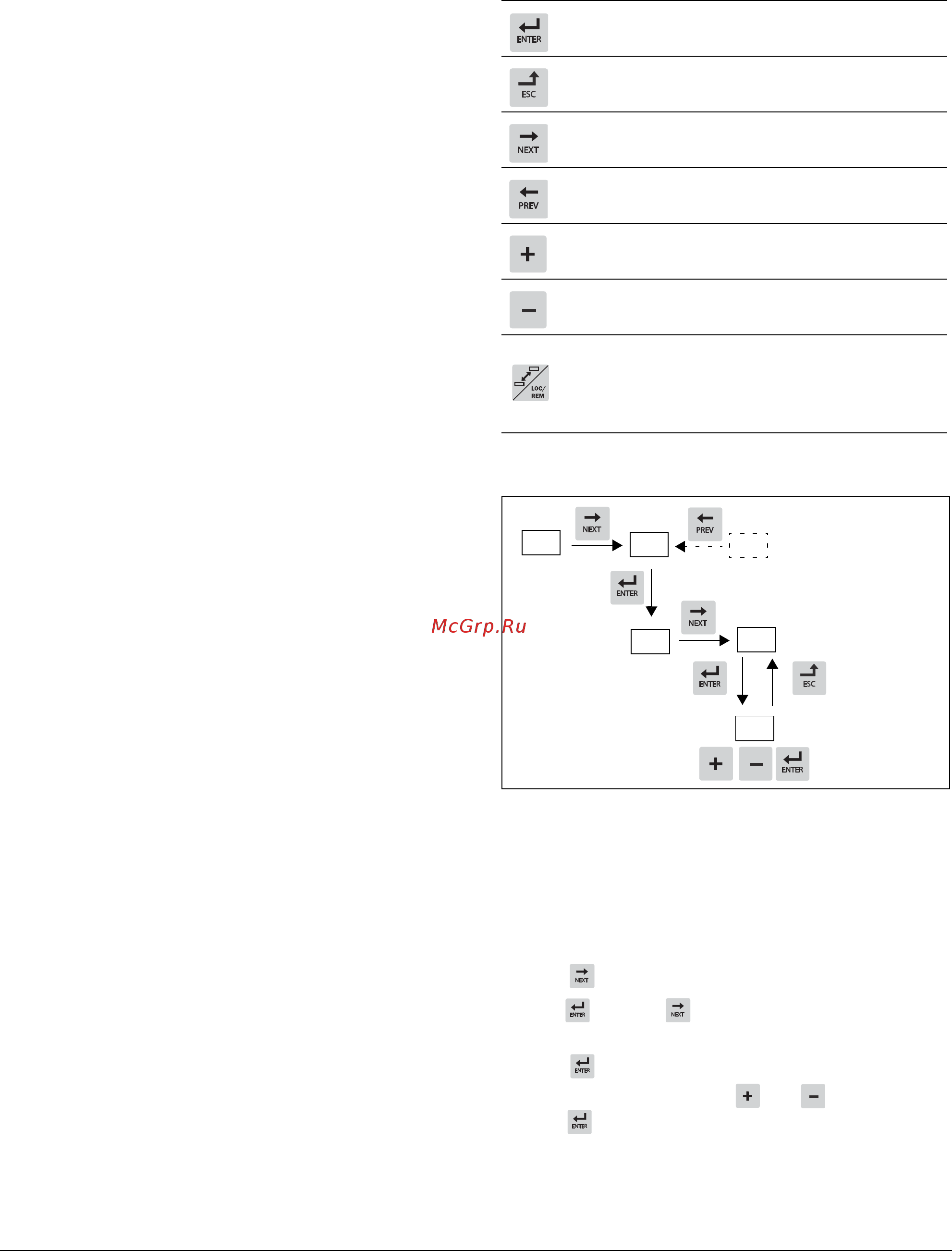

Fig. 48 Example of menu navigation when entering motor
voltage
Example:
Setting Motor data.
Menu [100], “Preferred View” is displayed when started.
1. Press to display menu [200], “Main Setup”.
2. Press and then two times to display menu [220],
“Motor Data”.
3. Press to display menu [221] and set motor voltage.
4. Change the value using the and keys. Confirm
with .
step to lower menu level or confirm changed setting
step to higher menu level or ignore changed setting
step to next menu on the same level
step to previous menu on the same level
increase value or change selection
decrease value or change selection
- Toggle between menus in the toggle loop
- Switching between local and remote control
- Change the sign of a value
ESC
NEXT
100
200
300
220
221
210
NEXT
ESC
NEXT
NEXT
NEXT
