Riotec / Riotec Z

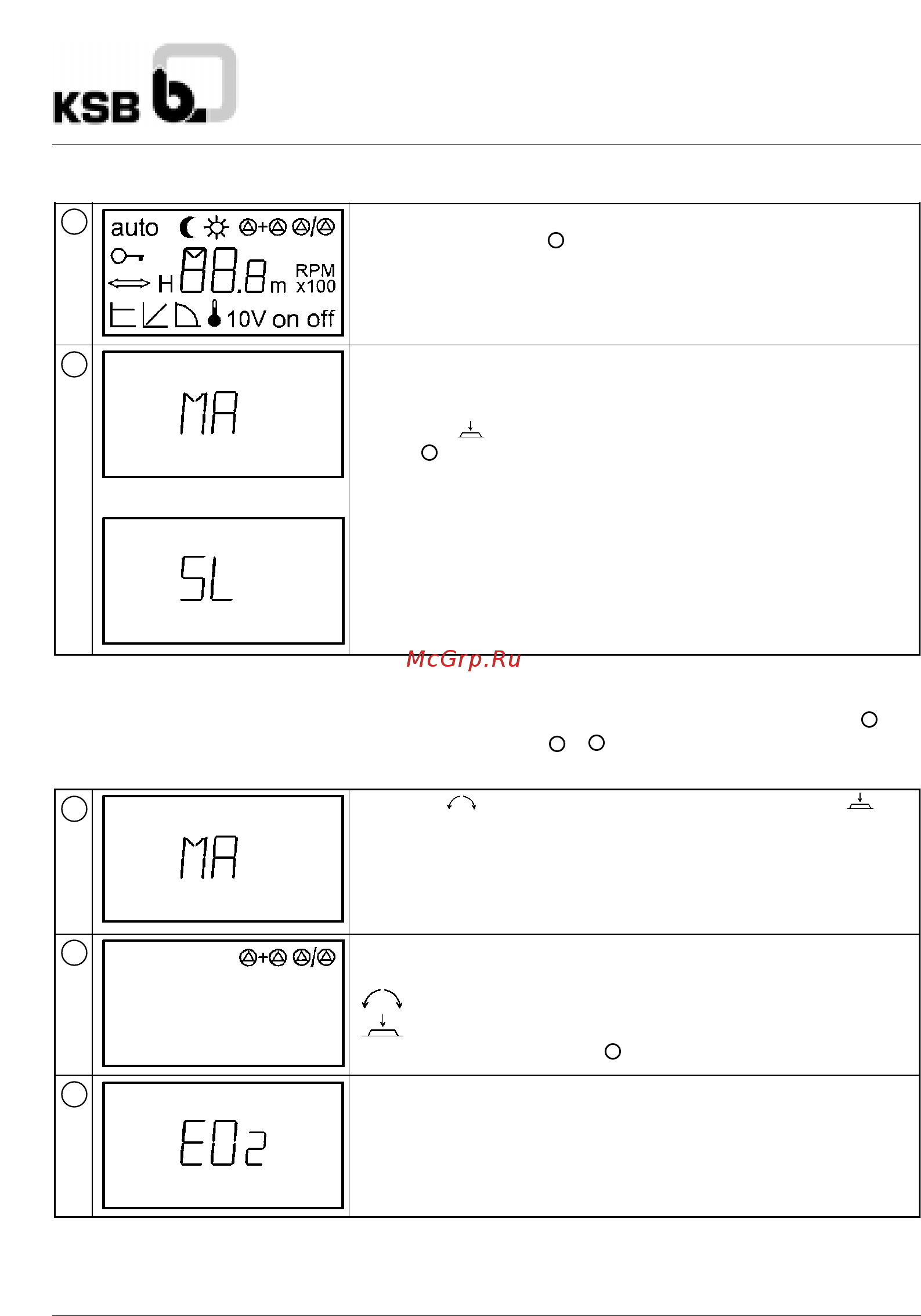

Double pump mode: initial setting when starting up for the first time

After switching on the module, all symbols appear on the display for

2 seconds. Then menu appears.

The symbol MA (= master) blinks on the display of both pumps.

Should the settings not be altered, both pumps will run at a constant

speed (H

/2 H

max.

where Q = 0).

By pressing the setting button on the left-hand pump the setting

“mode” appears on the display. SL (= slave) automatically appears

on the display of the right-hand pump.

Consequently, the left-hand pump is the master and the right-hand

pump the slave. The tuning button on the slave pump is no longer of

importance. No more settings can be made here.

Double pump mode: Menu order during normal use:

After switching on the module, all symbols appear on the display for 2 seconds. The current setting then

appears. By scrolling through the MA display, the menu order … is the same as for a single pump. Then

the MA menu appears and remains on the screen permanently.

By turning the MA, SL appears on this display. When the

SL has been confirmed by pressing the button, the other (right-hand)

pump becomes master. This is how a swop from master to slave is

completed. Only the right-hand (MA-) pump can now be programmed.

It is not possible to introduce settings on the SL.

The swop from master to slave can only be made on the master.

Setting. Peak load and main/reserve mode

Current setting blinks.

The other setting blinks.

Setting stored.

Display returns to basic setting .

In the event of a fault, the current error is indicated by E (= Error) and

the Code no.

For code numbers and their meanings see cptr. 8

By pressing the button for at least 1 s the error is acknowledged.
