Etaline, n = 1450 rpm

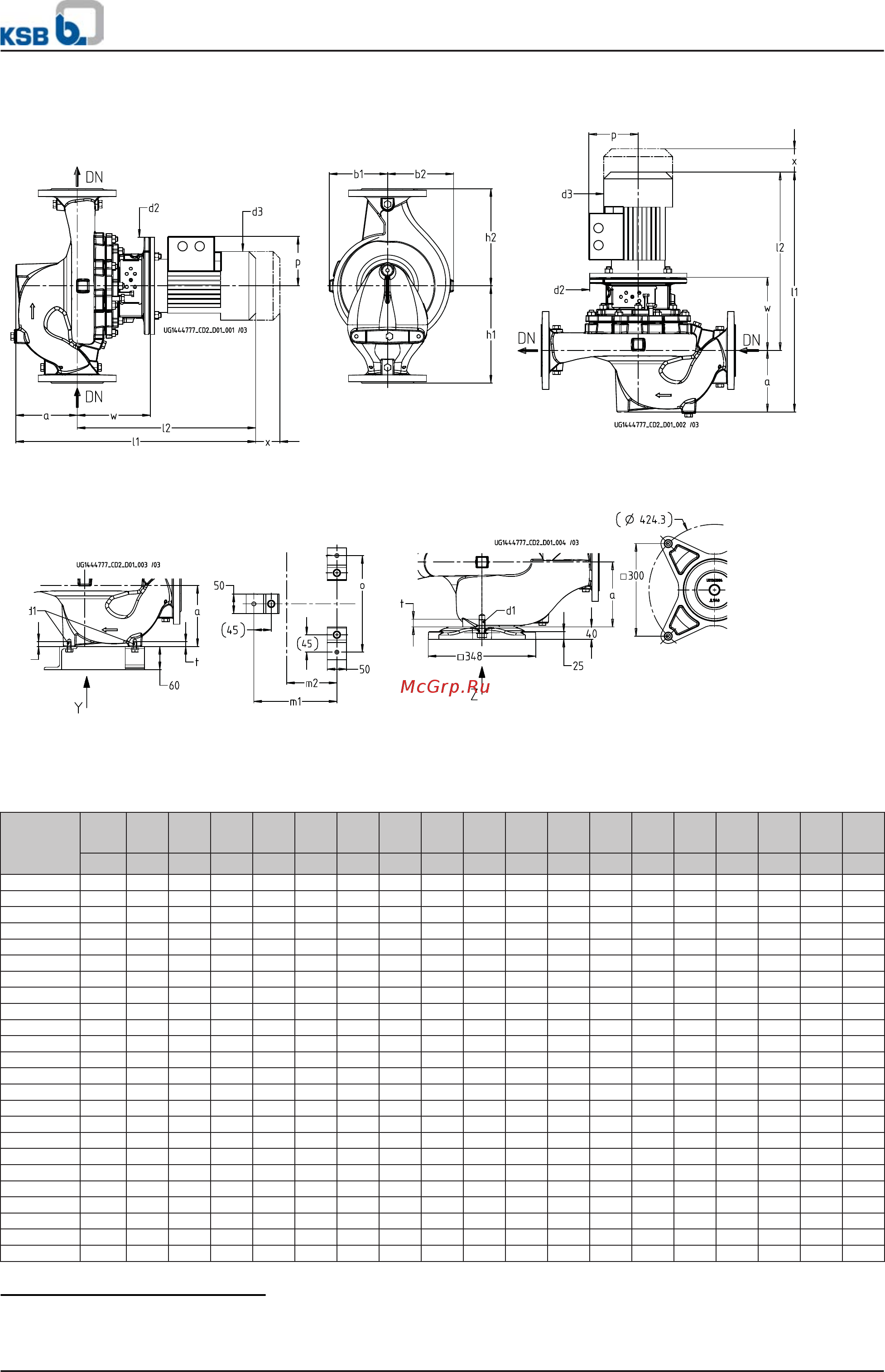

Pump dimensions
Foundation fastening dimensions
Dimensions
Pump size Motor DN
1
17)
a ≈b
1
18)
≈b
2
18)
d
1
d
2
d
3
p h
1
h
2
≈I
1
18)
≈I
2
18)
t ≈x
18)
w m
1
m
2
o
[KW] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
32-32-160 0,25 32 87 119 131 M10 160 145 111 180 160 460 373 12,5 100 136 175 100 190
32-32-160 0,37 32 87 119 131 M10 160 145 111 180 160 460 373 12,5 100 136 175 100 190
32-32-160 0,55 32 87 119 131 M10 200 162 120 180 160 498 411 12,5 100 156 175 100 190
32-32-160 0,75 32 87 119 131 M10 200 162 120 180 160 498 411 12,5 100 156 175 100 190
32-32-160 1,1 32 87 119 131 M10 200 190 128 180 160 525 438 12,5 100 156 175 100 190
32-32-200 0,37 32 100 134 146 M10 160 145 111 250 190 473 373 12,5 100 136 175 100 190
32-32-200 0,55 32 100 134 146 M10 200 162 120 250 190 511 411 12,5 100 156 175 100 190
32-32-200 0,75 32 100 134 146 M10 200 162 120 250 190 511 411 12,5 100 156 175 100 190
32-32-200 1,1 32 100 134 146 M10 200 190 128 250 190 538 438 12,5 100 156 175 100 190
32-32-200 1,5 32 100 134 146 M10 200 190 128 250 190 564 464 12,5 100 156 175 100 190
32-32-200 2,2 32 100 134 146 M10 250 213 135 250 190 617 517 12,5 100 170 175 100 190
40-40-160 0,37 40 114 118 132 M10 160 145 111 180 160 487 373 12,5 100 136 165 90 190
40-40-160 0,55 40 114 118 132 M10 200 162 120 180 160 525 411 12,5 100 156 165 90 190
40-40-160 0,75 40 114 118 132 M10 200 162 120 180 160 525 411 12,5 100 156 165 90 190
40-40-160 1,1 40 114 118 132 M10 200 190 128 180 160 552 438 12,5 100 156 165 90 190
40-40-160 1,5 40 114 118 132 M10 200 190 128 180 160 578 464 12,5 100 156 165 90 190
40-40-250 0,75 40 104 163 173 M10 200 162 120 220 220 519 415 12,5 100 160 175 100 190
40-40-250 1,1 40 104 163 173 M10 200 190 128 220 220 546 442 12,5 100 160 175 100 190
40-40-250 1,5 40 104 163 173 M10 200 190 128 220 220 572 468 12,5 100 160 175 100 190
40-40-250 2,2 40 104 163 173 M10 250 213 135 220 220 625 521 12,5 100 174 175 100 190
40-40-250 3,0 40 104 163 173 M10 250 213 135 220 220 660 556 12,5 100 174 175 100 190
40-40-250 4,0 40 104 163 173 M10 250 234 148 220 220 649 545 12,5 100 174 175 100 190
40-40-250 5,5 40 104 163 173 M10 300 266 167 220 220 714 610 12,5 100 197 175 100 190
50-50-160 0,37 50 134 116 135 M10 160 145 111 250 190 507 373 12,5 100 136 175 100 190
17)
DN = EN 1092-2, PN 16
18)
For the exact motor-related dimensions refer to the general arrangement drawing.
Heating / Air-conditioning / Ventilation
In-line Pumps
70
Etaline / Etaline-R
