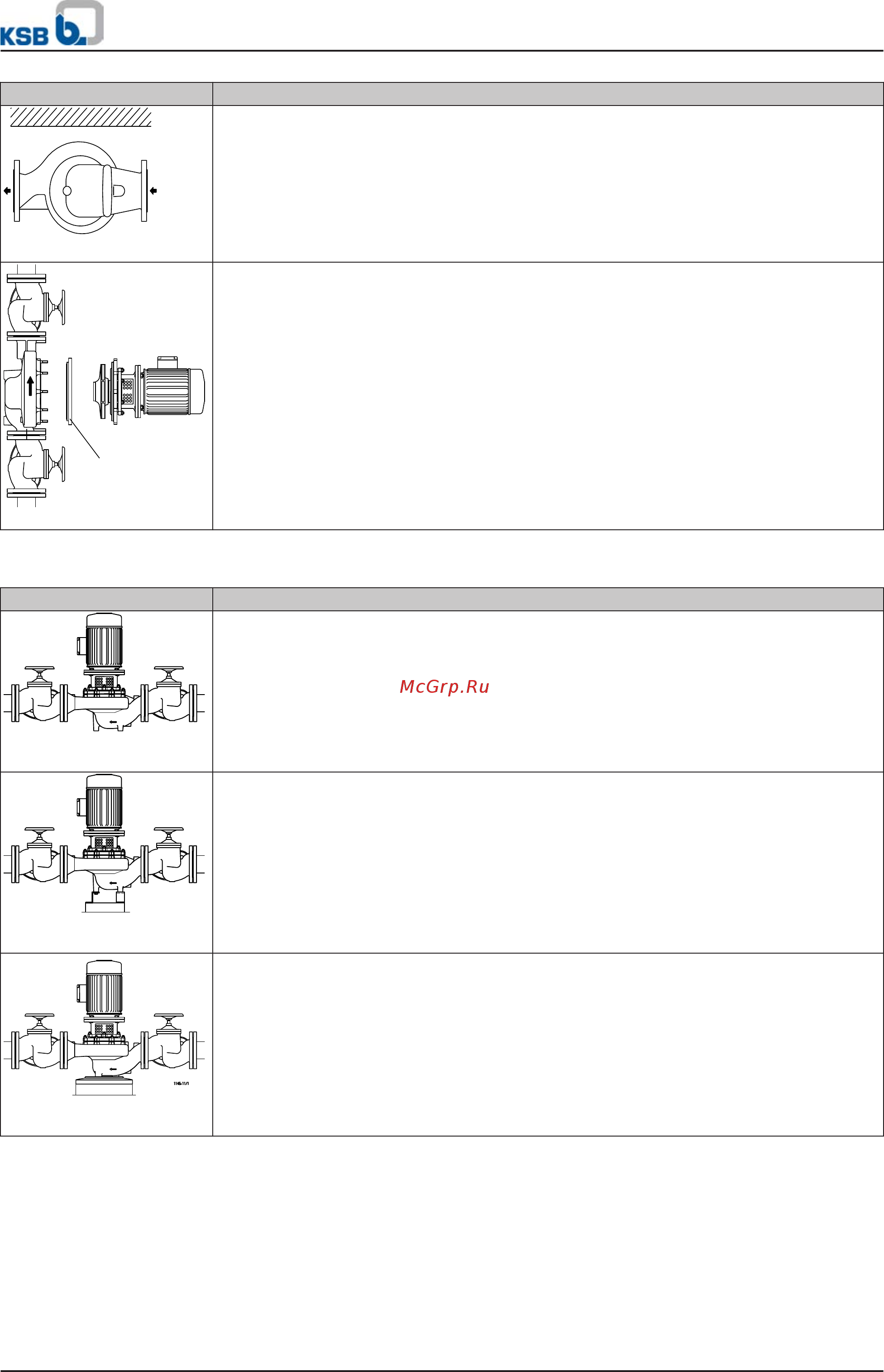

Example drawing Particularities
1146:3/1
Horizontal installation
Horizontal installation (for example under the ceiling)
The volute casing and/or back pull-out unit must be turned by 90° so that the terminal box
remains in its current position on the top.
1
Installation with blind flange
1 = Blind flange (accessories)
If one of the pumps needs to be serviced, the pump chamber can be shut off by a blind flange so
that the system remains operational.
Vertical installation
Example drawing Particularities
Vertical installation without
feet
Fastening without feet
Anchor the piping in close proximity to the pump.
Vertical installation with
angle feet
Fasten sizes 32-32-160 to 100-100-125 with three angle feet (St 37, accessories).
Vertical installation with
pump foot
Fasten sizes 100-100-160 to 200-200-315 with pump foot (grey cast iron, accessories).
Heating / Air-conditioning / Ventilation
In-line Pumps
78
Etaline / Etaline-R
