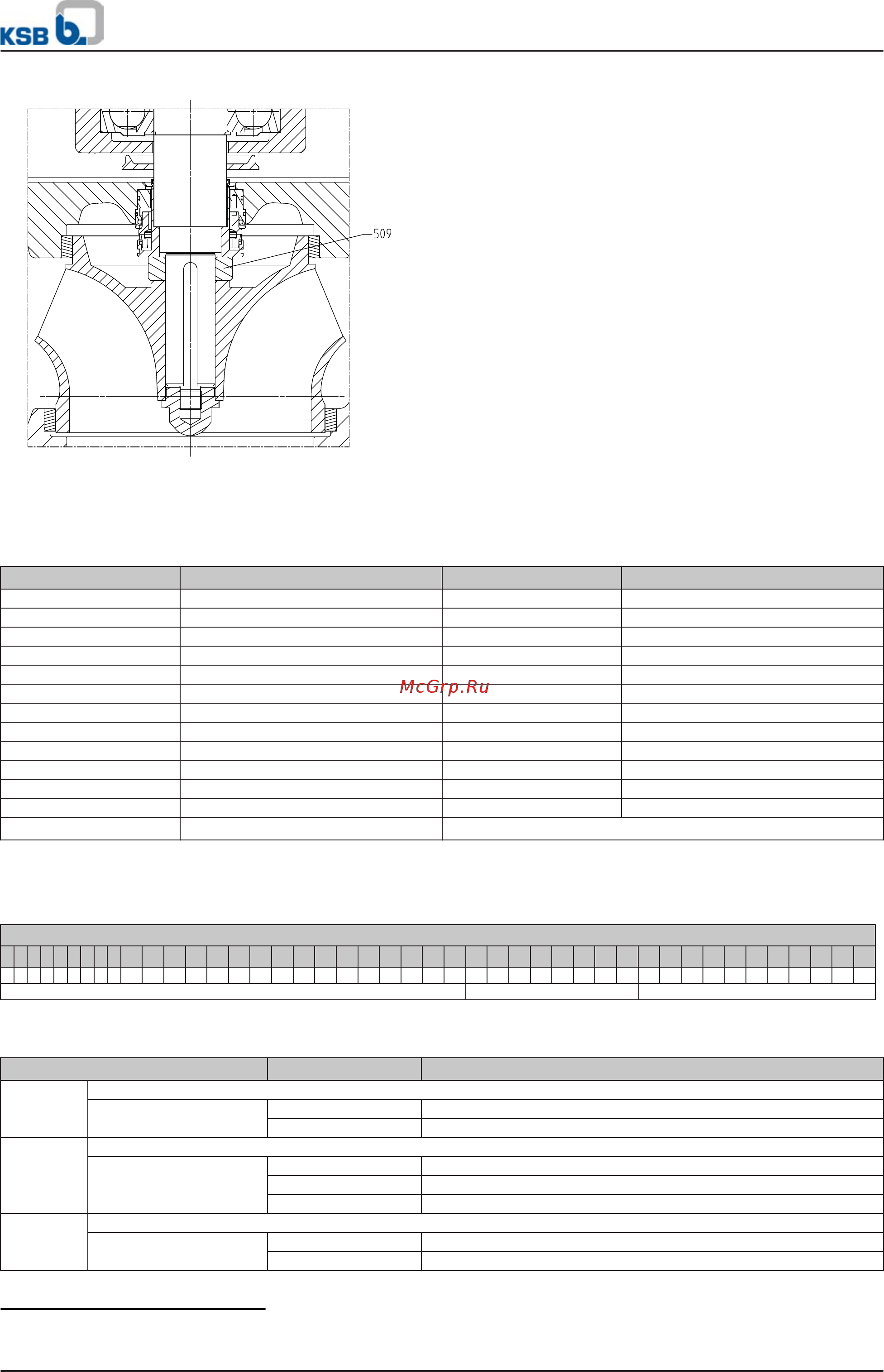

Design with intermediate ring (for sizes 250-250, 250-300,
350-340 only)
List of components
Part No. Description Part No. Description
102 Volute casing 550.11/.18 Disc
161 Casing cover 680 Guard
210 Shaft 720 Fitting
230 Impeller 801 Flanged motor
321 Radial ball bearing 901.18/.30 Hexagon head bolt
330 Bearing bracket 902.01 Stud
400.04/.19 Gasket 903.01/.02/.03/.04/.16 Screw plug
411.01/.02/.03/.04/.16/.22 Joint ring 914.03 Hexagon socket head cap screw
433 Mechanical seal 920.01/.11 Nut
500.18/.21 Ring 922 Impeller nut
502.01/.02 Casing wear ring 932.02/.20 Circlip
507 Thrower 940.01 Key
509
27)
Intermediate ring
Detailed designation (Etaline only)
Product code example
Position
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44
E T L - 0 3 2 - 0 3 2 - 1 6 0 - G G - A A 1 1 D 2 0 0 3 0 4 e x B S I E I E 3 P D 2 E M
See name plate and data sheet See data sheet -
Key to the designation
Position Code Description
1-4 Pump type
ETLY Etaline SYT
ETL- Etaline
5-16 Size
032 Nominal suction nozzle diameter [mm]
032 Nominal discharge nozzle diameter [mm]
160 Nominal impeller diameter [mm]
17 Pump casing material
G JL 1040/A48CL35
S JS 1030
27)
For sizes 250-250, 250-300, 250-340 only
Heating / Air-conditioning / Ventilation
In-line Pumps
Etaline / Etaline-R
87
